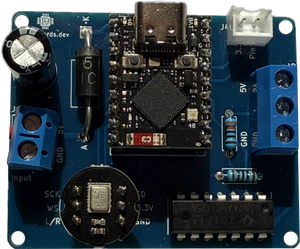

ESP-LED-01
Basic "slim" version - Audio Reactive, light sensor. Dimensions: 45×55 mm
- • ESP32-S3 SuperMini
- • INMP441 I2S microphone
- • 74AHCT125N level shifting (5V Data)
- • PCB dimensions: 45×55 mm
- • Estimated DIY price: 7.00 EUR
ESP-LED Series
A compact family of DIY WLED controllers built around the ESP32-S3 SuperMini - from sound-reactive 5V boards to the new wide-voltage DD4012SA variant.
Audio Reactive
Built-in support for INMP441 I2S mics - realtime music-reactive effects using WLED's audio usermods.
Perfect for music-synced installations and live visualisers.
WLED Integration
Fully compatible with WLED - presets, effects, and seamless Wi‑Fi control via mobile or home automation.
Use existing WLED tools, presets and remote control ecosystems.
Wide Voltage
ESP-LED-03 adds DD4012SA support so you can drive 12V and 24V strips while keeping the ESP on a stable 5V rail.
Short high-current traces and protection parts keep the logic section safe.
Which ESP‑LED is right for you?
Choose by feature: want music-reactive effects, need 12/24V compatibility, or prefer the smallest footprint? Quick badges below help you decide - or jump straight to each board's page for full specs and ordering.
Compact & Minimal Audio Reactive Wide Voltage (5/12/24V)

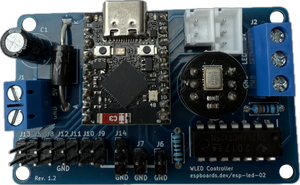

ESP-LED-02
Adds IR sensor, expansion header pins. Dimensions: 65×40 mm
- • IR receiver header
- • GPIO expansion header
- • Improved level shifter wiring
- • PCB dimensions: 65×40 mm
- • Estimated DIY price: 8.00 EUR
Featured

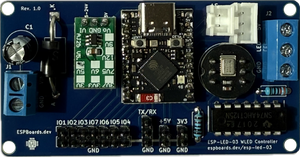

ESP-LED-03
Support for 12/24V in addition to 5V - same features as ESP-LED-02. Dimensions: 77×40 mm
- • DD4012SA MOSFET/driver for 12V/24V strips
- • PCB dimensions: 77×40 mm
- • Estimated DIY price: 9.00 EUR
Pick a board - start building
Each board balances features, size and price. Read the linked posts for detailed assembly notes, wiring diagrams and firmware tips. If you want preassembly or a batch order, use the ordering links below or contact us for a quote.
Get help, order PCBs or request assembly
Short-run PCB orders, partial assembly and firmware flashing available on request. Send a short message with quantity and requirements for a quick quote.
When requesting a quote, helpful details include quantity, desired assembly level (parts-only, partial, full), whether you want firmware flashing, preferred shipping method and any special component substitutions. Quotes are free - typical turnaround for a small run is 1–2 weeks plus PCB fab time.
- • Quantity (e.g. 5 / 10 / 50)
- • Assembly level: parts-only / partial / full
- • Firmware flashing required? (yes/no)
- • Target shipping country / speed

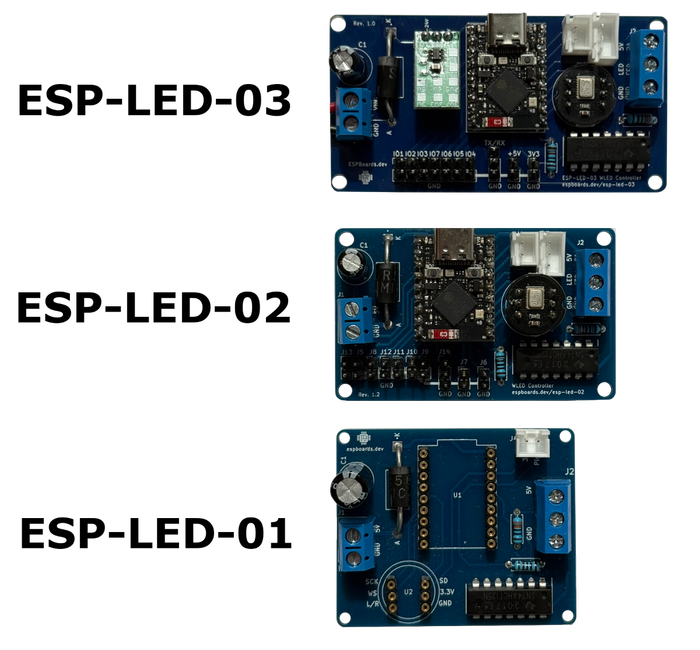

Side-by-Side Comparison
All three ESP-LED controllers feature the same ESP32-S3 SuperMini core and WLED compatibility. The main differences are size, voltage support, and expansion options.
Order
We're preparing preassembled boards, kits and cases - sign up or contact us to join the priority list. For now these options are "Soon…"; if you'd like an early quote, use the contact link above.
Order preassembled
Fully assembled and tested boards with optional firmware. Shipping available worldwide.
Order a kit
A kit with all through-hole components and PCB for easy DIY assembly.
Order case
Compact printed enclosure tailored for ESP‑LED boards (mounting standoffs included).
