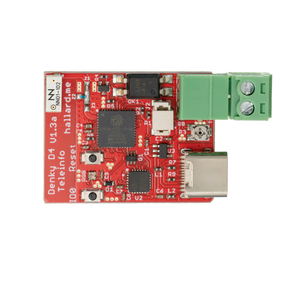

Denky Development Board
Code name: DENKY
Denky development board is based on esp32 microcontroller and uses xtensa architecture. This board has a maximum CPU frequency of 240 MHz and a flash size of 4MB.
About Denky
ESP32 board optimized for IoT control systems - great for DIY automation and connected hardware.
Denky Technical Specifications
🛰️ Connectivity
🧠 Microcontroller
✨ Features
- 40 digital IO pins
- 16 external interrupt pins
- 16 analog input pins
- 20 PWM pins
Denky Pins Mapping Arduino IDE
Below you can find the Denky pinout. This development board provides 40 digital IO pins, out of which 16 can be used as external interrupt pins, 16 as analog input pins and 20 pins have Pulse-Width Modulation (PWM).
| Pin | Analog | Touch | PWM | Other |
|---|---|---|---|---|
| 0 | A11 | T1 | ||
| 1 | PWM | TX | ||
| 2 | A12 | T2 | PWM | |
| 3 | PWM | RX | ||
| 4 | A10 | T0 | PWM | TIC_ENABLE_PIN |
| 5 | PWM | SS | ||
| 8 | PWM | TIC_RX_PIN | ||
| 12 | A15 | T5 | PWM | |
| 13 | A14 | T4 | PWM | |
| 14 | A16 | T6 | PWM | LORA_RESET |
| 15 | A13 | T3 | PWM | |
| 18 | PWM | SCK | ||
| 19 | PWM | MISO | ||
| 21 | PWM | SDA | ||
| 22 | PWM | SCL | ||
| 23 | PWM | MOSI | ||
| 25 | A18 | PWM | DAC1 RGB_LED_PIN LED_BLU_PIN | |
| 26 | A19 | PWM | DAC2 LORA_TX_PIN LED_GRN_PIN | |
| 27 | A17 | T7 | PWM | LORA_RX_PIN LED_RED_PIN |
| 32 | A4 | T9 | PWM | |
| 33 | A5 | T8 | PWM | TIC_RX_PIN |
| 34 | A6 | |||
| 35 | A7 | |||
| 36 | A0 | |||
| 39 | A3 |
Default Tools for Denky
| Bootloader tool | esptool_py |
| Uploader tool | esptool_py |
| Network uploader tool | esp_ota |
| Bootloader address | 0x1000 |
| Flash mode | dio |
| Boot mode | dio |
| Maximum upload size | 1280 Kb (1310720 B) |
| Maximum data size | 320 Kb (327680 B) |
The Denky development board by default uses esptool_py uploader tool, esp_ota network uploader tool for Over-the-air (OTA) uploads and esptool_py bootloader tool. The bootloader starts at address "0x1000". Flash mode and boot mode for Denky development board by default is dio and dio respectively.
