SparkFun ESP32 Thing Plus C
by SparkFun

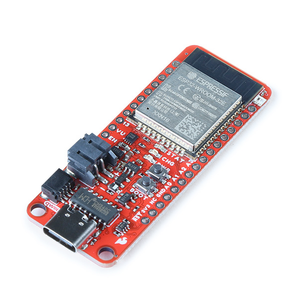

USB-C version of the Thing Plus ESP32 board - great for modern prototyping with Feather-compatible layout.

On this page
SparkFun ESP32 Thing Plus C Pinout
23 pins · 2.54 mm pitch| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 0 | T1 | strapping | touch | |
| 2 | 2 | RGB_BUILTINT2PWM | strapping | touch | |
| 3 | 4 | T0PWM | safe | touch | |
| 4 | 12 | A11T5PWM | strapping | adc · touch | |
| 5 | 13 | LED_BUILTINA12T4PWM | strapping | adc · touch | |
| 6 | 14 | A6T6PWM | strapping | adc · touch | |
| 7 | 15 | SSA8T3PWM | strapping | adc · touch · spi | |
| 8 | 16 | RXPWM | uart | uart | |
| 9 | 17 | TXPWM | uart | uart | |
| 10 | 18 | SCKPWM | safe | spi | |
| 11 | 19 | MISOPWM | safe | spi | |
| 12 | 21 | SDAPWM | safe | i2c | |
| 13 | 22 | SCLPWM | safe | i2c | |
| 14 | 23 | MOSIPWM | safe | spi | |
| 15 | 25 | A1DAC1PWM | safe | adc · dac | |
| 16 | 26 | A0DAC2PWM | safe | adc · dac | |
| 17 | 27 | A10T7PWM | safe | adc · touch | |
| 18 | 32 | A7T9PWM | safe | adc · touch | |
| 19 | 33 | A9T8PWM | safe | adc · touch | |
| 20 | 34 | A2 | strapping | adc | |
| 21 | 35 | A5 | strapping | adc | |
| 22 | 36 | A4 | strapping | adc | |
| 23 | 39 | A3 | strapping | adc |
Start with these
13 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
10 pins · 9 things to knowT1GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping
Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.
RGB_BUILTINGPIO2 Bootstrapping pin; internal pull-down. Any level boots normally from flash, but it must be LOW or floating (with GPIO0 LOW) to enter download mode. Strapping
If held HIGH at reset, the chip cannot enter download mode, so flashing fails.
A11GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping
Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash, and a module with 3.3V flash then fails to boot. espefuse set-flash-voltage 3.3V makes its level irrelevant.
LED_BUILTINGPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG
Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.
A6GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG
Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.
SSGPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping
Keep HIGH during boot (internal PU); if LOW at reset, the ROM boot log on U0TXD is silenced and the SDIO slave timing changes.
A2GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other
Cannot be used as output (no drive capability); only suitable for analog/digital input.
A5GPIO35A3GPIO39 Input-only GPIOs with ADC1 channels - no output driver Other
Cannot be used as output; only suitable for input.
- A5Input-only GPIO (no output driver); ADC1 channel 7.
- A3Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN.
A4GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other
Cannot be used as output; only suitable for input (e.g., analog read).
The SparkFun ESP32 Thing Plus C pinout brings out 23 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.
For peripherals, I²C is mapped to SDA on GPIO21 and SCL on GPIO22; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO17 and GPIO16 cover serial logging and flashing.
On the analog side there are 13 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.
If you want zero surprises, T0, RX, TX, SCK and 9 more are free of any such role - the safest first picks. 10 of the exposed pins carry boot-time or system duties on the ESP32 (T1, RGB_BUILTIN, A11 and 7 more).
Getting started
flash your first firmware in ~2 minutesBoard: ESP32 Dev Module Flash Size: 16MB (128Mb) Flash Mode: DIO Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS) Upload Speed: 921600
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
pinMode(4, OUTPUT);
}
void loop() {
digitalWrite(4, HIGH); delay(500);
digitalWrite(4, LOW); delay(500);
}[env:esp32thing_plus_c]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600esp32dev - or type it after board =.esp32:
board: esp32dev
variant: esp32
framework:
type: esp-idf
# blink - GPIO4
output:
- platform: gpio
pin: 4
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32dev (same ids as PlatformIO).esptool.py --chip esp32 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x1000 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Specifications
ESP32 · 58.4 × 22.9 mm · vs other ESP32 chips →Dimensions
About this board
At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.
Expect to pay about $29.95 - above the ~$20 typical for ESP32 boards.
Onboard you'll find a microSD slot, a Qwiic connector, an addressable RGB LED (GPIO2), a battery fuel gauge (MAX17048), battery charging (MCP73831) via JST-PH 2.0, status LEDs (Power, Charge, Status) and Reset/Boot buttons.
