SparkFun ESP32 Thing Plus

Feather-compatible ESP32 board from SparkFun - ideal for professional-grade prototyping and STEM use.

Micro-USB

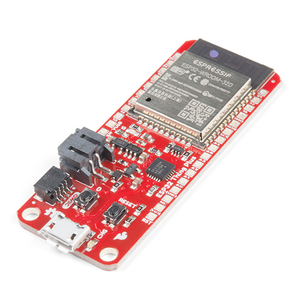

SparkFun ESP32 Thing Plus board
64.8 × 22.9 mm
ESP32
MCU
240MHz
clock
16MB
flash
520KB
SRAM
22· 13 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

SparkFun ESP32 Thing Plus Pinout

22 pins · 2.54 mm pitch

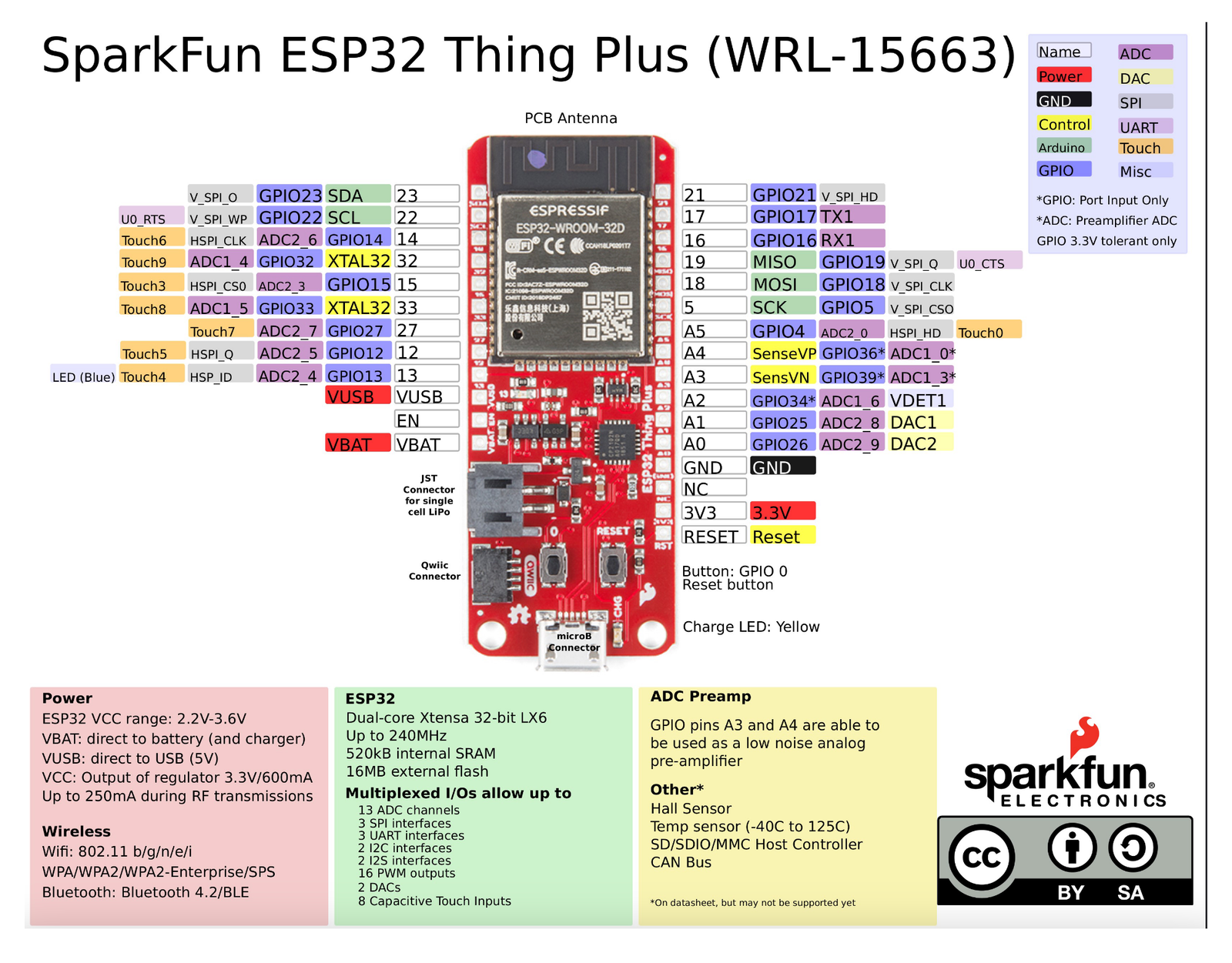

SparkFun ESP32 Thing Plus pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
10T1strappingtouch
22T2PWMstrappingtouch
34A5T0PWMsafeadc · touch
45SCKPWMstrappingspi
512A11T5PWMstrappingadc · touch
613LED_BUILTINA12T4PWMstrappingadc · touch
714A6T6PWMstrappingadc · touch
815A8T3PWMstrappingadc · touch
916RXPWMuartuart
1017TXPWMuartuart
1118MOSIPWMsafespi
1219MISOPWMsafespi
1322SCLPWMsafei2c
1423SDAPWMsafei2c
1525A1DAC1PWMsafeadc · dac
1626A0DAC2PWMsafeadc · dac
1727A10T7PWMsafeadc · touch
1832A7T9PWMsafeadc · touch
1933SSA9T8PWMsafeadc · touch · spi
2034A2strappingadc
2136A4strappingadc
2239A3strappingadc
22 GPIOs broken out 12 free · 10 need care · 0 to avoid

Start with these

12 pins with no boot or system involvement
A5GPIO4RXGPIO16TXGPIO17MOSIGPIO18MISOGPIO19SCLGPIO22SDAGPIO23A1GPIO25A0GPIO26A10GPIO27A7GPIO32SSGPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

10 pins · 10 things to know
T1GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

T2GPIO2 Bootstrapping pin (must be low or floating at reset); internal pull-down. Strapping

If driven HIGH on reset (while IO0 is LOW), selects an unsupported SDIO boot mode, causing boot failure.

SCKGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Must be HIGH during boot; if pulled LOW at reset, alters SDIO slave timing and may prevent normal boot.

A11GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping

Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash mode, causing flash brownout if 3.3V flash is used.

LED_BUILTINGPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG

Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.

A6GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG

Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.

A8GPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping

Keep HIGH during boot (internal PU); if LOW on reset, bootloader log is silenced and boot mode may change.

A2GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other

Cannot be used as output (no drive capability); only suitable for analog/digital input.

A4GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other

Cannot be used as output; only suitable for input (e.g., analog read).

A3GPIO39 Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN. Other

Cannot be used as output; only suitable for input.

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The SparkFun ESP32 Thing Plus pinout brings out 22 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.

For peripherals, I²C is mapped to SDA on GPIO23 and SCL on GPIO22; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO17 and GPIO16 cover serial logging and flashing.

On the analog side there are 13 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.

If you want zero surprises, A5, RX, TX, MOSI and 8 more are free of any such role - the safest first picks. 10 of the exposed pins carry boot-time or system duties on the ESP32 (T1, T2, SCK and 7 more).

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Uses a CP2104 bridge - install the CP210x driver if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO4 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "16MB (128Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "16M Flash (3MB APP/9.9MB FATFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 16MB (128Mb)
Flash Mode: DIO
Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
  pinMode(4, OUTPUT);
}
void loop() {
  digitalWrite(4, HIGH); delay(500);
  digitalWrite(4, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:esp32thing_plus]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO4
output:
  - platform: gpio
    pin: 4
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32 · 64.8 × 22.9 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 16MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 LE
Antenna
PCB
I/O
GPIO · ADC
22 · 13
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
Micro-USB
Serial
CP2104
Boot address
0x1000
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

22.9 mm64.8 mm
64.8 × 22.9 mm · pin pitch 2.54 mm
The SparkFun ESP32 Thing Plus uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

Expect to pay about $24.95 - above the ~$20 typical for ESP32 boards.

Onboard you'll find a microSD slot, a Qwiic connector, battery charging (MCP73831) via JST-PH 2.0 and Reset/Boot buttons.
