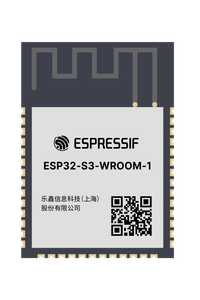

    ESP32-S3-WROOM-1 image

    ESP32-S3-WROOM-1

    active esp32-s3 WROOM

    Dual-core Wi-Fi + Bluetooth LE MCU with neural network and signal processing acceleration, ideal for AIoT applications such as wake word detection, face recognition, and smart devices.

    Embedded Chip(s):
    • ESP32-S3
    • ESP32-S3R2
    • ESP32-S3R8

    🧬 Variants ⚡ Tech Specs 📄 Datasheet 📐 Dimensions

    ESP32-S3-WROOM-1 Module Variants

    ESP32-S3-WROOM-1-N4

    Base Flash: 4 MB PSRAM
    • Basic variant
    • 4MB flash

    ESP32-S3-WROOM-1-N8

    Flash: 8 MB PSRAM
    • Enhanced flash variant
    • 8MB flash

    ESP32-S3-WROOM-1-N16

    Flash: 16 MB PSRAM
    • Large flash size variant
    • 16MB flash

    ESP32-S3-WROOM-1-H4

    Flash: 4 MB PSRAM 🔥 High Temp
    • High temperature variant
    • 4MB flash

    ESP32-S3-WROOM-1-N4R2

    Flash: 4 MB PSRAM: 2 MB
    • Added 2MB PSRAM variant
    • 4MB flash
    • 2MB PSRAM

    ESP32-S3-WROOM-1-N8R2

    Flash: 8 MB PSRAM: 2 MB
    • Enhanced flash with 2MB PSRAM variant
    • 8MB flash
    • 2MB PSRAM

    ESP32-S3-WROOM-1-N16R2

    Flash: 16 MB PSRAM: 2 MB
    • Large flash size with 2MB PSRAM variant
    • 16MB flash
    • 2MB PSRAM

    ESP32-S3-WROOM-1-N4R8

    Flash: 4 MB PSRAM: 8 MB
    • Basic with 8MB PSRAM variant
    • 4MB flash
    • 8MB PSRAM

    ESP32-S3-WROOM-1-N8R8

    Flash: 8 MB PSRAM: 8 MB
    • Enhanced flash with 8MB PSRAM variant
    • 8MB flash
    • 8MB PSRAM

    ESP32-S3-WROOM-1-N16R8

    Flash: 16 MB PSRAM: 8 MB
    • Large flash size with 8MB PSRAM variant
    • 16MB flash
    • 8MB PSRAM

    ESP32-S3-WROOM-1-N16R16VA

    Top Flash: 16 MB PSRAM: 16 MB
    • Large flash size with 16MB PSRAM variant
    • 16MB flash
    • 16MB PSRAM

    The ESP32-S3-WROOM-1 module comes in various configurations to suit different application needs:

    • N4: 4MB flash, no PSRAM - Basic variant for general applications.
    • N8: 8MB flash, no PSRAM - Enhanced variant for applications requiring more flash storage.
    • N16: 16MB flash, no PSRAM - Large flash size variant for data-intensive applications.
    • H4: 4MB flash, no PSRAM - High temperature variant for extreme environments.
    • N4R2: 4MB flash, 2MB PSRAM - Basic variant with added PSRAM for memory-intensive tasks.
    • N8R2: 8MB flash, 2MB PSRAM - Enhanced variant with added PSRAM for better performance.
    • N16R2: 16MB flash, 2MB PSRAM - Large flash size with PSRAM for high-performance applications.
    • N4R8: 4MB flash, 8MB PSRAM - Basic variant with significant memory for demanding tasks.
    • N8R8: 8MB flash, 8MB PSRAM - Enhanced variant with substantial memory for complex applications.
    • N16R8: 16MB flash, 8MB PSRAM - Large flash size with ample memory for advanced applications.
    • N16R16VA: 16MB flash, 16MB PSRAM - Top variant with maximum flash and memory for the most demanding applications.

    Note: Variants may have different features, flash sizes, and PSRAM configurations. Check the individual module pages for detailed specifications.

    About ESP32-S3-WROOM-1

    ESP32-S3-WROOM-1 is a dual-core Wi-Fi + Bluetooth LE MCU module with neural network and signal processing acceleration, ideal for AIoT and smart device applications.

    • Size: 18 x 25.5 x 3.1 mm
    • Wi-Fi (2.4 GHz), Bluetooth LE
    • Neural network and signal processing acceleration
    • Multiple flash and PSRAM options
    • Wide operating temperature range: -40°C ~ 85°C
    • Integrated PCB antenna
    • Perfect for AIoT, smart home, and industrial devices

    ESP32-S3-WROOM-1 Technical Specifications

    🛰️ Connectivity

    Antenna PCB antenna
    WiFi
    BLE

    🧠 Microcontroller

    GPIO Count 41
    Flash Size 4 / 8 / 16 MB
    PSRAM Size 2 / 8 / 16 MB
    Operating Temperature -40°C ~ 85°C
    View Full Datasheet

    ESP32-S3-WROOM-1 Dimensions

    Width 18 mm
    Length 25.5 mm
    Height 3.1 mm
