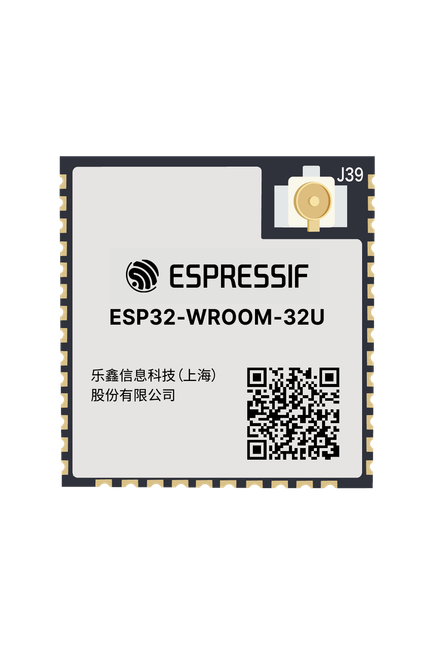

ESP32-WROOM-32U

ESP32-WROOM-32U is a Wi-Fi + Bluetooth + Bluetooth LE module based on the ESP32-D0WD chip, featuring an IPEX connector for external antennas.

• 2.4 GHz Wi-Fi and Bluetooth Classic/LE
• Multiple flash and PSRAM options
• Operating temperature: -40°C ~ 85°C
• Size: 18 x 19.2 x 3.2 mm
• IPEX antenna connector for flexible placement
• Ideal for industrial and consumer IoT

The ESP32-WROOM-32U is designed for applications where you need the flexibility of an external antenna. It retains all the powerful features of the ESP32-D0WD chip, including dual-core processing, Wi-Fi, and Bluetooth connectivity, but adds an IPEX connector for attaching high-gain or specialized antennas. This is particularly useful in environments where signal strength and range are critical, such as industrial settings or outdoor deployments.

Compared to the standard WROOM-32D, the U variant is better suited for projects that require long-range connectivity or penetration through obstacles, like metal enclosures or thick walls. It’s also ideal for applications where you want to optimize wireless performance by selecting the best antenna for your specific use case.

The module is available in several variants:

• ESP32-WROOM-32U-N4: The basic variant with 4MB of flash, suitable for most IoT applications.
• ESP32-WROOM-32U-N8: An enhanced version with 8MB of flash, providing more storage for larger applications.
• ESP32-WROOM-32U-N16: The top-tier variant with 16MB of flash, ideal for applications that require extensive firmware or data storage.
• ESP32-WROOM-32U-H4: A high-temperature variant with 4MB of flash, designed for industrial applications where reliability in extreme heat is essential.

In summary, the ESP32-WROOM-32U is your go-to module when you need the robust features of the ESP32-D0WD chip, but with the added flexibility of an external antenna. Whether you’re building a smart home device, an industrial controller, or a consumer electronics product, this module delivers the connectivity and performance you need.
