Not recommended for new designs - prefer a newer module for future projects.
ESP32 Boards/ ESP32/ ESP32-WROVER-IB

ESP32-WROVER-IB

NRND WROVER

ESP32-WROVER-IB is identical to ESP32-WROVER-B except for the antenna: it has a connector for an external antenna instead of the on-board PCB antenna, so it needs no antenna keepout zone on the base board. It is NRND.

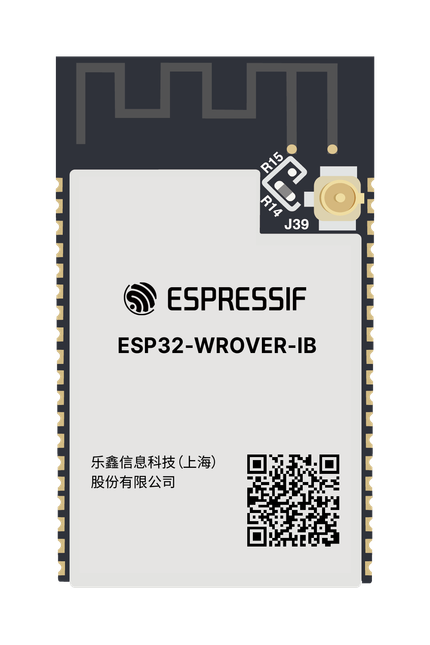

ESP32-WROVER-IB module
18 × 31.4 mm
16MB
Flash
8MB
PSRAM
24
GPIOs
18×31.4mm
Size

Specifications

Datasheet ↗

Module

FamilyWROVER
Embedded chipESP32-D0WD
GPIOs24 (datasheet: up to 30; GPIO6-11 are wired to the flash)
Module pins38
AntennaExternal antenna connector (U.FL / MHF I compatible)
Dev boardESP32-DevKitC
Operating temp-40°C ~ 85°C
Dimensions18 × 31.4 × 3.3 mm

Memory

Flash4 / 8 / 16 MB
PSRAMUp to 8 MB

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth4.2 Classic + LE

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range NRND not recommended for new designs
VariantFlashPSRAMTags
ESP32-WROVER-IB-N4R84 MB8 MBBase NRND
ESP32-WROVER-IB-N8R88 MB8 MBNRND
ESP32-WROVER-IB-N16R816 MB8 MBTop NRND

About the ESP32-WROVER-IB

ESP32-WROVER-IB is the external-antenna version of ESP32-WROVER-B: the same ESP32-D0WD chip, memory options, pin layout, size and temperature rating, with an antenna connector in place of the PCB antenna. Espressif lists it as Not Recommended for New Designs (NRND).

  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 BR/EDR + Bluetooth LE
  • 24 usable GPIOs on a 38-pin footprint (GPIO6-11 are also on pins 17-22 but wired to the flash)
  • 4, 8 or 16 MB flash, 8 MB PSRAM on every variant
  • Operating temperature: -40°C ~ 85°C
  • Size: 18 x 31.4 x 3.3 mm
  • External antenna connector, compatible with Hirose U.FL and I-PEX MHF I

The ESP32-WROVER-IB variants differ only in flash size. All have 8 MB Quad SPI PSRAM and are rated -40°C ~ 85°C. The whole module family is NRND.

  • ESP32-WROVER-IB-N4R8: 4 MB flash, 8 MB PSRAM.
  • ESP32-WROVER-IB-N8R8: 8 MB flash, 8 MB PSRAM.
  • ESP32-WROVER-IB-N16R8: 16 MB flash, 8 MB PSRAM.

The connector is the first-generation type, compatible with Hirose U.FL, I-PEX MHF I and Amphenol AMC connectors.
