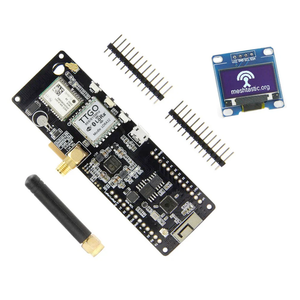

T-Beam

Development Board

Code name: TBeam

ESP32

T-Beam is a development board based on the ESP32 microcontroller using XTENSA architecture.

This board features a maximum CPU frequency of 240 MHz and 4MB flash memory.

About T-Beam

ESP32 board with LoRa and GPS - excellent for remote tracking, navigation, and long-range IoT.

Technical Specifications

Complete technical specification details for T-Beam

Connectivity

WiFi 802.11 b/g/n (2.4 GHz)

Bluetooth 4.2

BLE 4.2

Microcontroller

Model esp32

Clock Speed 240 MHz

Flash Size 4MB

Architecture xtensa

✨ Features & Pins

Digital IO 20

Analog Input 16

PWM 17

Interrupts 16

Download Full Datasheet

Quick Setup

Copy-paste configs for T-Beam - auto‑generated from this board's exact hardware specs.

ESP32 240 MHz 4MB DIO Xtensa

In Arduino IDE 2 select Tbeam from the esp32 by Espressif package. In PlatformIO use board = esp32dev. ESP32 · 240 MHz · 4MB · DIO.

Tools menu settings

Board (select in Arduino IDE) Tbeam

CPU Frequency 240 MHz

Flash Size 4MB

Flash Mode DIO

Upload Speed 921600

Architecture Xtensa

In Arduino IDE 2, open Boards Manager, search "esp32" by Espressif and install it. Then go to Tools → Board and select "Tbeam" for the T-Beam.

platformio.ini


[env:t-beam]
platform  = espressif32
board     = esp32dev
framework = arduino

; Exact hardware config for T-Beam
board_build.mcu        = esp32
board_build.f_cpu      = 240000000L
board_build.flash_size = 4MB
board_build.flash_mode = dio
board_upload.flash_size = 4MB

The board value is a close generic match - check PlatformIO board registry for an exact fit.

esp32: block (YAML)


esp32:
  board: esp32dev
  framework:
    type: arduino   # or "esp-idf"

# T-Beam - 240 MHz ESP32
# Flash: 4MB | USB: N/A

Paste into your device's .yaml. See ESPHome ESP32 docs for full options.

esptool.py - flash command


esptool.py \
  --chip esp32 \
  --baud 921600 \
  write_flash \
    --flash_mode dio \
    --flash_size 4MB \
    0x1000 bootloader.bin \
    0x8000    partitions.bin \
    0xe000    boot_app0.bin \
    0x10000   firmware.bin

Install: pip install esptool - replace firmware.bin with your binary - bootloader at 0x1000

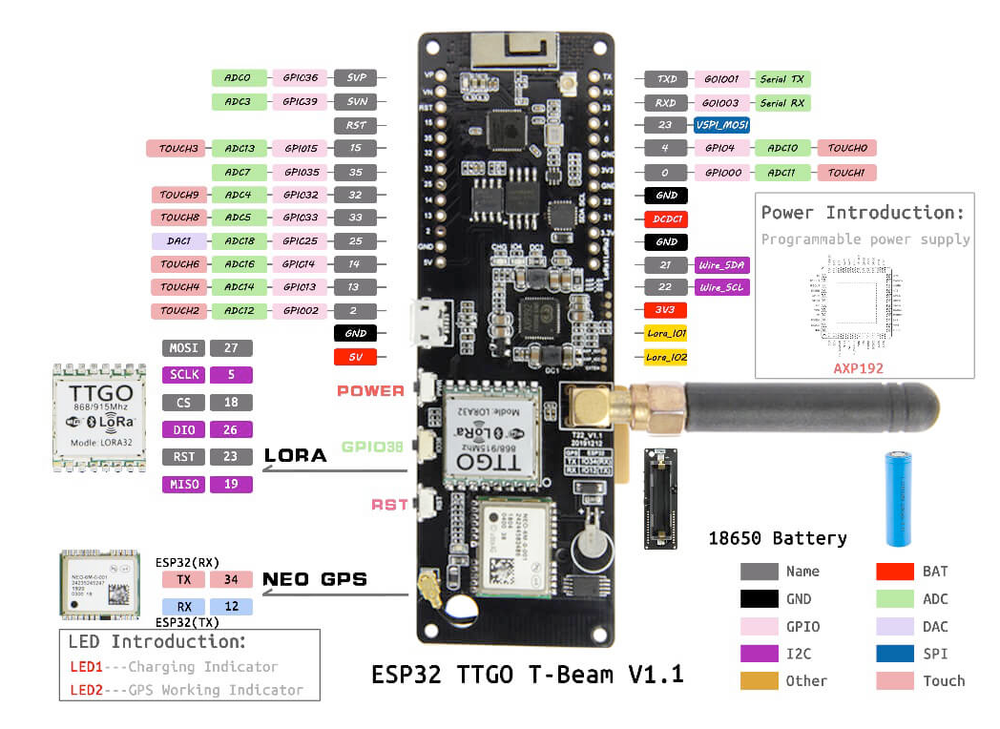

T-Beam Pinout Diagram

Complete pin reference for T-Beam

Useful Links

Datasheets and resources for T-Beam

Board Datasheet

Technical specifications

ESP32 Datasheet

Microcontroller reference

Pin Mappings

Complete pinout and GPIO mapping for T-Beam

Digital I/O Pins

Interrupt Pins

Analog Inputs

PWM Pins

Pin	Analog	Touch	PWM	Other
0	A11	T1
1			PWM	TX
2	A12	T2	PWM
3			PWM	RX
4	A10	T0	PWM
5			PWM	LORA_SCK SCK
13	A14	T4	PWM
14	A16	T6	PWM	LED_BUILTIN
18			PWM	LORA_CS SS
19			PWM	LORA_MISO MISO
21			PWM	SDA
22			PWM	SCL
23			PWM	LORA_RST
25	A18		PWM	DAC1
26			PWM	LORA_IRQ
27			PWM	LORA_MOSI MOSI
32	A4	T9	PWM	LORA_IO2
33	A5	T8	PWM	LORA_IO1
34	A6
35	A7
36	A0
39	A3			KEY_BUILTIN

Legend

A0 Analog input

T0 Touch sensor

PWM PWM capable

RX/TX Serial pins

LED Built-in LED

# Pin number

Default Tools & Configuration

Build and upload settings for T-Beam

Setting	Value
Bootloader tool	esptool_py
Uploader tool	esptool_py
Network uploader tool	esp_ota
Bootloader address	`0x1000`
Flash mode	dio
Boot mode	dio
Maximum upload size	1280 KB (1310720 bytes)
Maximum data size	320 KB (327680 bytes)
