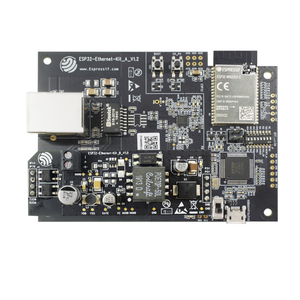

Espressif ESP32-Ethernet-Kit

Development Board

Code name: ESP32_ETHERNET_KIT

Espressif ESP32-Ethernet-Kit is a development board based on the ESP32 microcontroller using XTENSA architecture.

This board features a maximum CPU frequency of 240 MHz and 4MB flash memory.

About Espressif ESP32-Ethernet-Kit

The ESP32-Ethernet-Kit is an ESP32-based development board featuring an Ethernet interface. It is designed for industrial IoT, networked embedded applications, and smart home automation. The board supports both Ethernet and Wi-Fi connectivity, multiple peripheral interfaces, and expansion options, making it an excellent choice for wired networking solutions.

Where to Buy Espressif ESP32-Ethernet-Kit

Starting from

$50 per unit

Amazon.com Ships worldwide

View Price

Amazon.de Ships to EU

View Price

Prices are subject to change. We earn from qualifying purchases as an Amazon Associate.

Technical Specifications

Complete technical specification details for Espressif ESP32-Ethernet-Kit

Connectivity

WiFi 802.11 b/g/n (2.4 GHz)

Bluetooth 4.2

BLE 4.2

Microcontroller

Model esp32

Clock Speed 240 MHz

Flash Size 4MB

Architecture xtensa

✨ Features & Pins

Digital IO 30

Analog Input 12

PWM 10

Interrupts 16

Download Full Datasheet

Quick Setup

Copy-paste configs for Espressif ESP32-Ethernet-Kit - auto‑generated from this board's exact hardware specs.

ESP32 240 MHz 4MB DIO Xtensa

In Arduino IDE 2 select Esp32 Ethernet Kit from the esp32 by Espressif package. In PlatformIO use board = esp32dev. ESP32 · 240 MHz · 4MB · DIO.

Tools menu settings

Board (select in Arduino IDE) Esp32 Ethernet Kit

CPU Frequency 240 MHz

Flash Size 4MB

Flash Mode DIO

Upload Speed 921600

Architecture Xtensa

In Arduino IDE 2, open Boards Manager, search "esp32" by Espressif and install it. Then go to Tools → Board and select "Esp32 Ethernet Kit" for the Espressif ESP32-Ethernet-Kit.

platformio.ini


[env:]
platform  = espressif32
board     = esp32dev
framework = arduino

; Exact hardware config for Espressif ESP32-Ethernet-Kit
board_build.mcu        = esp32
board_build.f_cpu      = 240000000L
board_build.flash_size = 4MB
board_build.flash_mode = dio
board_upload.flash_size = 4MB

The board value is a close generic match - check PlatformIO board registry for an exact fit.

esp32: block (YAML)


esp32:
  board: esp32dev
  framework:
    type: arduino   # or "esp-idf"

# Espressif ESP32-Ethernet-Kit - 240 MHz ESP32
# Flash: 4MB | USB: N/A

Paste into your device's .yaml. See ESPHome ESP32 docs for full options.

esptool.py - flash command


esptool.py \
  --chip esp32 \
  --baud 921600 \
  write_flash \
    --flash_mode dio \
    --flash_size 4MB \
    0x1000 bootloader.bin \
    0x8000    partitions.bin \
    0xe000    boot_app0.bin \
    0x10000   firmware.bin

Install: pip install esptool - replace firmware.bin with your binary - bootloader at 0x1000

Espressif ESP32-Ethernet-Kit Pinout Diagram

Complete pin reference for Espressif ESP32-Ethernet-Kit

The ESP32-Ethernet-Kit pinout includes GPIOs optimized for Ethernet and peripheral communication. It provides power pins (5V, 3.3V, and GND), UART (TX, RX), I2C (SDA, SCL), SPI (MISO, MOSI, SCK, SS), and dedicated RMII pins for Ethernet PHY connectivity. The board also supports PWM, ADC, and multiple expansion headers for external modules.

Useful Links

Datasheets and resources for Espressif ESP32-Ethernet-Kit

Board Datasheet

Technical specifications

ESP32 Datasheet

Microcontroller reference

Pin Mappings

Complete pinout and GPIO mapping for Espressif ESP32-Ethernet-Kit

Digital I/O Pins

Interrupt Pins

Analog Inputs

PWM Pins

Pin	Analog	Touch	PWM	Other
0	A11	T1	PWM
1			PWM	TX
2	A12	T2	PWM
3			PWM	RX
4	A10	T0	PWM
5			PWM
12	A15	T5	PWM
13	A14	T4	PWM
14	A16	T6	PWM
15	A13	T3	PWM
16			PWM
17			PWM
18			PWM
19			PWM
21			PWM
22			PWM
23			PWM
25	A18		PWM	DAC1
26	A19		PWM	DAC2
27	A17	T7	PWM
32	A4	T9	PWM
33	A5	T8	PWM
34	A6
35	A7

Legend

A0 Analog input

T0 Touch sensor

PWM PWM capable

RX/TX Serial pins

LED Built-in LED

# Pin number

Default Tools & Configuration

Build and upload settings for Espressif ESP32-Ethernet-Kit

Setting	Value
Bootloader tool	esptool_py
Uploader tool	esptool_py
Network uploader tool	esp_ota
Bootloader address	`0x1000`
Flash mode	dio
Boot mode	dio
Maximum upload size	1920 KB (1966080 bytes)
Maximum data size	320 KB (327680 bytes)
