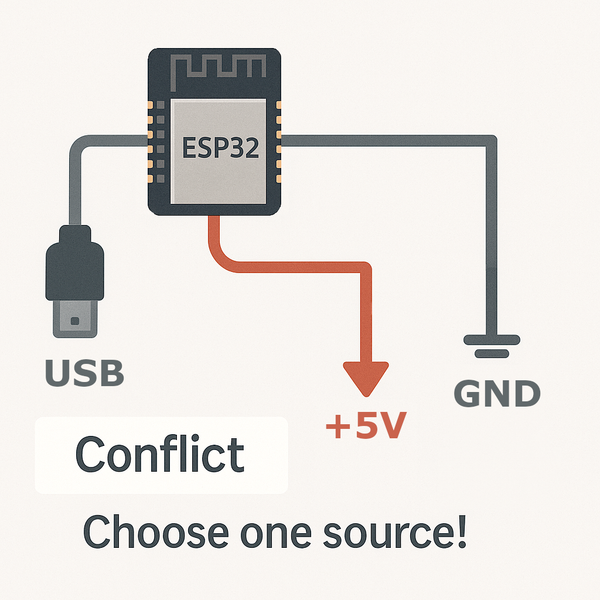

ESP32 Power Path Conflict

Common Causes

🔋

Shared Power Supply with High-Current Peripherals

Devices like motors, servos, or high-brightness LEDs can introduce voltage drops or noise that destabilize the ESP32 when powered from the same supply.

🔄

Improper Power Routing or Backfeeding

Powering peripherals through the ESP32’s onboard regulator or USB port can exceed current ratings and trigger resets or regulator shutdown.

⚠️

Ground Loops or Inconsistent Ground Paths

Inadequate or unbalanced ground connections between ESP32 and peripherals can cause erratic behavior due to voltage reference shifts.

Symptoms

ESP32 Resets When Peripherals Activate

The board runs fine until a motor or sensor powers up, then resets, often with a brownout message or boot loop.

Serial Output Stops When Peripheral Draw Increases

The ESP32’s USB serial communication halts or glitches during peak peripheral activity due to voltage instability.

Board Runs When Idle, Fails Under Load

Sketch uploads and runs without peripherals, but becomes unstable when the full system is powered and active.

Solutions

Use a Separate Power Supply for Peripherals

Power motors, servos, and other high-draw devices from a dedicated supply with its own regulator, and connect grounds with care. See: ESP32 External Power Guide

Avoid Powering Peripherals from the ESP32

Do not power heavy components from 3.3V or 5V pins on the ESP32 board. These regulators are not designed for external loads.

Add Bulk Capacitors Near Peripherals

Place 100–470µF capacitors close to the load to absorb inrush currents and reduce noise during activation.

Connect Grounds Properly

Ensure all devices share a solid, low-resistance ground connection to avoid voltage reference mismatches or noise issues.

More Details

ESP32 Power Path Conflict #

If your ESP32 works fine when idle, but resets or crashes when motors, sensors, or LEDs turn on — you likely have a power path conflict.

The ESP32 requires clean, stable voltage to operate. Powering high-current peripherals from the same supply (especially through the board’s voltage regulator) can introduce voltage drops, noise, or overcurrent that destabilize the system.

Common Scenarios #

ESP32 resets when a motor starts spinning
Serial output glitches or halts when a sensor activates
Board only works reliably when peripherals are disconnected
Everything powers on, but performance is erratic or fails under load

What’s Happening #

🔄 Shared Supply Overload #

Powering motors, servos, or bright LEDs from the same USB port or onboard 3.3V regulator can exceed current limits. This causes:

Brownouts (rst:0xf (BROWNOUT_RST))
USB disconnects
Unstable serial communication

⚠️ Backfeeding and Grounding Issues #

Some setups allow current to flow “backward” through the ESP32’s voltage regulator or USB interface. This can cause unpredictable voltage levels or damage.

If grounds aren’t properly connected between devices, ground reference can float, leading to random resets or communication failures.

What You Should Do #

✅ 1. Use a Separate Power Supply for Peripherals
Provide motors, relays, or high-power sensors their own power source — ideally a 5V or 12V regulator rated for the expected current. Then connect only the grounds:

[Peripherals Power Supply]
    +-----> Motor / Servo
    |
   GND
    |
    +-----> GND of ESP32

✅ 2. Never Power Loads from ESP32 Pins
The 3.3V pin on most ESP32 boards is only rated for 500mA or less, and part of that is used by the chip itself. Avoid using it to power anything significant.

✅ 3. Add Bulk Capacitors Near Loads
Add 100µF to 470µF electrolytic capacitors near each motor, servo, or high-draw peripheral. These help absorb inrush current and reduce voltage sag.

✅ 4. Ensure a Solid Ground Path
Make sure all devices share a common ground. Star grounding or a single-point return can reduce noise and erratic resets.

Example: Common Mistake #

[USB Power] ---> [ESP32 Board]
                 |
                 +--> 3.3V -----> Sensor + Relay + Servo

This setup often fails. Instead, power the peripherals from a dedicated 5V source:

[Wall Adapter 5V] ---> [Servo] + [Sensor]
                 |
                 +--> GND --> [ESP32 GND]

Summary #

The ESP32 is not a power distribution system. If you’re running high-power peripherals, isolate their supply and buffer their loads. A few capacitors and proper power routing can prevent hours of frustrating resets.
