ESP32 Driver Issues

Common Causes

🧩

Missing USB-to-UART Driver

ESP32 development boards often use chips like the CP2102, CH340, or FT232 for USB-to-serial communication. These require drivers — especially on Windows — to function properly.

💻

Platform-Specific Driver Support

On Linux and macOS, drivers for common USB-to-serial chips are usually built-in. However, Windows typically requires a manual driver install.

Symptoms

ESP32 Not Appearing as a Serial Port

The ESP32 does not show up in the IDE’s port menu or the operating system’s device list when plugged in.

Device Appears with a Warning in Device Manager (Windows)

In Windows Device Manager, the ESP32’s USB-to-serial device may show up with a yellow triangle or as an “Unknown Device.”

Upload Fails Despite a Known-Good Cable

Even with a working data cable, code upload fails because the driver isn’t installed or functional.

Solutions

Install Correct USB-to-Serial Driver

Identify your ESP32’s USB chip (e.g., CP2102, CH340, FT232) and install the corresponding driver from the manufacturer’s website if you’re on Windows.

Use Built-In Drivers on macOS and Linux

On macOS and most Linux distributions, drivers for common chips are already included. No additional action is typically needed unless using a very new or obscure chip.

Confirm Driver Installation in Device Manager (Windows)

On Windows, use Device Manager to verify that the USB-to-serial adapter appears correctly and has no error icons.

More Details

ESP32 Driver Issues #

If your ESP32 board doesn’t show up as a serial port when you plug it into your computer — or if uploads fail despite a good cable — you might be missing the USB-to-serial driver.

Most ESP32 boards include a USB-to-UART bridge chip like the CP2102, CH340, or FT232. These chips convert USB signals from your computer into serial communication for the ESP32. But on some systems, especially Windows, they need drivers to work.

Common Symptoms #

No COM port appears in Arduino IDE or PlatformIO
Upload fails with “Failed to connect” even after holding the BOOT button
Windows Device Manager shows “Unknown Device” or “CP210x with warning”

Unkown USB Device in Device Manager

Cable works on one computer, but not another

Which USB Chip Do You Have? #

Look at the small chip near your ESP32’s USB port. Common types include:

CP2102 (Silicon Labs) – Widely used, especially in NodeMCU boards
CH340G (WCH) – Found in many inexpensive boards
FT232 (FTDI) – Less common, premium boards

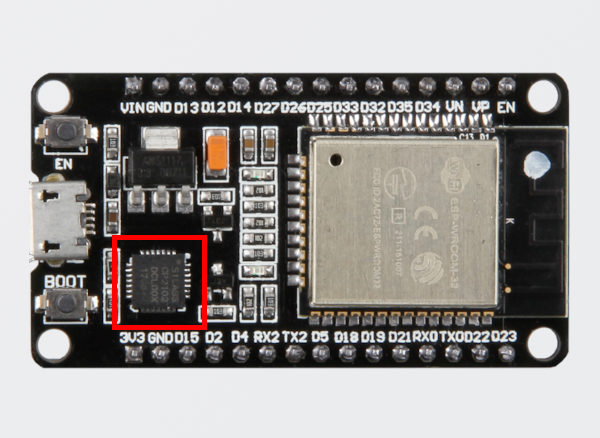

CP2102 chip on ESP32 board

Here we can see the CP2102 chip.

Each of these has its own driver.

Driver Requirements by Platform #

🪟 Windows
Drivers are usually not included by default. You'll need to install them manually:

After installation, unplug and replug your ESP32 board, then check Device Manager.

🍎 macOS
Most USB-to-serial drivers are already included. Recent macOS versions support CP2102 and FTDI natively. Some CH340 versions may still require a manual install.

🐧 Linux
Linux typically has built-in support for all major USB-to-serial chips. If the ESP32 isn’t detected:

Check dmesg output after plugging it in
Ensure your user is part of the dialout or tty group:
```
sudo usermod -a -G dialout $USER
```

How to Verify It’s Working #

On Windows, check Device Manager — the device should appear as a COM port with no warning
On macOS/Linux, use ls /dev/tty.* or ls /dev/ttyUSB*
In your IDE, confirm the port appears and remains stable during use

When It’s Definitely the Driver #

If you:

Swapped to a known-good USB cable
Tried different USB ports
See the device in Device Manager but with a warning symbol
Have no ports listed at all

…it’s almost certainly a driver issue.

Final Tip #

Some boards are mislabeled or have non-standard USB chips. When in doubt, consult your board’s product page or schematic to identify the USB-to-UART chip.
