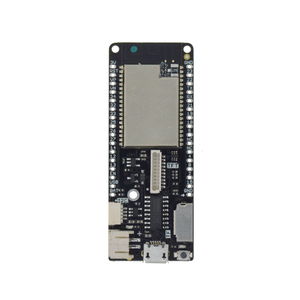

LOLIN D32 PRO

Enhanced version with more flash and PSRAM - suited for advanced ESP32 projects needing extra memory.

Micro-USB
LOLIN D32 PRO board
65 × 25.4 mm
ESP32
MCU
240MHz
clock
16MB
flash
520KB
SRAM
8· Two 12-bit, 18 Channels ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

LOLIN D32 PRO Pinout

8 pins · 2.54 mm pitch
PinGPIOLabelsStatusCapabilitiesNotes
14TF_CSsafe-
25LED_BUILTINstrapping-
312TS_CSstrapping-
414TFT_CSstrapping-
527TFT_DCsafe-
632TFT_LEDsafe-
733TFT_RSTsafe-
835_VBATstrapping-
8 GPIOs broken out 4 free · 4 need care · 0 to avoid

Start with these

4 pins with no boot or system involvement
TF_CSGPIO4TFT_DCGPIO27TFT_LEDGPIO32TFT_RSTGPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

4 pins · 4 things to know
LED_BUILTINGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Must be HIGH during boot; if pulled LOW at reset, alters SDIO slave timing and may prevent normal boot.

TS_CSGPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping

Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash mode, causing flash brownout if 3.3V flash is used.

TFT_CSGPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG

Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.

_VBATGPIO35 Input-only GPIO (no output driver); ADC1 channel 7. Other

Cannot be used as output; only suitable for input.

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

All 8 pins on the LOLIN D32 PRO are usable GPIO, spaced at the standard 2.54 mm pitch.

4 of the exposed pins carry boot-time or system duties on the ESP32 (LED_BUILTIN, TS_CS, TFT_CS and 1 more) - check the guidance above before wiring anything to them. TF_CS, TFT_DC, TFT_LED and TFT_RST are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO4 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Wrover Module"▸
Flash Size: "16MB (128Mb)"▸
Flash Mode: "DIO"▸
PSRAM: "QSPI PSRAM"▸
Partition Scheme: "16M Flash (3MB APP/9.9MB FATFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Wrover Module
Flash Size: 16MB (128Mb)
Flash Mode: DIO
PSRAM: QSPI PSRAM
Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Wrover Module
blink.ino Copy
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
  pinMode(4, OUTPUT);
}
void loop() {
  digitalWrite(4, HIGH); delay(500);
  digitalWrite(4, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:d32_pro]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_qspi
build_flags = -DBOARD_HAS_PSRAM
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf
psram:
  mode: quad
  speed: 80MHz

# blink - GPIO4
output:
  - platform: gpio
    pin: 4
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32 · 65 × 25.4 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 16MB · 8MB (QSPI) PSRAM
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 LE
Antenna
PCB
I/O
GPIO · ADC
8 · Two 12-bit, 18 Channels
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
Micro-USB
Serial
CH340C
Boot address
0x1000
Electrical
Input
5V USB · 3.7V LiPo
Consumption
-
Regulator
ME6211
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

25.4 mm65 mm
65 × 25.4 mm · pin pitch 2.54 mm
The LOLIN D32 PRO uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

At $8.80 it's cheaper than most ESP32 boards, which usually run around $20.

Only 8 GPIO are broken out, where most ESP32 boards manage about 24 - worth checking the pinout covers what you need.

Around the module: 8MB (QSPI) PSRAM, a microSD slot, battery charging (TP4054) via JST-PH 2.0, status LEDs (Built-in, Charging) and Reset buttons.

  • LOLIN TFT connector for a plug-in display (no onboard screen - display sold separately)
  • LOLIN I2C connector for chainable modules
  • V2.0.0 ships with 16MB flash / 8MB PSRAM; earlier V1 has 4MB flash / 4MB PSRAM

Where to buy

prices are typical street prices
LOLIN D32 PRO
LOLIN D32 PRO
$8.80per unit, typical
