Espressif ESP32-Korvo

Versatile audio development platform for ESP32 - supports multiple audio codecs and mic inputs for AI voice tasks.

2× Micro-USB

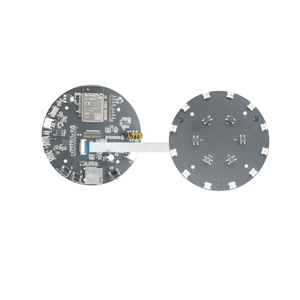

Espressif ESP32-Korvo board
ESP32
MCU
240MHz
clock
16MB
flash
520KB
SRAM
6· 4 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

Pinout

8 pins
View:

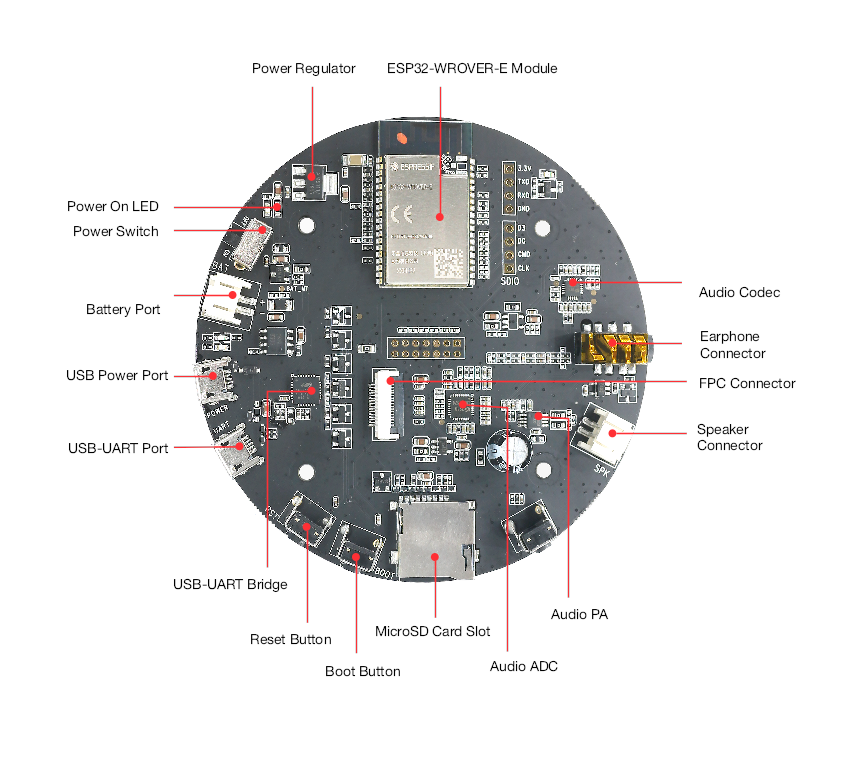

Espressif ESP32-Korvo pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
114IO14SDIO_CLKstrappingadc · touchReserved SDIO 1-bit expansion/stacking header (JP2, "communicate with another esp system"); footprint present, unpopulated on V1.1. Touch T6 / ADC2_CH6.
215IO15SDIO_CMDstrappingadc · touchReserved SDIO 1-bit expansion/stacking header (JP2); ESP32 strapping pin. Touch T3 / ADC2_CH3.
32IO2SDIO_D0strappingadc · touchReserved SDIO 1-bit expansion/stacking header (JP2); ESP32 strapping pin. Touch T2 / ADC2_CH2.
44IO4SDIO_D1strappingadc · touchReserved SDIO 1-bit expansion/stacking header (JP2). Touch T0 / ADC2_CH0.
51TXD0TXuartuartUART0 TX; routed to the CP2102N USB-UART bridge (Micro-USB) and to the reserved 3-pin UART/download header next to JP2.
63RXD0RXuartuartUART0 RX; routed to the CP2102N USB-UART bridge (Micro-USB) and to the reserved 3-pin UART/download header next to JP2.
7-3V3power-3.3V rail (AMS1117-3.3) exposed on the reserved expansion header (VDD33).
8-GNDground-Ground, present on the expansion/UART headers.

Fine - with a little care

sampled at boot or shared with debug/serial
PinLabelWhat to knowRole
IO14MTMS (GPIO14)Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.Other
IO15MTDO (GPIO15)Keep HIGH during boot (internal PU); if LOW on reset, bootloader log is silenced and boot mode may change.Strapping
IO2GPIO2If driven HIGH on reset (while IO0 is LOW), selects an unsupported SDIO boot mode, causing boot failure.Strapping
IO4GPIO4Sampled at reset for boot config; should not be driven at boot (affects boot mode timing).Strapping

Only if you know the tricks

wired to flash or USB - expect a fight
PinLabelWhat to knowRole
TXD0U0TXD (GPIO1)Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.USB
RXD0U0RXD (GPIO3)Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.USB
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.
Pinout notes The Espressif ESP32-Korvo breaks out 8 pins in total: 6 GPIO for your project, with 3V3 and GND handling power. Peripheral wiring is straightforward: TX / RX…

The Espressif ESP32-Korvo breaks out 8 pins in total: 6 GPIO for your project, with 3V3 and GND handling power.

Peripheral wiring is straightforward: TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.

Beyond plain digital I/O you get 4 ADC-capable pins for sensors and battery monitoring and 4 capacitive-touch inputs.

4 of the exposed pins carry boot-time or system duties on the ESP32 (IO14, IO15, IO2 and 1 more) - check the guidance above before wiring anything to them.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Serial chip: CP2102N. Not detected? Hold BOOT while plugging in.
2
Flash with your tool
Arduino IDE, PlatformIO, ESPHome or esptool - copy the settings on the right.
3
Verify it runs
The blink example uses GPIO8 - swap for your board's LED pin if different.
Tools → Board settings Copy
Board:            Esp32 Korvo
Flash Size:       16MB · DIO
Upload Speed:     921600

// blink
pinMode(8, OUTPUT);
digitalWrite(8, LOW);   // on (often inverted)
platformio.ini Copy
[env:esp32-korvo]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32_korvo
  framework:
    type: esp-idf

# blink - GPIO8
output:
  - platform: gpio
    pin: 8
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
shell Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  write_flash 0x0 firmware.bin
Build details: sketch space 1966080 B · data 327680 B · DIO

Specifications

ESP32
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 16MB · 8MB (QSPI) PSRAM
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 LE
Antenna
PCB
I/O
GPIO · ADC
6 · 4
UART · I²C · SPI
3 · 2 · 4
PWM
16 channels
Power
USB
Micro-USB (UART) · Micro-USB
Serial
CP2102N
Boot address
0x1000
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.88 MB · 320 KB
The Espressif ESP32-Korvo uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.88 MB with 320 KB available for data.

About this board

Inside sits the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

At $40.00 it's on the expensive side for an ESP32 board - most land around $20.

Only 6 GPIO are broken out, where most ESP32 boards manage about 24 - worth checking the pinout covers what you need.

Around the module: 8MB (QSPI) PSRAM, a microSD slot, a microphone (Triple analog microphone array), a speaker connector, an audio codec (ES8311), an amplifier (NS4150), an addressable RGB LED (GPIO33), battery charging (AP5056) and Reset/Boot/Play/Set/Vol-/Vol+/Mode/Rec buttons.


The ESP32-Korvo is a powerful AI voice development board based on the ESP32-WROVER module. Designed for speech recognition and audio applications, it integrates an audio codec, multiple microphone inputs, and a DSP for advanced audio processing. The board supports Wi-Fi and Bluetooth connectivity, making it ideal for AI-powered voice assistants, smart home applications, and audio streaming projects.
  • ES7210 four-channel audio ADC captures the three-microphone array
  • On-board 3.5 mm earphone output
