Espressif ESP32-PICO-KIT-1

Small ESP32 dev board using PICO-D4 SiP - great for tight-space applications and integration.

Micro-USB
Espressif ESP32-PICO-KIT-1 board
47 × 20.3 mm
ESP32
MCU
240MHz
clock
4MB
flash
520KB
SRAM
26· 16 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

Espressif ESP32-PICO-KIT-1 Pinout

26 pins · 2.54 mm pitch

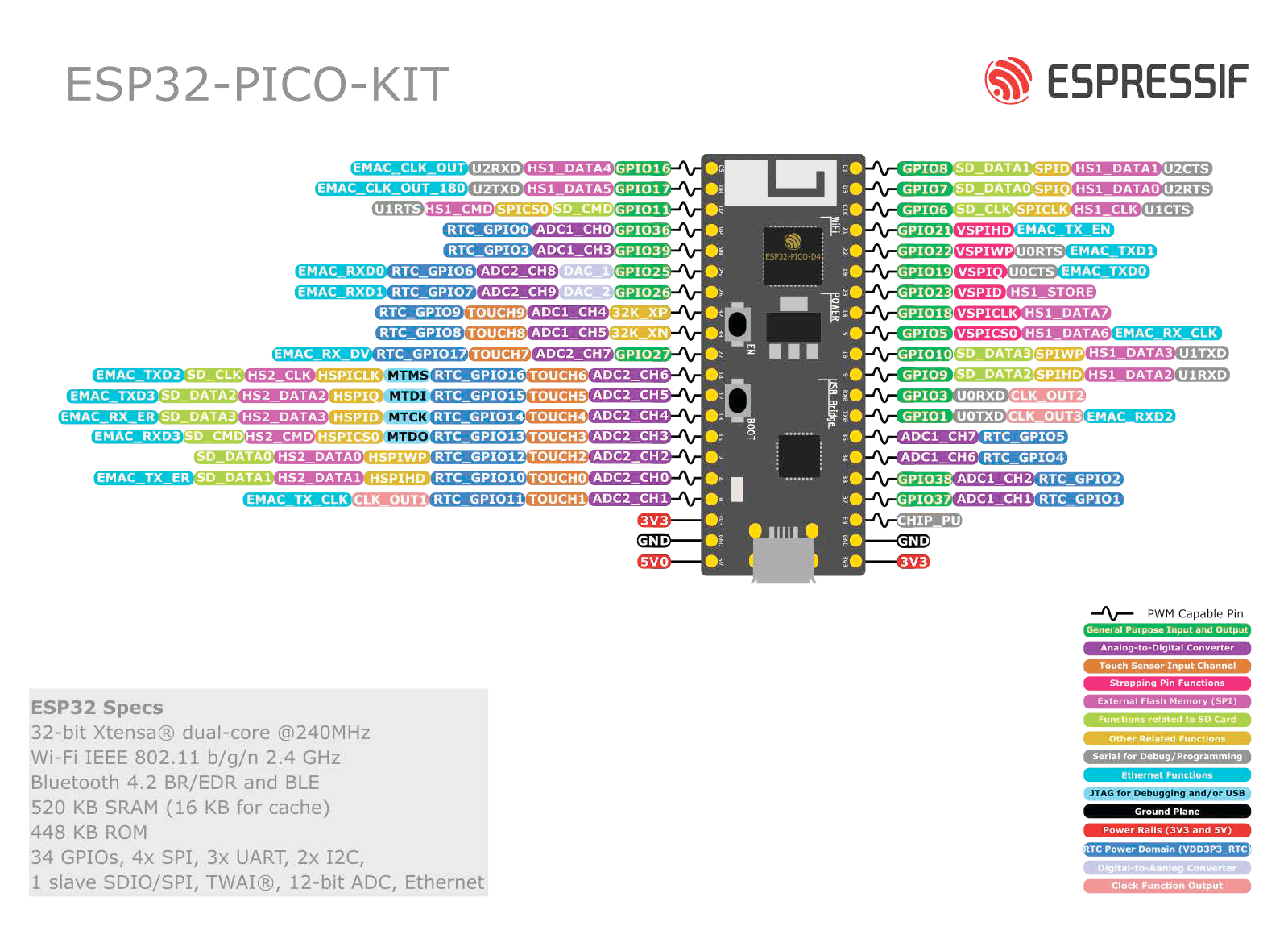

Espressif ESP32-PICO-KIT-1 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
10A11T1PWMstrappingadc · touch
21TXPWMuartuart
32A12T2PWMstrappingadc · touch
43RXPWMuartuart
54A10T0PWMsafeadc · touch
65PWMstrapping-
712A15T5PWMstrappingadc · touch
813A14T4PWMstrappingadc · touch
914A16T6PWMstrappingadc · touch
1015A13T3PWMstrappingadc · touch
1116PWMstrapping-
1217PWMstrapping-
1318PWMsafe-
1419PWMsafe-
1521PWMsafe-
1622PWMsafe-
1723PWMsafe-
1825A18DAC1PWMsafeadc · dac
1926A19DAC2PWMsafeadc · dac
2027A17T7PWMsafeadc · touch
2132A4T9PWMsafeadc · touch
2233A5T8PWMsafeadc · touch
2334A6strappingadc
2435A7strappingadc
2536A0strappingadc
2639A3strappingadc
26 GPIOs broken out 11 free · 15 need care · 0 to avoid

Start with these

11 pins with no boot or system involvement
A10GPIO4PWMGPIO18PWMGPIO19PWMGPIO21PWMGPIO22PWMGPIO23A18GPIO25A19GPIO26A17GPIO27A4GPIO32A5GPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

15 pins · 13 things to know
A11GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

TXGPIO1 Default UART0 TX pin for USB-serial programming and console. UART

Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.

A12GPIO2 Bootstrapping pin (must be low or floating at reset); internal pull-down. Strapping

If driven HIGH on reset (while IO0 is LOW), selects an unsupported SDIO boot mode, causing boot failure.

RXGPIO3 Default UART0 RX pin for USB-serial programming (console input). UART

Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.

PWMGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Must be HIGH during boot; if pulled LOW at reset, alters SDIO slave timing and may prevent normal boot.

A15GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping

Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash mode, causing flash brownout if 3.3V flash is used.

A14GPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG

Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.

A16GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG

Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.

A13GPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping

Keep HIGH during boot (internal PU); if LOW on reset, bootloader log is silenced and boot mode may change.

PWMGPIO16PWMGPIO17 PSRAM chip select and clock on WROVER-class modules; in-package flash lines on ESP32-U4WDH. Both also carry UART2 PSRAM

Wired to the memory die on PSRAM-equipped modules (WROVER, PICO-V3-02) and on in-package-memory chip variants (U4WDH, D0WDRH2-V3); an ordinary GPIO on a plain WROOM-32.

  • PWMPSRAM CS# on WROVER-class modules and on ESP32-D0WDRH2-V3; in-package flash CS# on ESP32-U4WDH. Also UART2 RX.
  • PWMPSRAM clock on WROVER-class modules; in-package flash IO1/DO on ESP32-U4WDH. Also UART2 TX.
A6GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other

Cannot be used as output (no drive capability); only suitable for analog/digital input.

A7GPIO35A3GPIO39 Input-only GPIOs with ADC1 channels - no output driver Other

Cannot be used as output; only suitable for input.

  • A7Input-only GPIO (no output driver); ADC1 channel 7.
  • A3Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN.
A0GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other

Cannot be used as output; only suitable for input (e.g., analog read).

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The Espressif ESP32-PICO-KIT-1 pinout brings out 26 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.

For peripherals, TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.

On the analog side there are 16 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.

If you want zero surprises, A10, PWM, PWM, PWM and 7 more are free of any such role - the safest first picks. 15 of the exposed pins carry boot-time or system duties on the ESP32 (A11, TX, A12 and 12 more).

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO4 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 4MB (32Mb)
Flash Mode: DIO
Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
  pinMode(4, OUTPUT);
}
void loop() {
  digitalWrite(4, HIGH); delay(500);
  digitalWrite(4, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:esp32-pico-kit-1]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO4
output:
  - platform: gpio
    pin: 4
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1966080 B · data 327680 B · DIO

Specifications

ESP32 · 47 × 20.3 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 LE
Antenna
PCB
I/O
GPIO · ADC
26 · 16
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
Micro-USB
Serial
CP2102N
Boot address
0x1000
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.88 MB · 320 KB

Dimensions

20.3 mm47 mm
47 × 20.3 mm · pin pitch 2.54 mm
The Espressif ESP32-PICO-KIT-1 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.88 MB with 320 KB available for data.
