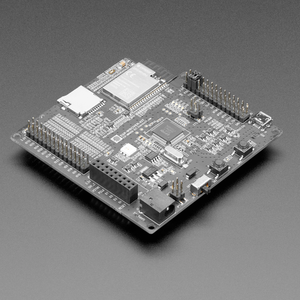

ESP32 Wrover Kit (all versions)
by Espressif
Comprehensive development board featuring the ESP32-WROVER module, LCD display, and microSD card slot, tailored for advanced applications and debugging.

On this page
ESP32 Wrover Kit (all versions) Pinout
24 pins| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 0 | A11T1 | strapping | adc · touch | |
| 2 | 1 | TXPWM | uart | uart | |
| 3 | 2 | A12T2PWM | strapping | adc · touch | |
| 4 | 3 | RXPWM | uart | uart | |
| 5 | 4 | A10T0PWM | safe | adc · touch | |
| 6 | 5 | SSPWM | strapping | spi | |
| 7 | 12 | A15T5PWM | strapping | adc · touch | |
| 8 | 13 | A14T4PWM | strapping | adc · touch | |
| 9 | 14 | A16T6PWM | strapping | adc · touch | |
| 10 | 15 | A13T3PWM | strapping | adc · touch | |
| 11 | 18 | SCKPWM | safe | spi | |
| 12 | 19 | MISOPWM | safe | spi | |
| 13 | 21 | SDAPWM | safe | i2c | |
| 14 | 22 | SCLPWM | safe | i2c | |
| 15 | 23 | MOSIPWM | safe | spi | |
| 16 | 25 | A18DAC1PWM | safe | adc · dac | |
| 17 | 26 | A19DAC2PWM | safe | adc · dac | |
| 18 | 27 | A17T7PWM | safe | adc · touch | |
| 19 | 32 | A4T9PWM | safe | adc · touch | |
| 20 | 33 | A5T8PWM | safe | adc · touch | |
| 21 | 34 | A6 | strapping | adc | |
| 22 | 35 | A7 | strapping | adc | |
| 23 | 36 | A0 | strapping | adc | |
| 24 | 39 | A3 | strapping | adc |
Start with these
11 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
13 pins · 12 things to knowA11GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping
Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.
TXGPIO1 Default UART0 TX pin for USB-serial programming and console. UART
Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.
A12GPIO2 Bootstrapping pin; internal pull-down. Any level boots normally from flash, but it must be LOW or floating (with GPIO0 LOW) to enter download mode. Strapping
If held HIGH at reset, the chip cannot enter download mode, so flashing fails.
RXGPIO3 Default UART0 RX pin for USB-serial programming (console input). UART
Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.
SSGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping
Sampled at reset (internal pull-up) with MTDO to set the SDIO slave timing; this only matters when the ESP32 runs as an SDIO slave.
A15GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping
Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash, and a module with 3.3V flash then fails to boot. espefuse set-flash-voltage 3.3V makes its level irrelevant.
A14GPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG
Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.
A16GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG
Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.
A13GPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping
Keep HIGH during boot (internal PU); if LOW at reset, the ROM boot log on U0TXD is silenced and the SDIO slave timing changes.
A6GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other
Cannot be used as output (no drive capability); only suitable for analog/digital input.
A7GPIO35A3GPIO39 Input-only GPIOs with ADC1 channels - no output driver Other
Cannot be used as output; only suitable for input.
- A7Input-only GPIO (no output driver); ADC1 channel 7.
- A3Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN.
A0GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other
Cannot be used as output; only suitable for input (e.g., analog read).
The ESP32 Wrover Kit (all versions) pinout brings out 24 GPIO pins - every one of them usable in your project.
For peripherals, I²C is mapped to SDA on GPIO21 and SCL on GPIO22; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.
On the analog side there are 16 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.
If you want zero surprises, A10, SCK, MISO, SDA and 7 more are free of any such role - the safest first picks. 13 of the exposed pins carry boot-time or system duties on the ESP32 (A11, TX, A12 and 10 more).
Getting started
flash your first firmware in ~2 minutesBoard: ESP32 Wrover Module Flash Size: 4MB (32Mb) Flash Mode: DIO PSRAM: QSPI PSRAM Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS) Upload Speed: 921600
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
pinMode(4, OUTPUT);
}
void loop() {
digitalWrite(4, HIGH); delay(500);
digitalWrite(4, LOW); delay(500);
}[env:esp32wroverkit]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_qspi
build_flags = -DBOARD_HAS_PSRAMesp32dev - or type it after board =.esp32:
board: esp32dev
variant: esp32
framework:
type: esp-idf
psram:
mode: quad
speed: 80MHz
# blink - GPIO4
output:
- platform: gpio
pin: 4
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32dev (same ids as PlatformIO).esptool.py --chip esp32 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x1000 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Specifications
ESP32 · vs other ESP32 chips →About this board
At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.
Onboard you'll find 8MB (QSPI) PSRAM, an LCD 3.2" 320x240 display, a microSD slot and EN/Reset/Boot buttons.
- Camera header for OV2640/OV7725 module (connector only, sensor not soldered)
- Discrete RGB LED on GPIO0 (red), GPIO2 (green), GPIO4 (blue) - not addressable
- FT2232HL provides USB-to-JTAG (channel A) and USB-to-UART (channel B)
- 32.768 kHz crystal for RTC / low-power deep sleep
