FireBeetle-ESP32

Original FireBeetle ESP32 board with battery support - compact and efficient for mobile IoT applications.

Micro-USB

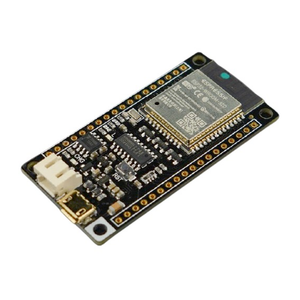

FireBeetle-ESP32 board
58 × 29 mm
ESP32
MCU
240MHz
clock
16MB
flash
520KB
SRAM
26· 14 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

FireBeetle-ESP32 Pinout

26 pins · 2.54 mm pitch

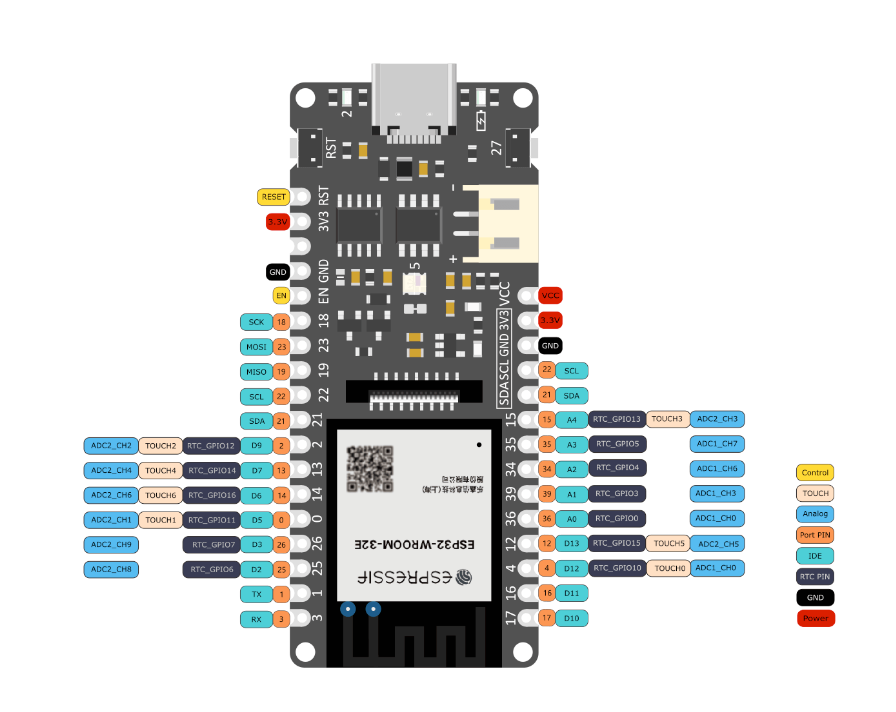

FireBeetle-ESP32 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
10D10A7T1strappingadc · touch
21TXD1PWMuartuart
32LED_BUILTIND9A8T2PWMstrappingadc · touch
43RXD0PWMuartuart
54A6T0PWMsafeadc · touch
65SSD8PWMstrappingspi
79D5PWMstrapping-
810D6PWMstrapping-
912A10T5PWMstrappingadc · touch
1013D7A9T4PWMstrappingadc · touch
1114A11T6PWMstrappingadc · touch
1215A4T3PWMstrappingadc · touch
1318SCKPWMsafespi
1419MISOPWMsafespi
1521SDAPWMsafei2c
1622SCLPWMsafei2c
1723MOSIPWMsafespi
1825D2A13DAC1PWMsafeadc · dac
1926D3A14DAC2PWMsafeadc · dac
2027D4A12T7PWMsafeadc · touch
2132T9PWMsafetouch
2233T8PWMsafetouch
2334A2strappingadc
2435A3A5strappingadc
2536A0strappingadc
2639A1strappingadc
26 GPIOs broken out 11 free · 13 need care · 2 to avoid

Start with these

11 pins with no boot or system involvement
A6GPIO4SCKGPIO18MISOGPIO19SDAGPIO21SCLGPIO22MOSIGPIO23D2GPIO25D3GPIO26D4GPIO27T9GPIO32T8GPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

13 pins · 12 things to know
D10GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

TXGPIO1 Default UART0 TX pin for USB-serial programming and console. UART

Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.

LED_BUILTINGPIO2 Bootstrapping pin (must be low or floating at reset); internal pull-down. Strapping

If driven HIGH on reset (while IO0 is LOW), selects an unsupported SDIO boot mode, causing boot failure.

RXGPIO3 Default UART0 RX pin for USB-serial programming (console input). UART

Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.

SSGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Must be HIGH during boot; if pulled LOW at reset, alters SDIO slave timing and may prevent normal boot.

A10GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping

Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash mode, causing flash brownout if 3.3V flash is used.

D7GPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG

Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.

A11GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG

Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.

A4GPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping

Keep HIGH during boot (internal PU); if LOW on reset, bootloader log is silenced and boot mode may change.

A2GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other

Cannot be used as output (no drive capability); only suitable for analog/digital input.

A3GPIO35A1GPIO39 Input-only GPIOs with ADC1 channels - no output driver Other

Cannot be used as output; only suitable for input.

  • A3Input-only GPIO (no output driver); ADC1 channel 7.
  • A1Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN.
A0GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other

Cannot be used as output; only suitable for input (e.g., analog read).

Only if you know the tricks

2 pins · 1 thing to know
D5GPIO9D6GPIO10 SPI flash/PSRAM data lines SD2 and SD3 (flash HOLD and WP) Flash

Used by internal flash/PSRAM; typically not exposed on modules, avoid using as GPIO.

  • D5Connected to SPI flash/PSRAM data 2 (SD2, flash HOLD).
  • D6Connected to SPI flash/PSRAM data 3 (SD3, flash WP).
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The FireBeetle-ESP32 pinout brings out 26 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.

For peripherals, I²C is mapped to SDA on GPIO21 and SCL on GPIO22; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.

On the analog side there are 14 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.

If you want zero surprises, A6, SCK, MISO, SDA and 7 more are free of any such role - the safest first picks. 13 of the exposed pins carry boot-time or system duties on the ESP32 (D10, TX, LED_BUILTIN and 10 more).

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO4 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "16MB (128Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "16M Flash (3MB APP/9.9MB FATFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 16MB (128Mb)
Flash Mode: DIO
Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
  pinMode(4, OUTPUT);
}
void loop() {
  digitalWrite(4, HIGH); delay(500);
  digitalWrite(4, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:firebeetle32]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO4
output:
  - platform: gpio
    pin: 4
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32 · 58 × 29 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 16MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 LE
Antenna
PCB
I/O
GPIO · ADC
26 · 14
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
Micro-USB
Serial
CH340C
Boot address
0x1000
Electrical
Input
5V USB · 3.7V LiPo
Consumption
10µA sleep
Regulator
RT9080-33
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

29 mm58 mm
58 × 29 mm · pin pitch 2.54 mm
The FireBeetle-ESP32 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

Expect to pay about $8.90 - less than the ~$20 most ESP32 boards go for.

Onboard you'll find battery charging (TP4056) via JST-PH 2.0 and Reset buttons.
