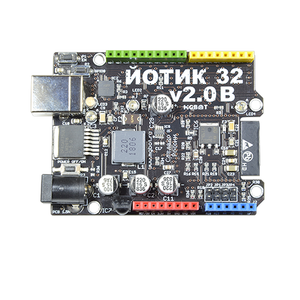

MGBOT IOTIK 32B Development Board
Code name: MGBOT_IOTIK32B
MGBOT IOTIK 32B development board is based on esp32 microcontroller and uses xtensa architecture. This board has a maximum CPU frequency of 240 MHz and a flash size of 4MB.
About MGBOT IOTIK 32B
Variant of the IOTIK 32 series with expanded I/O β great for larger STEM and robotics projects.
Technical Specifications
π°οΈ Connectivity
π§ Microcontroller
β¨ Features
- 40 digital IO pins
- 16 external interrupt pins
- 16 analog input pins
- 21 PWM pins
MGBOT IOTIK 32B Useful Links
MGBOT IOTIK 32B Pins Mapping Arduino IDE
Below you can find the MGBOT IOTIK 32B pinout. This development board provides 40 digital IO pins, out of which 16 can be used as external interrupt pins, 16 as analog input pins and 21 pins have Pulse-Width Modulation (PWM).
Pin | Analog | Touch | PWM | Other |
---|---|---|---|---|
0 | A11 | T1 | ||
1 | PWM | TX | ||
2 | A12 | T2 | PWM | |
3 | PWM | RX | ||
4 | A10 | T0 | PWM | |
5 | PWM | SS | ||
12 | A15 | T5 | PWM | |
13 | A14 | T4 | PWM | |
14 | A16 | T6 | PWM | |
15 | A13 | T3 | PWM | |
16 | PWM | RX2 | ||
17 | PWM | TX2 | ||
18 | PWM | LED_BUILTIN SCK | ||
19 | PWM | MISO | ||
21 | PWM | SDA | ||
22 | PWM | SCL | ||
23 | PWM | MOSI | ||
25 | A18 | PWM | DAC1 | |
26 | A19 | PWM | DAC2 | |
27 | A17 | T7 | PWM | IR |
32 | A4 | T9 | PWM | |
33 | A5 | T8 | PWM | |
34 | A6 | |||
35 | A7 | |||
36 | A0 | |||
39 | A3 |
Default Tools
Bootloader tool | esptool_py |
Uploader tool | esptool_py |
Network uploader tool | esp_ota |
Bootloader address | 0x1000 |
Flash mode | dio |
Boot mode | dio |
Maximum upload size | 1280 Kb (1310720 B) |
Maximum data size | 320 Kb (327680 B) |
The MGBOT IOTIK 32B development board by default uses esptool_py uploader tool, esp_ota network uploader tool for Over-the-air (OTA) uploads and esptool_py bootloader tool. The bootloader starts at address "0x1000". Flash mode and boot mode for MGBOT IOTIK 32B development board by default is dio and dio respectively.
