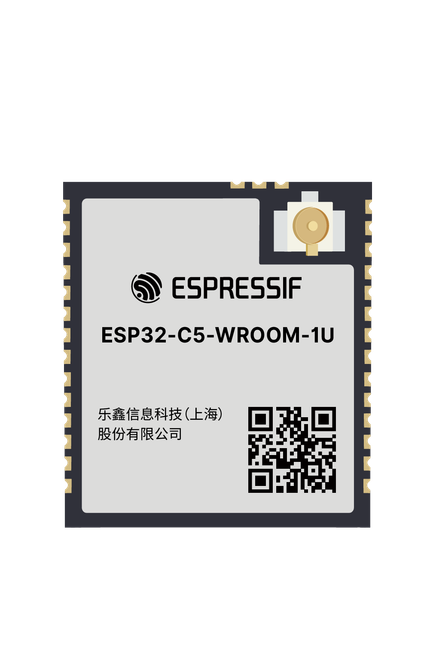

ESP32-C5-WROOM-1U

active esp32c5 WROOM

A general-purpose 2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth® 5 (LE), Zigbee, and Thread (802.15.4) module, ideal for smart homes, industrial automation, health care, consumer electronics, etc.

Embedded Chip(s):

ESP32-C5NR4

Variants Tech Specs Datasheet Dimensions

ESP32-C5-WROOM-1U Module Variants

ESP32-C5-WROOM-1U-N8R4

Base Flash: 8 MB PSRAM: 4 MB

Basic variant
8MB flash
4MB PSRAM

The ESP32-C5-WROOM-1U module comes in several variants:

ESP32-C5-WROOM-1U-N8R4: This is the basic variant with 8MB of flash memory and 4MB of PSRAM, suitable for most applications.

Note: Variants may have different features, flash sizes, and PSRAM configurations. Check the individual module pages for detailed specifications.

About ESP32-C5-WROOM-1U

ESP32-C5-WROOM-1U is a dual-band Wi-Fi 6, Bluetooth 5, Zigbee, and Thread module with IPEX antenna connector, ideal for advanced IoT, smart home, and industrial applications.

Dual-band Wi-Fi 6 (2.4/5 GHz)
Bluetooth 5, Zigbee, Thread
IPEX antenna connector for external antennas
Wide operating temperature range: -40°C ~ 85°C
Size: 18 x 21.2 x 3.3 mm

ESP32-C5-WROOM-1U Technical Specifications

🛰️ Connectivity

Antenna IPEX antenna connector

WiFi 802.11 ax b/g/n (2.4 GHz / 5 GHz)

BLE 5.2

Microcontroller

GPIO Count 29

Flash Size 8 MB

PSRAM Size 4 MB

Operating Temperature -40°C ~ 85°C

ESP32-C5-WROOM-1U Dimensions

Width 18.0 mm

Length 21.2 mm

Height 3.3 mm
