ESP32-C5 Development Boards
The ESP32-C5 is Espressif's first dual-band Wi-Fi 6 chip, adding a 5 GHz radio alongside the usual 2.4 GHz band. It pairs a single-core 32-bit RISC-V CPU running up to 240 MHz with Bluetooth 5 (LE) and an 802.15.4 radio for Thread and Zigbee.
In practice it is a 5 GHz-capable sibling of the ESP32-C6, well suited to less congested 5 GHz networks, Matter devices, and higher-throughput IoT links. After a long pre-release period it now ships on development boards such as the ESP32-C5-DevKitC-1 and Seeed XIAO ESP32-C5, with support in ESP-IDF (v5.5+).
Single-core
RISC-V cores
240 MHz
Max clock
384 KB
SRAM
1
Boards
Specifications
Datasheet ↗Compute
CPURISC-V single-core 32-bit
Clock240 MHz
SRAM384 KB
Operating temp-40 to 85 °C
Connectivity
Wi-Fi802.11 ax b/g/n (2.4 GHz / 5 GHz)
Bluetooth5.0
BLE5.0
Thread / Zigbee802.15.4 (Thread / Zigbee)
Peripherals
ADCOne 12-bit, 6 Channels
SPI1
I²C1 +1 LP
I²S1
RMT4 Channels
UART2 +1 LP
PWM6
Strapping & reserved pins
14 pins to knowSome pins are reserved for boot strapping, JTAG, USB and flash - misusing them can cause boot failures or programming issues. The category colours below match the table.
Strapping boot mode & flash voltage JTAG low-level debugging USB native USB Serial/JTAG Flash / SPI flash & PSRAM lines PSRAM memory line only on PSRAM-equipped modules UART debug & firmware upload
| Pin | Label | Why avoid | Category |
|---|---|---|---|
| GPIO28 | GPIO28 | Must stay HIGH at reset for normal SPI boot; pulling it LOW forces joint download (flashing) mode. Free to use as GPIO after reset. | Strapping |
| GPIO27 | GPIO27 / VDD_SPI | Held HIGH at reset for normal boot; it also powers external flash by default, so driving it can change the boot mode / ROM-log output or cut flash power. | Strapping |
| GPIO26 | GPIO26 | Sampled at reset for boot mode; avoid holding it at a fixed level during boot unless intentionally selecting download mode. Free after reset. | Strapping |
| GPIO25 | GPIO25 | Latched at reset to set SDIO clock-edge behaviour; avoid driving at boot unless configuring SDIO timing. Free as GPIO after reset. | Strapping |
| IO22 | SPID | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO21 | SPICLK | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO20 | SPIHD | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO18 | SPIWP | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO17 | SPIQ | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO16 | SPICS0 | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| IO15 | SPICS1 | One of the SPI0/1 lines the datasheet reserves for the off-package flash and PSRAM (GPIO15, 16, 17, 18, 20, 21, 22). Modules wire their flash here, so using it as GPIO breaks program storage. | Flash |
| GPIO7 | GPIO7 (JTAG_SEL) | Must be driven to a defined level by external circuitry at reset (never left floating) to select the JTAG source; free as GPIO afterwards. | JTAG |
| IO3 | MTDI | Part of the JTAG interface and sampled at reset; avoid using as GPIO when JTAG debugging or SDIO is in use. | JTAG |
| IO2 | MTMS | Part of the JTAG interface and latched at reset; avoid using as GPIO if JTAG debugging is needed. | JTAG |

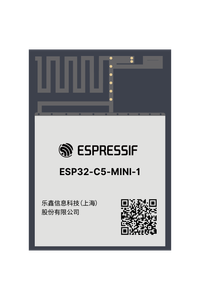

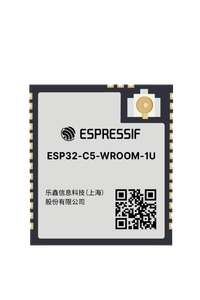

ESP32-C5 modules & revisions
3 variants
