ESP32-C5-MINI-1

ACTIVE MINI

ESP32-C5-MINI-1 is a general-purpose 2.4 and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), Zigbee and Thread module with a rich set of peripherals, aimed at IoT uses such as embedded systems, smart home and wearable electronics. The same datasheet covers ESP32-C5-MINI-1U, the version with an external antenna connector.

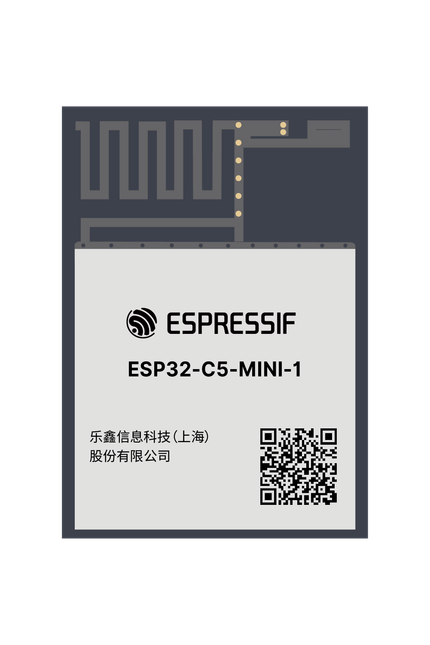

ESP32-C5-MINI-1 module
15.4 × 21.3 mm
8MB
Flash
2MB
PSRAM
22
GPIOs
15.4×21.3mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-C5HF4, ESP32-C5NF8R2LA
GPIOs22 (21 on N8R2; IO15 is the PSRAM chip select)
Module pins65
AntennaPCB antenna
Operating temp-40°C ~ 85°C
Dimensions15.4 × 21.3 × 2.4 mm

Memory

Flash4 / 8 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 ax b/g/n (2.4 GHz / 5 GHz)
Bluetooth6.0 LE only

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-C5-MINI-1-N44 MB-Base
ESP32-C5-MINI-1-N8R28 MB2 MBTop

About the ESP32-C5-MINI-1

ESP32-C5-MINI-1 is a small module built around the ESP32-C5 (32-bit RISC-V single core, up to 240 MHz) with 2.4 and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), Zigbee and Thread.

  • Size: 15.4 x 21.3 x 2.4 mm
  • Dual-band Wi-Fi 6 (802.11ax, 2.4 and 5 GHz), Bluetooth 5 (LE), Zigbee 3.0, Thread 1.4
  • 22 GPIOs on a 65-pin footprint (21 on N8R2)
  • 4 MB or 8 MB flash in the chip package; 2 MB PSRAM on N8R2
  • Operating temperature: -40°C ~ 85°C
  • Integrated PCB antenna

The ESP32-C5-MINI-1 comes in two variants. Both keep the flash (and PSRAM) inside the chip package and are rated -40°C ~ 85°C.

  • ESP32-C5-MINI-1-N4: 4 MB flash, no PSRAM (ESP32-C5HF4 chip). In mass production.
  • ESP32-C5-MINI-1-N8R2: 8 MB flash and 2 MB PSRAM (ESP32-C5NF8R2LA chip). Added to the datasheet in September 2026; Espressif lists its chip as not yet in mass production. Module pin 26 (IO15) is the PSRAM chip select and cannot be used as a GPIO.
