ESP32-C5-WROOM-1

ACTIVE WROOM

A general-purpose 2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth 5 (LE), Zigbee, and Thread (802.15.4) module for smart homes, industrial automation, health care, consumer electronics, etc.

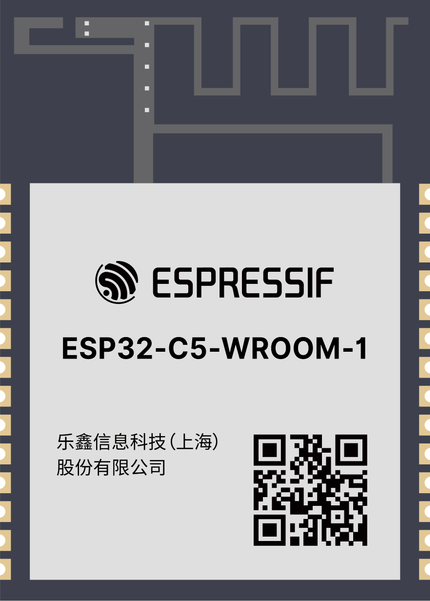

ESP32-C5-WROOM-1 module
18.0 × 27.5 mm
32MB
Flash
8MB
PSRAM
22
GPIOs
18.0×27.5mm
Size

Specifications

Datasheet ↗

Module

FamilyWROOM
Embedded chipESP32-C5HF4, ESP32-C5HR2, ESP32-C5HR8
GPIOs22 (21 on PSRAM variants; IO15 is the PSRAM chip select)
Module pins29
AntennaPCB antenna
Dev boardESP32-C5-DevKitC-1
Operating temp-40°C ~ 85°C
Dimensions18.0 × 27.5 × 3.3 mm

Memory

Flash4 / 8 / 16 / 32 MB
PSRAMUp to 8 MB

Connectivity

Wi-Fi802.11 ax b/g/n (2.4 GHz / 5 GHz)
Bluetooth6.0 LE only

Module variants

7 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-C5-WROOM-1-N44 MB-Base
ESP32-C5-WROOM-1-N4R24 MB2 MB
ESP32-C5-WROOM-1-N8R28 MB2 MB
ESP32-C5-WROOM-1-N16R216 MB2 MB
ESP32-C5-WROOM-1-N8R88 MB8 MB
ESP32-C5-WROOM-1-N16R816 MB8 MB
ESP32-C5-WROOM-1-N32R832 MB8 MBTop

About the ESP32-C5-WROOM-1

ESP32-C5-WROOM-1 is a general-purpose module built around the ESP32-C5 (32-bit RISC-V single core, up to 240 MHz) with 2.4 and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), Zigbee and Thread.

  • Size: 18.0 x 27.5 x 3.3 mm
  • Dual-band Wi-Fi 6 (802.11ax, 2.4 and 5 GHz), Bluetooth 5 (LE), Zigbee 3.0, Thread 1.4
  • 22 GPIOs on a 29-pin footprint (21 on PSRAM variants)
  • 4 MB to 32 MB flash, optional 2 MB or 8 MB PSRAM in the chip package
  • Operating temperature: -40°C ~ 85°C
  • Integrated PCB antenna

The ESP32-C5-WROOM-1 variants differ in flash and PSRAM size. In the part number, "N" gives the flash size and "R" the PSRAM size in MB. All variants are rated -40°C ~ 85°C.

  • ESP32-C5-WROOM-1-N4: 4 MB flash inside the ESP32-C5HF4 chip package, no PSRAM.
  • ESP32-C5-WROOM-1-N4R2, -N8R2 and -N16R2: 4, 8 or 16 MB flash and 2 MB PSRAM (ESP32-C5HR2 chip).
  • ESP32-C5-WROOM-1-N8R8, -N16R8 and -N32R8: 8, 16 or 32 MB flash and 8 MB PSRAM (ESP32-C5HR8 chip).

On the R2 and R8 variants, module pin 19 (IO15) is the PSRAM chip select and cannot be used as a GPIO. Espressif makes other flash, PSRAM or temperature options on request.
