- ESP32-C6
- Basic variant
- 4MB flash
- Enhanced flash variant
- 8MB flash
- ESP32-C6-WROOM-1U-N4: This is the basic variant with 4MB of flash memory and no PSRAM, suitable for most applications.
- ESP32-C6-WROOM-1U-N8: This is the enhanced flash variant with 8MB of flash memory and no PSRAM, designed for applications requiring more storage.
- Size: 18 x 19.2 x 3.2 mm
- Wi-Fi 6 (2.4 GHz), Bluetooth 5, Zigbee 3.0, Thread
- Low power consumption
- IPEX antenna connector for external antennas
- Pin-to-pin compatible with ESP32-WROOM series
- Wide operating temperature range: -40°C ~ 85°C
- Perfect for smart home, industrial, and consumer IoT

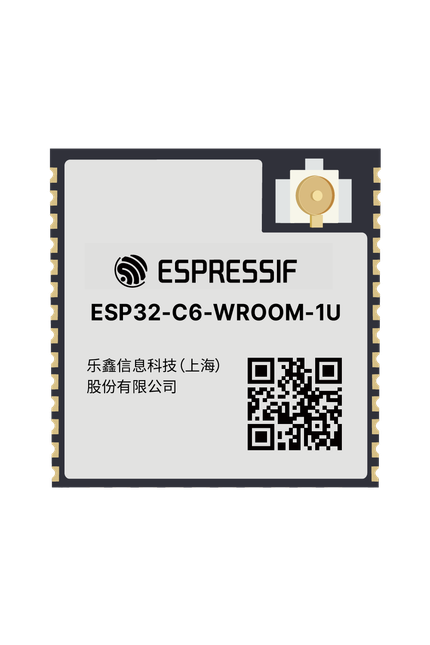

ESP32-C6-WROOM-1U
ESP32-C6-WROOM-1U is an ESP32-C6 based module supporting Wi-Fi 6 in the 2.4 GHz band, Bluetooth 5, Zigbee 3.0, and Thread. Pin-to-pin compatible with the ESP32-WROOM series. With low power consumption, it is ideal for a variety of IoT devices.
Embedded Chip(s):
ESP32-C6-WROOM-1U Module Variants
ESP32-C6-WROOM-1U-N4
Base Flash: 4 MB PSRAM
ESP32-C6-WROOM-1U-N8
Top Flash: 8 MB PSRAM
The ESP32-C6-WROOM-1U module comes in several variants:
Note: Variants may have different features, flash sizes, and PSRAM configurations. Check the individual module pages for detailed specifications.
About ESP32-C6-WROOM-1U
ESP32-C6-WROOM-1U is a general-purpose Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread module based on ESP32-C6, featuring an IPEX antenna connector for flexible placement in advanced IoT devices.
ESP32-C6-WROOM-1U Technical Specifications
🛰️ Connectivity
Antenna IPEX antenna connector
WiFi 802.11 ax b/g/n (2.4 GHz)
BLE 5.3
🧠 Microcontroller
GPIO Count 29
Flash Size 4 / 8 / 16 MB
PSRAM Size 0 MB
Operating Temperature -40°C ~ 85°C
ESP32-C6-WROOM-1U Dimensions
Width 18 mm
Length 19.2 mm
Height 3.2 mm
