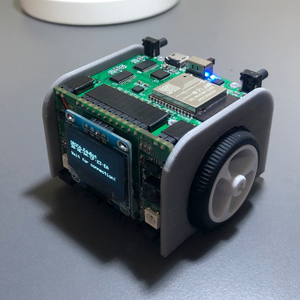

OROCA EduBot

ESP32-based robotics platform - designed for hands-on education in embedded programming and robotics.

OROCA EduBot board
ESP32
MCU
240MHz
clock
4MB
flash
520KB
SRAM
22· 4 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

OROCA EduBot Pinout

23 pins
PinGPIOLabelsStatusCapabilitiesNotes
10T1strappingtouch
22SST2PWMstrappingtouch · spi
34D0T0PWMsafetouch
45SCKD5PWMstrappingspi
512T5PWMstrappingtouch
613LED_BUILTINT4PWMstrappingtouch
714T6PWMstrappingtouch
815T3PWMstrappingtouch
916RXD1PWMuartuart
1017TXD2PWMuartuart
1118MOSID6PWMsafespi
1219MISOD7PWMsafespi
1322SCLD3PWMsafei2c
1423SDAD4PWMsafei2c
1525DAC1PWMsafedac
1626DAC2PWMsafedac
1727T7PWMsafetouch
1832T9PWMsafetouch
1933A3D8T8PWMsafeadc · touch
2034A0strappingadc
2135VBATpower-
2236A2strappingadc
2339A1strappingadc
22 GPIOs broken out 12 free · 10 need care · 0 to avoid

Start with these

12 pins with no boot or system involvement
D0GPIO4RXGPIO16TXGPIO17MOSIGPIO18MISOGPIO19SCLGPIO22SDAGPIO23DAC1GPIO25DAC2GPIO26T7GPIO27T9GPIO32A3GPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

10 pins · 10 things to know
T1GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

SSGPIO2 Bootstrapping pin; internal pull-down. Any level boots normally from flash, but it must be LOW or floating (with GPIO0 LOW) to enter download mode. Strapping

If held HIGH at reset, the chip cannot enter download mode, so flashing fails.

SCKGPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Sampled at reset (internal pull-up) with MTDO to set the SDIO slave timing; this only matters when the ESP32 runs as an SDIO slave.

T5GPIO12 Bootstrapping pin; JTAG TDI; sets flash voltage (VDD_SDIO); also HSPIQ (flash data line). Strapping

Keep LOW during boot (internal PD); pulling HIGH at reset selects 1.8V flash, and a module with 3.3V flash then fails to boot. espefuse set-flash-voltage 3.3V makes its level irrelevant.

LED_BUILTINGPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG

Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.

T6GPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG

Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.

T3GPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping

Keep HIGH during boot (internal PU); if LOW at reset, the ROM boot log on U0TXD is silenced and the SDIO slave timing changes.

A0GPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other

Cannot be used as output (no drive capability); only suitable for analog/digital input.

A2GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other

Cannot be used as output; only suitable for input (e.g., analog read).

A1GPIO39 Input-only GPIO (no output); ADC1 channel 3, Hall sensor VN. Other

Cannot be used as output; only suitable for input.

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The OROCA EduBot pinout brings out 23 pins - 22 usable GPIO alongside the VBAT power rails.

For peripherals, I²C is mapped to SDA on GPIO23 and SCL on GPIO22; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO17 and GPIO16 cover serial logging and flashing.

On the analog side there are 4 ADC-capable pins for sensors and battery monitoring, 10 capacitive-touch inputs and 2 true DAC outputs.

If you want zero surprises, D0, RX, TX, MOSI and 8 more are free of any such role - the safest first picks. 10 of the exposed pins carry boot-time or system duties on the ESP32 (T1, SS, SCK and 7 more).

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO4 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 4MB (32Mb)
Flash Mode: DIO
Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
  pinMode(4, OUTPUT);
}
void loop() {
  digitalWrite(4, HIGH); delay(500);
  digitalWrite(4, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:oroca_edubot]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO4
output:
  - platform: gpio
    pin: 4
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 3145728 B · data 327680 B · DIO

Specifications

ESP32 · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 Classic + LE
Antenna
PCB
I/O
GPIO · ADC
22 · 4
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
-
Serial
-
Boot address
0x1000
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
3 MB · 320 KB
The OROCA EduBot uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 3 MB with 320 KB available for data.

About this board

At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

Onboard you'll find an amplifier (MAX98357), an MPU9250 IMU and User buttons.

  • Dual GM15BY geared stepper motors for differential drive (mm-precision movement)
  • Expansion board: SSD1306 128x64 OLED, dual VL53L0X ToF distance sensors, NeoPixel RGB LED, IR receiver and line-tracing floor sensors
  • On-board battery voltage monitoring (VBAT)
