Noduino Quantum

Development Board QUANTUM

ESP32

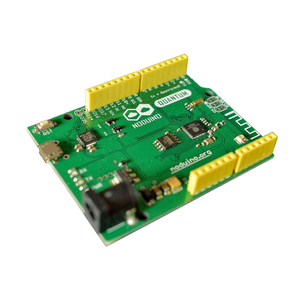

Noduino Quantum is a development board based on the ESP32 microcontroller using XTENSA architecture.

This board features a maximum CPU frequency of 240 MHz and 16MB flash memory.

240 MHz CPU 16MB Flash WiFi + BT 4.2

About Noduino Quantum

ESP32 Xtensa dual-core 32-bit LX6 · 240 MHz

ESP32 dev board with sleek design and Grove connectors - great for educational kits and rapid IoT development.

Technical Specifications

Complete technical specification details for Noduino Quantum

ESP32 · Dual-Core

Arch

XTENSA

Clock

240 MHz

Flash

16MB

Connectivity

WiFi

802.11 b/g/n (2.4 GHz)

Bluetooth 4.2

Classic + BLE

Digital IO

Analog In

PWM

Interrupts

Quick Setup

Copy-paste configs for Noduino Quantum - auto‑generated from this board's exact hardware specs.

ESP32 240 MHz 16MB QIO Xtensa

In Arduino IDE 2 select Quantum from the esp32 by Espressif package. In PlatformIO use board = esp32dev. ESP32 · 240 MHz · 16MB · QIO.

Tools menu settings

Board (select in Arduino IDE) Quantum

CPU Frequency 240 MHz

Flash Size 16MB

Flash Mode QIO

Upload Speed 921600

Architecture Xtensa

In Arduino IDE 2, open Boards Manager, search "esp32" by Espressif and install it. Then go to Tools → Board and select "Quantum" for the Noduino Quantum.

platformio.ini


[env:quantum]
platform  = espressif32
board     = esp32dev
framework = arduino

; Exact hardware config for Noduino Quantum
board_build.mcu        = esp32
board_build.f_cpu      = 240000000L
board_build.flash_size = 16MB
board_build.flash_mode = qio
board_upload.flash_size = 16MB

The board value is a close generic match - check PlatformIO board registry for an exact fit.

esp32: block (YAML)


esp32:
  board: esp32dev
  framework:
    type: arduino   # or "esp-idf"

# Noduino Quantum - 240 MHz ESP32
# Flash: 16MB | USB: N/A

Paste into your device's .yaml. See ESPHome ESP32 docs for full options.

esptool.py - flash command


esptool.py \
  --chip esp32 \
  --baud 921600 \
  write_flash \
    --flash_mode qio \
    --flash_size 16MB \
    0x1000 bootloader.bin \
    0x8000    partitions.bin \
    0xe000    boot_app0.bin \
    0x10000   firmware.bin

Install: pip install esptool - replace firmware.bin with your binary - bootloader at 0x1000

Useful Links

Datasheets and resources for Noduino Quantum

ESP32 Datasheet

Microcontroller reference

Pin Mappings

Complete pinout and GPIO mapping for Noduino Quantum

Digital I/O Pins

Interrupt Pins

Analog Inputs

PWM Pins

Pin	Analog	Touch	PWM	Other
0	A11	T1
1			PWM	TX
2	A12	T2	PWM
3			PWM	RX
4	A10	T0	PWM
5			PWM	SS
12	A15	T5	PWM
13	A14	T4	PWM
14	A16	T6	PWM
15	A13	T3	PWM
18			PWM	SCK
19			PWM	MISO
21			PWM	SDA
22			PWM	SCL
23			PWM	MOSI
25	A18		PWM	DAC1
26	A19		PWM	DAC2
27	A17	T7	PWM
32	A4	T9	PWM
33	A5	T8	PWM
34	A6
35	A7
36	A0
39	A3

Legend

A0 Analog input

T0 Touch sensor

PWM PWM capable

RX/TX Serial pins

LED Built-in LED

# Pin number

Default Tools & Configuration

Build and upload settings for Noduino Quantum

Setting	Value
Bootloader tool	esptool_py
Uploader tool	esptool_py
Network uploader tool	esp_ota
Bootloader address	`0x1000`
Flash mode	qio
Boot mode	dio
Maximum upload size	1280 KB (1310720 bytes)
Maximum data size	320 KB (327680 bytes)

Configuration Summary

The Noduino Quantum uses esptool_py for uploads , esp_ota for OTA updates, and esptool_py bootloader at 0x1000.

Flash mode: qio | Boot mode: dio

Max sketch size: 1280 KB | Max data size: 320 KB

Similar Boards

Other development boards with ESP32 microcontroller

Silicognition wESP32

ESP32 XTENSA

Silicognition wESP32 development board is based on esp32 microcontroller and uses xtensa architecture.

View Board Details

Sonoff DUALR3

ESP32 XTENSA

Sonoff DUALR3 development board is based on esp32 microcontroller and uses xtensa architecture.

View Board Details

VintLabs ESP32 Devkit

ESP32 XTENSA

VintLabs ESP32 Devkit development board is based on esp32 microcontroller and uses xtensa architecture.

View Board Details
