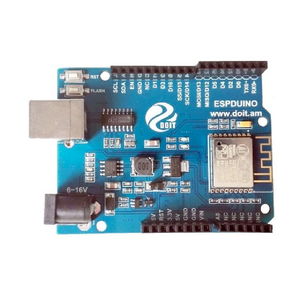

ESPDuino (ESP-13 Module)
Arduino Uno-style ESP8266 board - combines Wi-Fi with a familiar layout for easy hardware reuse.
ESP8266
MCU
160MHz
clock
4MB
flash
~80KB
SRAM
17· 1 ADC
GPIO
Wi-Fi
radio
ESPDuino (ESP-13 Module) Pinout
Getting started
flash your first firmware in ~2 minutes1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO2 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "Generic ESP8266 Module"▸
Flash Size: "4MB (32Mb)"▸
CPU Frequency: "160 MHz"▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: Generic ESP8266 Module Flash Size: 4MB (32Mb) CPU Frequency: 160 MHz Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP8266 Boards ▸ Generic ESP8266 Module
// toggle GPIO2 - wire an LED and resistor to it
void setup() {
pinMode(2, OUTPUT);
}
void loop() {
digitalWrite(2, HIGH); delay(500);
digitalWrite(2, LOW); delay(500);
}Specifications
ESP8266Compute
MCU
ESP8266
Clock
160 MHz
SRAM · Flash
~80 KB · 4 MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
-
Antenna
PCB
I/O
GPIO · ADC
17 · 1
UART · I²C · SPI
2 · 1 (software) · 1
PWM
-
Power
USB
-
Serial
CH340C
Boot address
0x0000
Electrical
Input
5V via USB · 3.3V logic
Consumption
-
Regulator
-
Flashing
Upload · OTA
esptool · esp_ota
Flash · Boot mode
DIO · -
Sketch · Data
- · 80 KB
The ESPDuino (ESP-13 Module) uses esptool for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO.
About this board

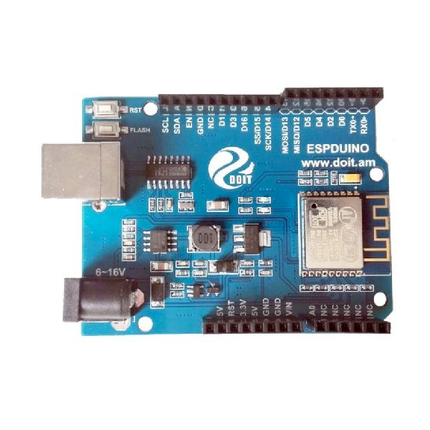

The ESPDuino (also written as ESPDuino ESP-13 or Doit ESPDuino) is a Wi-Fi development board built around the ESP8266 on the ESP-13 module, laid out in the classic Arduino Uno R3 form factor. Developed by Doit, it works with standard Arduino Uno shields and breaks out the ESP8266 GPIO pins, making it easy to add 802.11 b/g/n Wi-Fi to Uno-style projects and IoT builds. In this guide, you'll find the ESPDuino pinout, datasheet, technical specs, and setup instructions.
