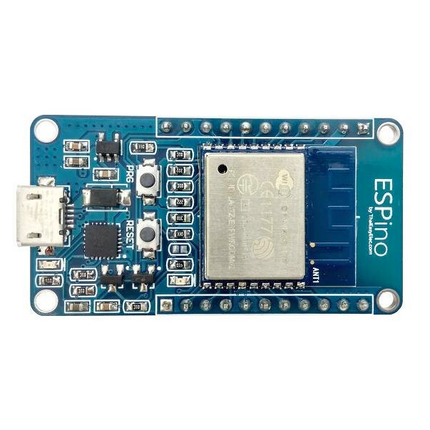

ThaiEasyElec's ESPino
Development Board ESP8266_ESPINO_ESP13
ThaiEasyElec's ESPino is a development board based on the ESP8266 microcontroller using XTENSA LX106 architecture.
This board features a maximum CPU frequency of 160 MHz and 4 MB flash memory.
160 MHz CPU 4 MB Flash WiFi
About ThaiEasyElec's ESPino
ESP8266 Xtensa single-core 32-bit L106 · 160 MHz
ESP8266 board with USB and power management - designed for easy prototyping in the Thai maker community.
Technical Specifications
Complete technical specification details for ThaiEasyElec's ESPino
ESP8266 · Single-Core
Arch
XTENSA LX106
Clock
160 MHz
Flash
4 MB
Full datasheet & reference manual

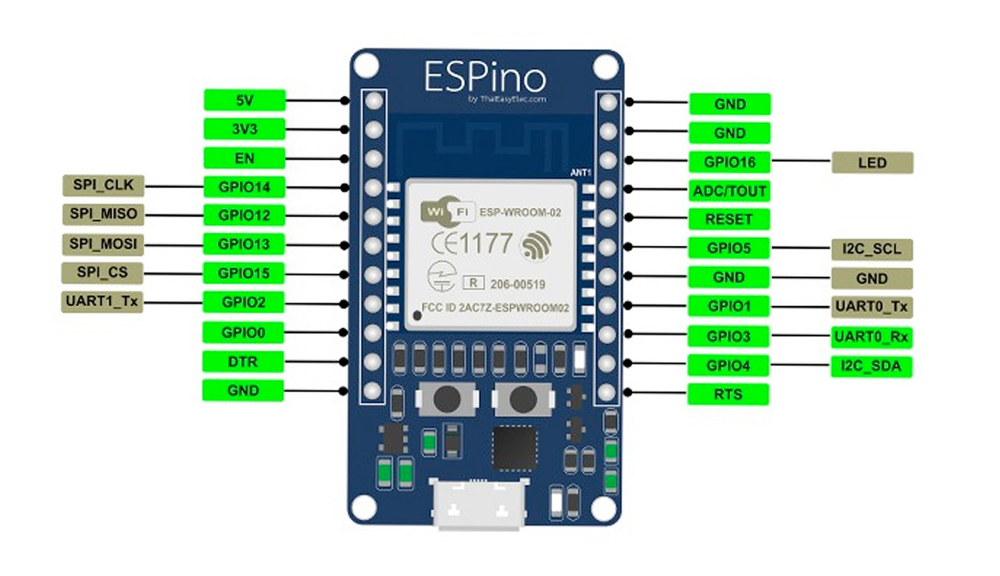

DownloadThaiEasyElec's ESPino Pinout Diagram
Complete pin reference for ThaiEasyElec's ESPino
Useful Links
Datasheets and resources for ThaiEasyElec's ESPino
Pin Mappings
Complete pinout and GPIO mapping for ThaiEasyElec's ESPino
Digital I/O Pins
Interrupt Pins
Analog Inputs
| Pin | Analog | Touch | PWM | Other |
|---|---|---|---|---|
| 16 | LED_BUILTIN | |||
| PIN_WIRE_SDA | SDA | |||
| PIN_WIRE_SCL | SCL |
Legend
A0 Analog input
T0 Touch sensor
PWM PWM capable
RX/TX Serial pins
LED Built-in LED
# Pin number
Default Tools & Configuration
Build and upload settings for ThaiEasyElec's ESPino
| Setting | Value |
|---|---|
| Uploader tool | esptool |
| Flash mode | qio |
| Maximum data size | 80 KB (81920 bytes) |
Configuration Summary
The ThaiEasyElec's ESPino uses esptool for uploads , and bootloader at .
Flash mode: qio | Boot mode:
