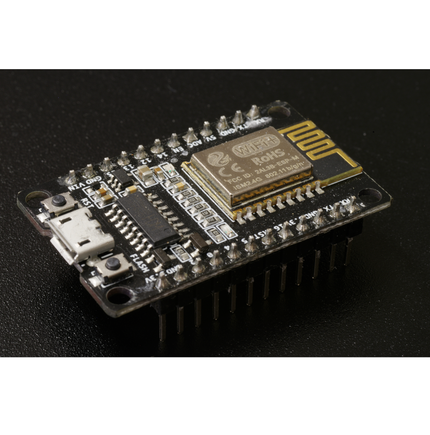

DOIT ESP-Mx DevKit (ESP8285)
Compact ESP8285 dev board with onboard flash - ideal for embedded Wi-Fi projects in tight spaces.
ESP8266
MCU
160MHz
clock
4MB
flash
~80KB
SRAM
17· 1 ADC
GPIO
Wi-Fi
radio
Pinout
Getting started
flash your first firmware in ~2 minutes1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
The onboard LED on GPIO2 blinks - swap the pin if your board's LED differs.
Set these in Tools · leave everything else at default
Arduino IDE 2.x — Tools Copy
Board: "Generic ESP8266 Module"▸
Flash Size: "4MB (32Mb)"▸
CPU Frequency: "160 MHz"▸
Upload Speed: "921600"▸
▸ every other Tools option — leave at default
Board: Generic ESP8266 Module Flash Size: 4MB (32Mb) CPU Frequency: 160 MHz Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP8266 Boards ▸ Generic ESP8266 Module
// blink the onboard LED
void setup() {
pinMode(2, OUTPUT);
}
void loop() {
digitalWrite(2, HIGH); delay(500);
digitalWrite(2, LOW); delay(500);
}Specifications
ESP8266Compute
MCU
ESP8266
Clock
160 MHz
SRAM · Flash
~80 KB · 4 MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
-
Antenna
PCB
I/O
GPIO · ADC
17 · 1
UART · I²C · SPI
2 · 1 · 2
PWM
-
Power
USB
Micro-USB
Serial
CH340C
Boot address
0x0000
Flashing
Upload · OTA
esptool · esp_ota
Flash · Boot mode
DOUT · -
Sketch · Data
- · 80 KB
The DOIT ESP-Mx DevKit (ESP8285) uses esptool for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DOUT.
About this board
The DOIT ESP-Mx DevKit (also written as ESP-Mx DevKit or Doit ESP8285 DevKit) is a low-cost Wi-Fi board built around the ESP-Mx module and Espressif's ESP8285 - an ESP8266 core with 1 MB of embedded flash. It pairs a CH340C USB-to-serial converter with a red power LED and a blue LED on GPIO16 in a breadboard-friendly layout. With flash integrated on-chip, the module stays compact, ideal for low-cost, space-constrained Wi-Fi IoT projects. In this guide, you'll find the DOIT ESP-Mx DevKit pinout, datasheet, technical specs, and setup instructions.
