Using voltage dividers is a common technique for scaling down voltages, especially when interfacing 5V logic with 3.3V ESP32 inputs. However, misuse of voltage dividers on certain GPIOs — especially bootstrapping pins and analog inputs — can lead to subtle, frustrating issues ranging from failed boots to completely unreliable analog readings.

This guide walks you through how voltage dividers can interfere with the ESP32's operation, what symptoms to look for, and how to fix or prevent these problems.

Why Voltage Divider Misuse Causes Problems #

🧩 Boot Pin Interference #

Several GPIOs on the ESP32 have special roles during boot. Pins like GPIO0, GPIO2, GPIO12, and GPIO15 determine the chip’s startup mode — for example, whether it enters flash mode or user code mode.

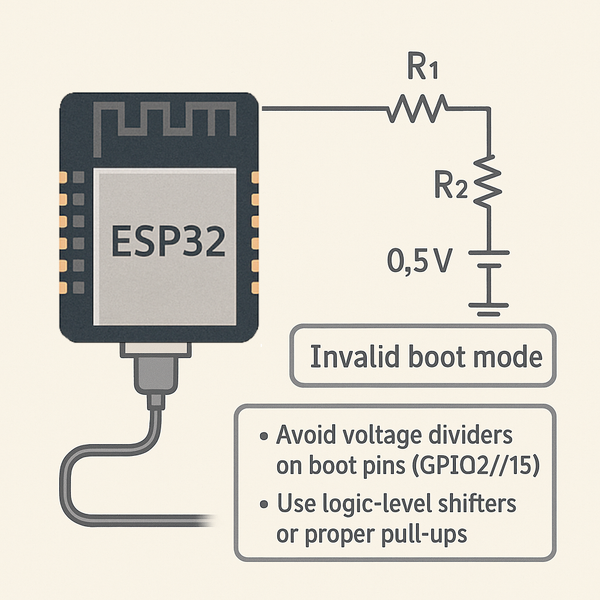

If you place a high-impedance voltage divider on one of these pins, it may prevent the required HIGH or LOW logic level from being properly latched during reset. This can cause the ESP32 to enter UART bootloader mode unintentionally (seen as no program running and Waiting for download via serial) or even fail to boot entirely.

A typical problematic scenario:

ESP-ROM:esp32xxxx
Waiting for download

This usually means GPIO0 is being pulled LOW during reset — perhaps by a voltage divider designed to step down 5V but failing to keep the line HIGH enough due to a large pulldown resistor.

🔍 ADC Errors with High Resistance Dividers #

The ESP32’s ADCs (especially ADC2) have relatively high input impedance, but this is not infinite. If you connect a voltage divider with large resistor values (like 100kΩ + 100kΩ), the pin's voltage may be affected by the ADC sampling circuitry, leading to inaccurate or noisy readings.

Example:

analogRead(34); // Expected ~2048 for 1.65V but returns erratic or low values

This is especially problematic when using analogRead() for sensor inputs. Without buffering or impedance matching, your results will be unreliable.

🌀 Logic Level Uncertainty #

A voltage divider intended to drop 5V down to 3.3V may not actually hit the ESP32's digital threshold cleanly if improperly calculated. For instance, 2.0V might register as HIGH or LOW depending on noise, temperature, and batch-to-batch variations in the silicon.

This can cause GPIO inputs to flicker, read HIGH when LOW, or toggle unpredictably, leading to erratic behavior in state machines, interrupts, or digital input reads.

How to Diagnose Divider-Related Issues #

• Check boot messages. If the board only boots when disconnected from certain inputs, you're likely interfering with a boot pin.

• Use a multimeter or scope. Probe the voltage on GPIOs during reset. Watch for divider voltages hovering around 1.5–2.0V — the “danger zone” for logic levels.

• Try direct connections. Remove the divider and see if operation stabilizes. If so, consider using a proper level shifter.

Best Practices #

✅ Avoid Dividers on Boot Pins

GPIO0, GPIO2, GPIO12, and GPIO15 should not have high impedance loads or intermediate voltages during boot. Use known-good pull-ups or pull-downs to match the [https://chatgpt.com/troubleshooting/issues/boot/esp32-boot-pin-configuration/](ESP32 boot mode requirements).

✅ Keep ADC Divider Impedance Low

If you're using a voltage divider to read analog voltages (like from a battery or sensor), keep the total resistance below 10kΩ if possible. Alternatively, buffer the signal with an op-amp configured as a voltage follower to maintain precision.

✅ Validate Voltage Levels for Digital Inputs

Use this formula for safe voltage division from 5V to 3.3V logic:

R1 = 1.8kΩ, R2 = 3.3kΩ  → Vout = ~3.3V

Ensure the resulting voltage is clearly within logic HIGH (>2.0V) or LOW (<0.8V) range on ESP32 datasheets.

Conclusion #

Voltage dividers are useful, but they’re not always suitable — especially on sensitive GPIOs. If you're seeing weird boots, unreliable reads, or unexplained resets, suspect your dividers. Use proper level shifters for digital logic, and buffer high-impedance sources for ADC use.

Taking the time to design your voltage inputs properly will save hours of confusing debug sessions.
