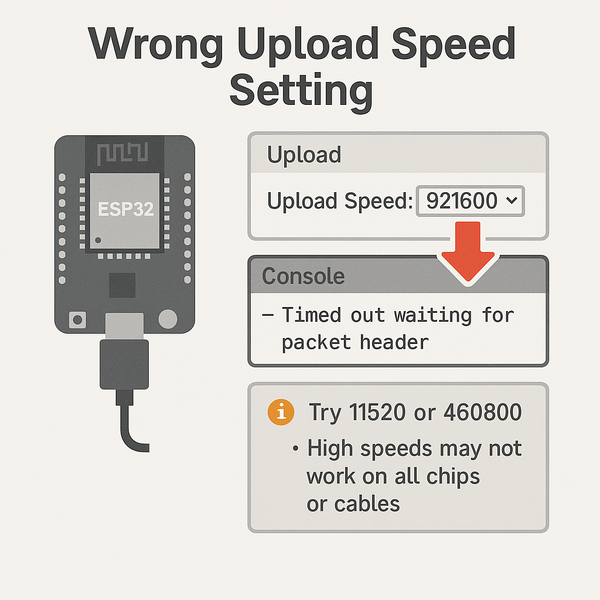

ESP32 Wrong Upload Speed Setting

Common Causes

⚠️
Baud Rate Too High for Your USB Setup
Upload speeds above 921600 baud may cause errors with certain USB-to-serial chips, long cables, or low-quality USB hubs.
🧯
Mismatched Flash Baud in IDE or esptool.py
Setting a baud rate in your IDE or CLI that doesn’t match what the ESP32 bootloader can handle may lead to sync or write errors.
🔌
Unstable USB or Power Supply
High baud rates are more sensitive to voltage fluctuations, USB cable impedance, or timing glitches.
🧷
Old or Incompatible USB-to-Serial Driver
Some driver versions (especially for CH340 or CP210x chips) may not reliably support high-speed uploads, leading to random failures.

Symptoms

Upload Fails at High Baud Rate

Upload only succeeds when using 115200 or 921600 baud; fails at 1.5M or 2M baud with errors like: A fatal error occurred: Timed out waiting for packet header

Flashing Seems to Work but ESP32 Doesn't Boot

Firmware uploads complete at high speed, but the ESP32 shows no serial output or boots into an invalid state.

Serial Monitor Output is Corrupted

Garbage characters appear in the terminal if upload speed and monitor baud do not match or if data was corrupted during flash.

Upload Speed Works on One PC But Not Another

Differences in USB chipset or driver affect which upload speeds are stable across machines.

Solutions

Lower the Upload Speed in Your IDE

Try using 115200 or 921600 baud for reliable results, especially on boards with CH340 or long USB cables.

Match Monitor and Upload Baud Rates

Ensure your Serial Monitor uses the same baud rate as specified in Serial.begin() and your upload settings.

Use a High-Quality USB Cable and Port

Avoid front panel USB ports, use a short cable, and try a rear desktop port or powered USB hub for better signal integrity.

Update USB-to-Serial Drivers

Check for the latest drivers for CP210x or CH340 chips. Older drivers often misbehave at high baud rates.

More Details

ESP32 Wrong Upload Speed Setting #

The ESP32 supports high-speed firmware uploads via USB-to-serial interfaces — with baud rates as high as 921600 or even 2,000,000. But pushing the baud rate too high, especially on less reliable setups, often leads to failed uploads, corrupted data, or boards that won't boot correctly after flashing.

This guide explains how upload speed settings affect flashing reliability, what symptoms to watch for, and how to choose the right speed for your hardware.

Understanding Baud Rate in ESP32 Uploads #

During flashing, tools like esptool.py or the Arduino IDE communicate with the ESP32 bootloader over UART. The upload baud rate controls how fast this communication happens. Higher speeds reduce upload time — but also increase the risk of transmission errors, especially if:

USB signal quality is poor
Cable is long or unshielded
The USB-to-serial chip has compatibility issues
The driver or host OS is not tuned for high-speed communication

Common Symptoms of Incorrect Upload Speed #

⚠️ Upload Fails at High Speed #

You may see:

A fatal error occurred: Timed out waiting for packet header

or:

A fatal error occurred: Failed to write target RAM

These often appear when flashing at 1.5M or 2M baud. Dropping to 921600 or 115200 usually resolves the issue.

🧨 Flash Completes, But ESP32 Doesn’t Boot #

Even if the upload reports success, the flashed binary may be corrupted due to missed or out-of-order packets. The ESP32 may then:

Fail to boot
Show no serial output
Reboot endlessly or output garbage

🪵 Serial Monitor Shows Garbage #

If the upload completed but the serial monitor baud is wrong, or if corruption occurred during flashing, you'll see unreadable characters like:

⸮⸮⸮⸮⸮⸮⸮⸮

Ensure both your code and monitor use Serial.begin(115200) (or your chosen rate).

💻 Upload Works on Some Systems, Not Others #

This is a strong sign of marginal stability. Different computers, USB chipsets, and OS drivers tolerate different maximum speeds. A board that uploads fine at 2M on one PC may fail consistently on another.

How to Fix Upload Speed Issues #

✅ Lower the Baud Rate #

If you're seeing flashing errors, reduce the upload speed. In the Arduino IDE:

Go to Tools > Upload Speed
Try 115200 or 921600 baud for stability

In PlatformIO, edit platformio.ini:

upload_speed = 115200

Or when using esptool.py:

esptool.py --baud 115200 write_flash 0x1000 firmware.bin

✅ Use a Good USB Cable and Port #

Long or cheap USB cables are a common source of signal degradation. Use:

Short (under 1 meter)
Shielded, high-quality USB cables
Rear USB ports on desktops or powered hubs

Avoid charging-only cables — see our [https://chatgpt.com/troubleshooting/issues/usb/esp32-wrong-usb-cable/](USB troubleshooting guide).

✅ Update USB-to-Serial Drivers #

For best results, make sure you're using current drivers:

CP210x drivers from Silicon Labs
CH340 drivers for Windows/macOS

Older drivers often introduce timing bugs or instability at high speeds.

✅ Match Serial Monitor and Firmware Settings #

Make sure your code and IDE use consistent baud rates:

Serial.begin(115200);  // Matches upload speed

Then configure your serial monitor to match — otherwise, your output will be unreadable even if the upload succeeds.

Conclusion #

While high baud rates can make flashing fast, they also increase the chance of subtle, frustrating problems. If you're facing timeouts, corrupt uploads, or weird boot issues, slow things down and test again.

A stable upload at 115200 or 921600 baud is far better than an unreliable one at 2M. Get your tools, drivers, and cables in order — then crank the speed up once you know the system can handle it.
