Adafruit Feather ESP32-S3 No PSRAM

Similar to the previous model but without PSRAM, offering 8MB Flash and ideal for applications not requiring large memory buffers.

USB-C Native USB

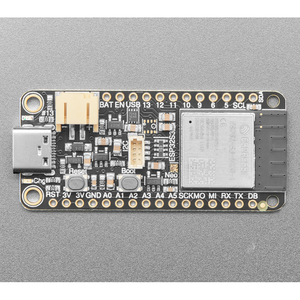

Adafruit Feather ESP32-S3 No PSRAM board
52.3 × 22.7 mm
ESP32-S3
MCU
240MHz
clock
8MB
flash
512KB
SRAM
25· 15 ADC
GPIO
BLE 5.0+ WiFi
radio
On this page

Adafruit Feather ESP32-S3 No PSRAM Pinout

25 pins · 2.54 mm pitch

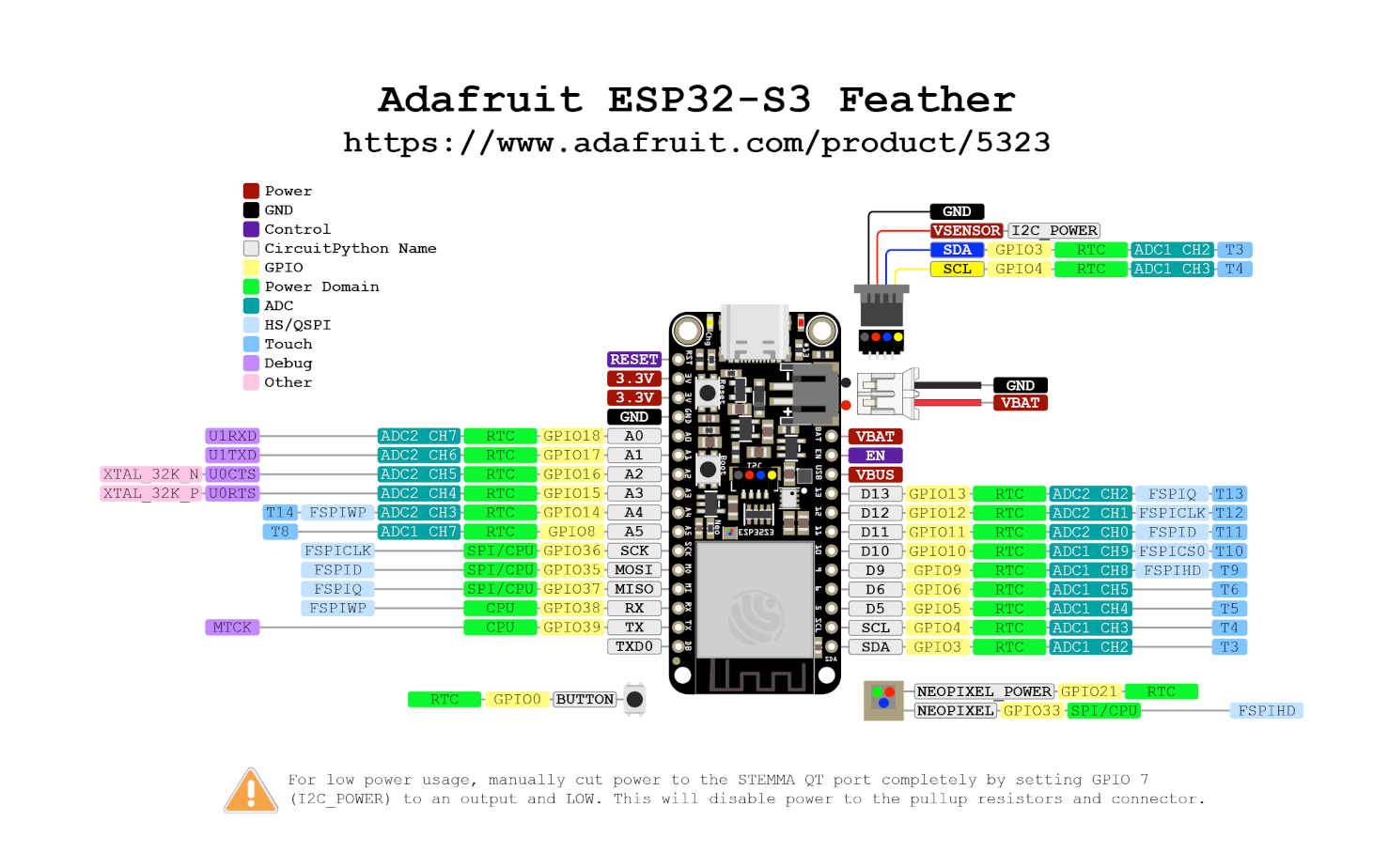

Adafruit Feather ESP32-S3 No PSRAM pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
11NEOPIXEL_NUMPWMsafe-
23SDAA6T3PWMstrappingadc · touch · i2c
34SCLA7T4PWMsafeadc · touch · i2c
45A8T5PWMsafeadc · touch
56A9T6PWMsafeadc · touch
67I2C_POWERPIN_I2C_POWERPWMsafe-
78A5T8PWMsafeadc · touch
89A10T9PWMstrappingadc · touch
910A11T10PWMstrappingadc · touch
1011A12T11PWMstrappingadc · touch
1112A13T12PWMstrappingadc · touch
1213LED_BUILTINA14T13PWMstrappingadc · touch
1314A4T14PWMstrappingadc · touch
1415A3PWMsafeadc
1516A2PWMsafeadc
1617A1PWMsafeadc
1718A0PWMsafeadc
1821NEOPIXEL_POWERPWMsafe-
1933PIN_NEOPIXELPWMsafe-
2035MOSIPWMsafespi
2136SCKPWMsafespi
2237MISOPWMsafespi
2338RXPWMuartuart
2439TXPWMstrappinguart
2542SSPWMstrappingspi
25 GPIOs broken out 16 free · 9 need care · 0 to avoid

Start with these

16 pins with no boot or system involvement
NEOPIXEL_NUMGPIO1SCLGPIO4A8GPIO5A9GPIO6I2C_POWERGPIO7A5GPIO8A3GPIO15A2GPIO16A1GPIO17A0GPIO18NEOPIXEL_POWERGPIO21PIN_NEOPIXELGPIO33MOSIGPIO35SCKGPIO36MISOGPIO37RXGPIO38

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

9 pins · 4 things to know
SDAGPIO3 Bootstrapping pin (controls JTAG signal source) Strapping

Sampled at reset to select JTAG interface (USB Serial/JTAG controller vs. external pins). Improper use can disable external JTAG or alter debug interface.

A10GPIO9A11GPIO10A12GPIO11A13GPIO12LED_BUILTINGPIO13A4GPIO14 General-purpose SPI2 (FSPI) IO MUX pins Other

IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI.

  • A10General-purpose SPI2 (FSPI) IO MUX pin - hold/data line (FSPIHD)
  • A11General-purpose SPI2 (FSPI) IO MUX pin - chip select (FSPICS0)
  • A12General-purpose SPI2 (FSPI) IO MUX pin - data in (FSPID)
  • A13General-purpose SPI2 (FSPI) IO MUX pin - clock (FSPICLK)
  • LED_BUILTINGeneral-purpose SPI2 (FSPI) IO MUX pin - data out (FSPIQ)
  • A4General-purpose SPI2 (FSPI) IO MUX pin - write-protect/data line (FSPIWP)
TXGPIO39 JTAG test clock (MTCK); IO MUX alternates CLK_OUT3 and SUBSPICS1 (chip select on the alternative SUBSPI memory bus, unused on standard modules) JTAG

Default JTAG TCK - keep it free if you debug over JTAG. It is not a flash or PSRAM line on standard modules: those sit on GPIO26-37.

SSGPIO42 JTAG test mode select pin (MTMS) JTAG

Default JTAG TMS signal for debugging. Using this pin for other purposes will disable the JTAG interface (unless JTAG is rerouted to USB).

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

All 25 pins on the Adafruit Feather ESP32-S3 No PSRAM are usable GPIO, spaced at the standard 2.54 mm pitch.

Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO3 and SCL on GPIO4; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO39 and GPIO38 cover serial logging and flashing.

Beyond plain digital I/O you get 15 ADC-capable pins for sensors and battery monitoring and 11 capacitive-touch inputs.

9 of the exposed pins carry boot-time or system duties on the ESP32-S3 (SDA, A10, A11 and 6 more) - check the guidance above before wiring anything to them. NEOPIXEL_NUM, SCL, A8, A9 and 12 more are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Native USB - shows up as a port right away, no driver needed. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO1 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32S3 Dev Module"▸
USB CDC On Boot: "Enabled"▸
Flash Size: "8MB (64Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "8M with spiffs (3MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32S3 Dev Module
USB CDC On Boot: Enabled
Flash Size: 8MB (64Mb)
Flash Mode: DIO
Partition Scheme: 8M with spiffs (3MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32S3 Dev Module
blink.ino Copy
// toggle GPIO1 - wire an LED and resistor to it
void setup() {
  pinMode(1, OUTPUT);
}
void loop() {
  digitalWrite(1, HIGH); delay(500);
  digitalWrite(1, LOW);  delay(500);
}
board to selectesp32-s3-devkitc-1⧉ copy
platformio.ini Copy
[env:adafruit_feather_esp32s3_nopsram]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32-s3-devkitc-1 - or type it after board =.
board to selectesp32-s3-devkitc-1⧉ copy
device.yaml Copy
esp32:
  board: esp32-s3-devkitc-1
  variant: esp32s3
  framework:
    type: esp-idf

# blink - GPIO1
output:
  - platform: gpio
    pin: 1
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32-s3-devkitc-1 (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32s3 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x0 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32-S3 · 52.3 × 22.7 mm · vs other ESP32 chips →
Compute
MCU
ESP32-S3
Clock
240 MHz
SRAM · Flash
512 KB · 8MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.0 LE
Antenna
PCB
I/O
GPIO · ADC
25 · 15
UART · I²C · SPI
3 · 2 · 2
PWM
8 channels
Power
USB
USB-C
Serial
Native (CDC)
Boot address
0x0
Electrical
Input
5V USB · 3.7V LiPo
Consumption
~100µA sleep
Regulator
AP2112K-3.3
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · QIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

22.7 mm52.3 mm
52.3 × 22.7 mm · pin pitch 2.54 mm
The Adafruit Feather ESP32-S3 No PSRAM uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with QIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads.

At $17.50 it's cheaper than most ESP32-S3 boards, which usually run around $29.

Around the module: a STEMMA QT connector, an addressable RGB LED (GPIO33), a battery fuel gauge (MAX17048), battery charging (MCP73831) via JST-PH 2.0, status LEDs (On, Charge, User (D13)) and Reset/DFU (BOOT0) buttons.

It flashes over native USB - no serial-converter driver needed, which isn't a given among ESP32-S3 boards.

  • 8MB flash, no PSRAM (sibling of the 4MB-flash + 2MB-PSRAM ESP32-S3 Feather)
