CYD ESP32-2432S024

Compact ESP32 board with 2.4" touchscreen - ideal for simple GUIs, smart controls, and visual interfaces.

USB-C
CYD ESP32-2432S024 board

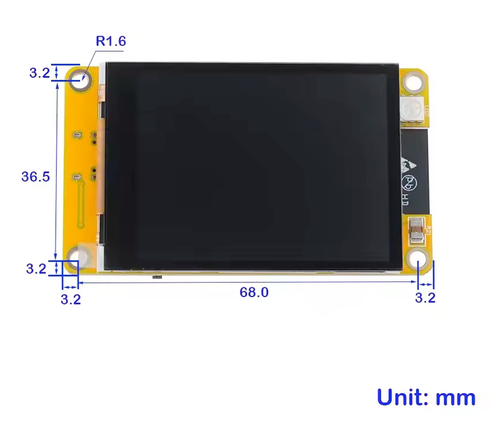

74.4 × 42.9 mm
ESP32
MCU
240MHz
clock
4MB
flash
520KB
SRAM
24· 1 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

CYD ESP32-2432S024 Pinout

28 pins

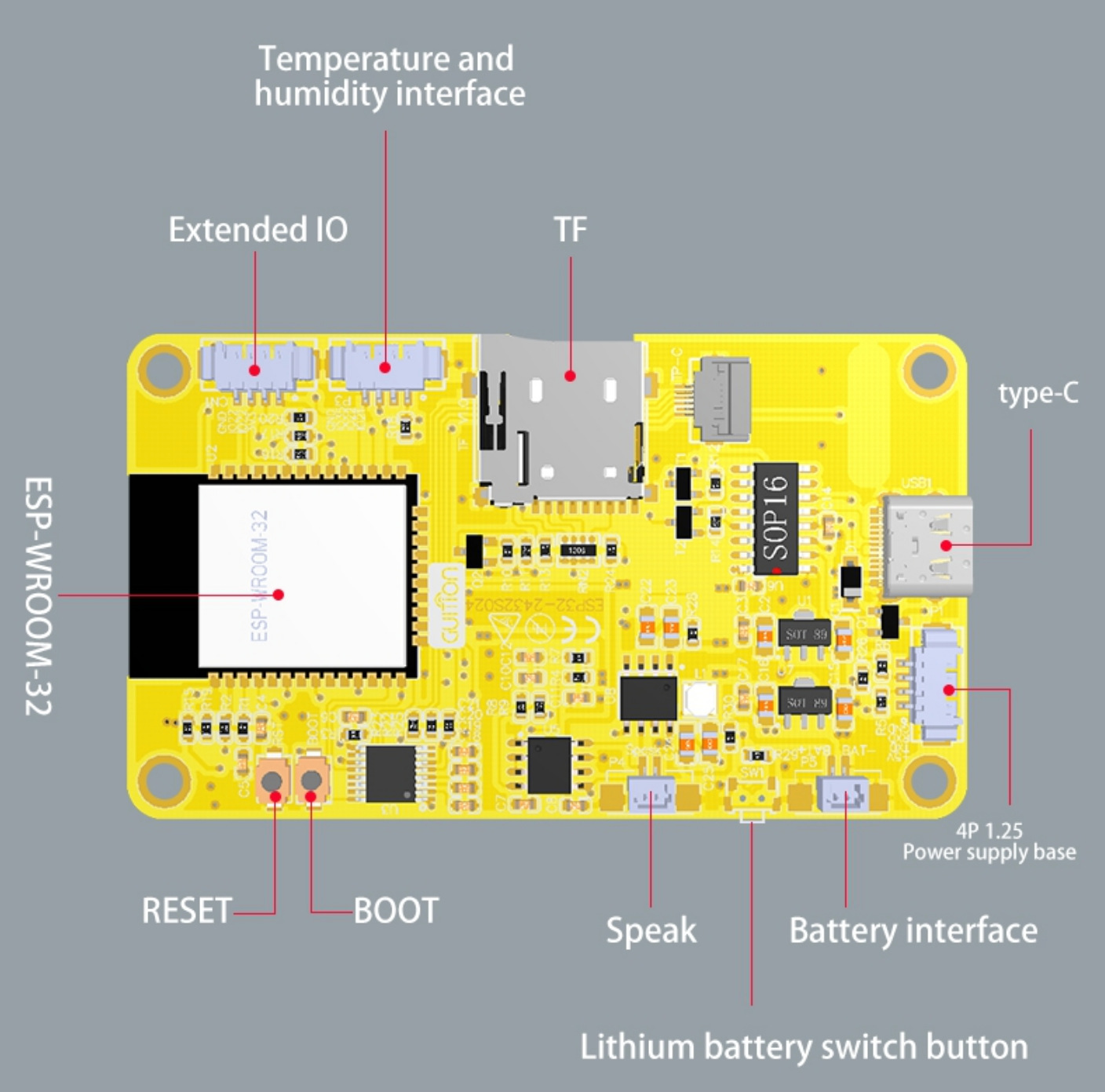

CYD ESP32-2432S024 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
1-3V33.3Vpower-3.3V output on the CN1 connector
2-5VVINpower-5V input on the P1 power/serial connector (switched onto the 5V rail by an AO3401)
3-GNDground-Ground - present on the P1, P3 and CN1 connectors
40IO0BOOTGPIO0control-BOOT button (GPIO0 strapping pin) - usable as an input; reaches no connector
51IO1TXGPIO1uartuartP1 serial connector (through 100R) - U0TXD, shared with CH340 USB programming/serial
63IO3RXGPIO3uartuartP1 serial connector (through 100R, 47k to GND) - U0RXD, shared with CH340 USB programming/serial
721IO21GPIO21safei2c · pwmP3 and CN1 connectors (same net, 10k pull-up on CN1) - default I2C SDA; on the capacitive (C) variant it is also the touch interrupt
822IO22GPIO22safei2c · pwmP3 and CN1 connectors (same net) - default I2C SCL
935IO35GPIO35strappingadcP3 connector - input-only (ADC1), no internal pull-up
1027safe-TFT backlight switch (AO3402 gate); high turns the backlight on - not on any connector
112strapping-TFT data/command (DC) on the ILI9341 display; not free
1212strapping-TFT MISO (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free, and a strapping pin
1313strapping-TFT MOSI (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free
1414strapping-TFT SCK (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free
1515strapping-TFT chip select on the ILI9341 display; not free, and a strapping pin
1633safe-XPT2046 chip select on the resistive (R) variant; CST820 I2C SDA on the capacitive (C) variant
1736strapping-XPT2046 touch interrupt on the resistive (R) variant; input-only. Unconnected on the C and N variants
1832safe-CST820 I2C SCL on the capacitive (C) variant, with a 4.7k pull-up; routed only to the touch FPC socket otherwise
1925safe-CST820 reset on the capacitive (C) variant; routed only to the touch FPC socket otherwise
205strapping-microSD chip select (VSPI); free only when the card slot is unused, and a strapping pin
2118safe-microSD clock (VSPI); free only when the card slot is unused
2219safe-microSD MISO (VSPI); free only when the card slot is unused
2323safe-microSD MOSI (VSPI); free only when the card slot is unused
244safe-Red leg of the onboard RGB LED; drives it LOW (common anode)
2516safe-Green leg of the onboard RGB LED; drives it LOW (common anode)
2617safe-Blue leg of the onboard RGB LED; drives it LOW (common anode)
2726safedac · pwmSpeaker output (DAC2); drives the onboard 8002-class amplifier whose output is the 2-pin speaker socket - the GPIO itself reaches no connector
2834strapping-LDR light sensor on the front face; input-only (ADC1)
25 GPIOs broken out 2 free · 16 need care · 7 to avoid

Start with these

2 pins with no boot or system involvement
IO21IO22

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

16 pins · 10 things to know
IO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

IO1 Default UART0 TX pin for USB-serial programming and console. UART

Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.

IO3 Default UART0 RX pin for USB-serial programming (console input). UART

Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.

IO35 Input-only GPIO (no output driver); ADC1 channel 7. Other

Cannot be used as output; only suitable for input.

GPIO36 XPT2046 touch interrupt on the resistive (R) variant; input-only. Unconnected on the C and N variants onboard hardware

Wired to the touch controller (XPT2046) on this board. The pin is yours if you give that up, but nothing else can share it.

GPIO32GPIO25 Used by the capacitive touch controller (C variant) onboard hardware

Wired to the capacitive touch controller (C variant) on this board. The pin is yours if you give that up, but nothing else can share it.

  • CST820 I2C SCL on the capacitive (C) variant, with a 4.7k pull-up; routed only to the touch FPC socket otherwise
  • CST820 reset on the capacitive (C) variant; routed only to the touch FPC socket otherwise
GPIO5GPIO18GPIO19GPIO23 Used by the microSD card slot onboard hardware

Wired to the microSD card slot on this board. The pin is yours if you give that up, but nothing else can share it.

  • microSD chip select (VSPI); free only when the card slot is unused, and a strapping pin
  • microSD clock (VSPI); free only when the card slot is unused
  • microSD MISO (VSPI); free only when the card slot is unused
  • microSD MOSI (VSPI); free only when the card slot is unused
GPIO4GPIO16GPIO17 Used by the onboard RGB LED onboard hardware

Wired to the onboard RGB LED on this board. The pin is yours if you give that up, but nothing else can share it.

  • Red leg of the onboard RGB LED; drives it LOW (common anode)
  • Green leg of the onboard RGB LED; drives it LOW (common anode)
  • Blue leg of the onboard RGB LED; drives it LOW (common anode)
GPIO26 Speaker output (DAC2); drives the onboard 8002-class amplifier whose output is the 2-pin speaker socket - the GPIO itself reaches no connector onboard hardware

Wired to the speaker amplifier on this board. The pin is yours if you give that up, but nothing else can share it.

GPIO34 LDR light sensor on the front face; input-only (ADC1) onboard hardware

Wired to the LDR light sensor on this board. The pin is yours if you give that up, but nothing else can share it.

Only if you know the tricks

7 pins · 3 things to know
GPIO27 TFT backlight switch (AO3402 gate); high turns the backlight on - not on any connector onboard hardware

Wired to the display backlight on this board, which is soldered down. Driving it from your own code breaks that function.

GPIO2GPIO12GPIO13GPIO14GPIO15 Used by Display (ILI9341) onboard hardware

Wired to Display (ILI9341) on this board, which is soldered down. Driving it from your own code breaks that function.

  • TFT data/command (DC) on the ILI9341 display; not free
  • TFT MISO (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free, and a strapping pin
  • TFT MOSI (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free
  • TFT SCK (HSPI) on the ILI9341 display, shared with the XPT2046 touch on the R variant; not free
  • TFT chip select on the ILI9341 display; not free, and a strapping pin
GPIO33 XPT2046 chip select on the resistive (R) variant; CST820 I2C SDA on the capacitive (C) variant onboard hardware

Wired to the touch controller on this board, which is soldered down. Driving it from your own code breaks that function.

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

Across 28 pins, the CYD ESP32-2432S024 exposes 24 GPIO plus 3V3, 5V and GND for power.

Peripheral wiring is straightforward: TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.

Beyond plain digital I/O you get 1 ADC-capable pin for sensors and battery monitoring, PWM on 3 pins and 1 true DAC output.

16 of the exposed pins carry boot-time or system duties on the ESP32 (IO0, IO1, IO3 and 13 more) - check the guidance above before wiring anything to them. IO21 and IO22 are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Uses a CH340 bridge - install the CH340 driver if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO21 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 4MB (32Mb)
Flash Mode: DIO
Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO21 - wire an LED and resistor to it
void setup() {
  pinMode(21, OUTPUT);
}
void loop() {
  digitalWrite(21, HIGH); delay(500);
  digitalWrite(21, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:cyd-esp32-2432s024]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO21
output:
  - platform: gpio
    pin: 21
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32 · 74.4 × 42.9 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 Classic + LE
Antenna
PCB
I/O
GPIO · ADC
24 · 1
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
USB-C
Serial
CH340
Boot address
0x1000
Display
Screen
TFT · 2.4" · 240x320
Driver
ILI9341
Touch
XPT2046
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · QIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

42.9 mm74.4 mm
74.4 × 42.9 mm
The CYD ESP32-2432S024 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with QIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE. Sibling CYD boards cover the ESP32-S3 and ESP32-C3, so you can change radios or horsepower without changing the footprint.

At $15.00 it's cheaper than most CYD boards, which usually run around $22.

Around the module: a TFT 2.4" 240x320 display with touch, a microSD slot, a speaker connector, an ambient-light sensor and Reset/Boot buttons.

  • Capacitive-touch variant (ESP32-2432S024C) swaps the XPT2046 for a CST820 controller
  • Discrete active-low RGB LED (GPIO4 red, GPIO16 green, GPIO17 blue) - not addressable
  • Onboard FM8002A audio amplifier with a 2-pin JST speaker connector on GPIO26
  • LDR ambient-light sensor on GPIO34
  • TFT backlight control on GPIO27 (AO3402 switch)
