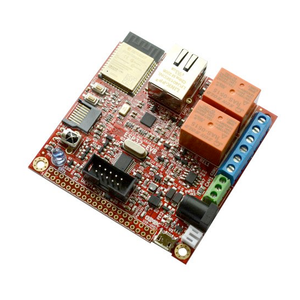

OLIMEX ESP32-EVB
by Olimex
ESP32 board with relays and Ethernet - built for industrial control and automation systems.

On this page

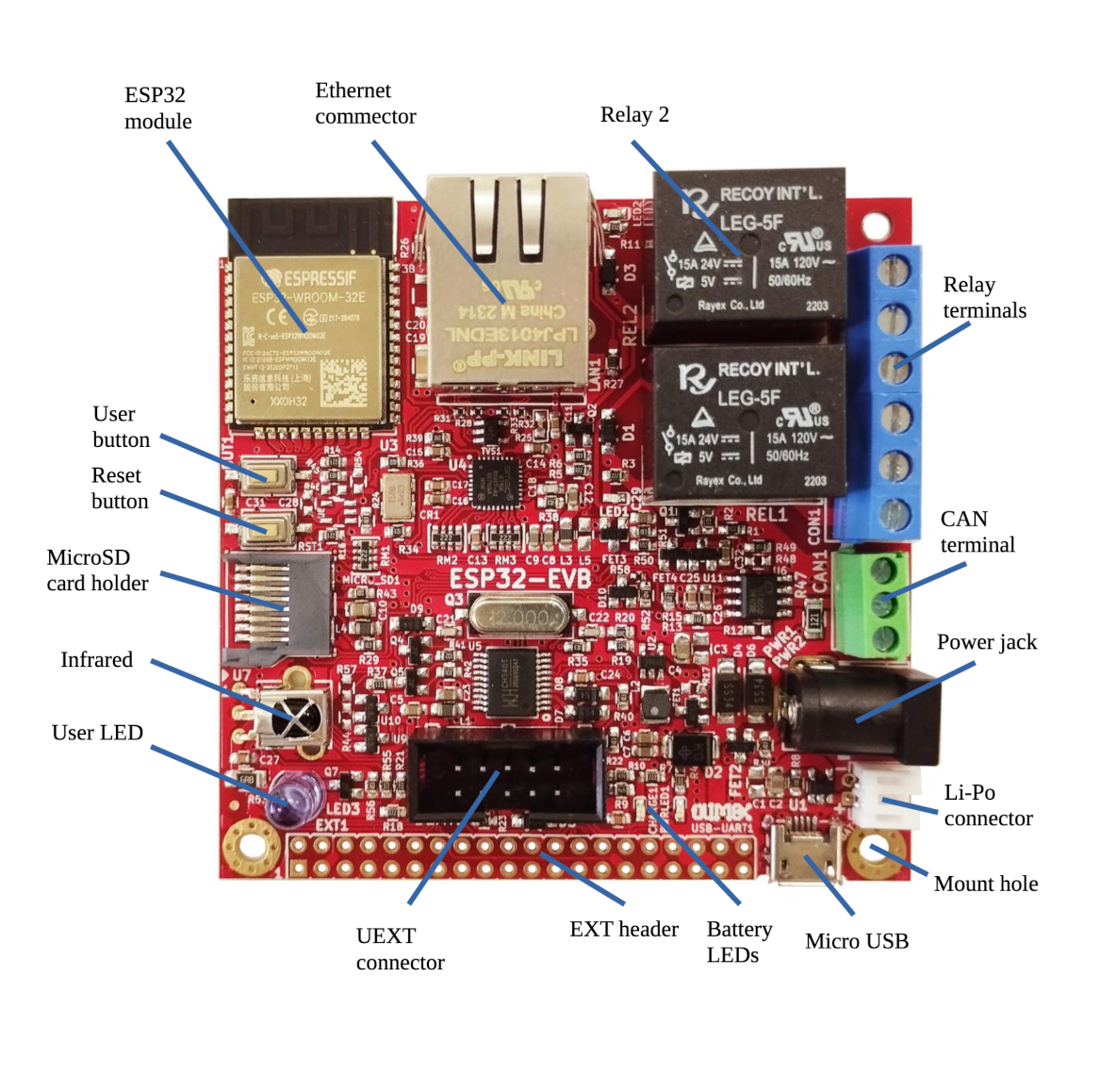

OLIMEX ESP32-EVB Pinout
11 pins · 2.54 mm pitch| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 1 | TXPWM | uart | uart | |
| 2 | 2 | MOSIPWM | strapping | spi | |
| 3 | 3 | RXPWM | uart | uart | |
| 4 | 4 | TX1PWM | safe | - | |
| 5 | 13 | SDAPWM | strapping | i2c | |
| 6 | 14 | SCKPWM | strapping | spi | |
| 7 | 15 | MISOPWM | strapping | spi | |
| 8 | 16 | SCLPWM | safe | i2c | |
| 9 | 17 | SSPWM | safe | spi | |
| 10 | 34 | KEY_BUILTIN | strapping | - | |
| 11 | 36 | RX1 | strapping | - |
Start with these
3 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
8 pins · 8 things to knowTXGPIO1 Default UART0 TX pin for USB-serial programming and console. UART
Connected to on-board USB-UART for uploading and logs; drives serial output at boot, so using as GPIO can disrupt programming or console.
MOSIGPIO2 Bootstrapping pin; internal pull-down. Any level boots normally from flash, but it must be LOW or floating (with GPIO0 LOW) to enter download mode. Strapping
If held HIGH at reset, the chip cannot enter download mode, so flashing fails.
RXGPIO3 Default UART0 RX pin for USB-serial programming (console input). UART
Used for receiving data from USB-UART (programming); also pulled HIGH at boot for console communication, so using as GPIO can disrupt uploads.
SDAGPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG
Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.
SCKGPIO14 JTAG mode select pin (TMS); also HSPI CLK and PWM-capable GPIO. JTAG
Used for JTAG debugging (TMS); driving it as GPIO may interfere with JTAG or produce spurious signals at boot.
MISOGPIO15 Bootstrapping pin; JTAG TDO; controls UART0 boot log output; also HSPICS0 (secondary SPI CS). Strapping
Keep HIGH during boot (internal PU); if LOW at reset, the ROM boot log on U0TXD is silenced and the SDIO slave timing changes.
KEY_BUILTINGPIO34 Input-only GPIO (no output driver); ADC1 channel 6. Other
Cannot be used as output (no drive capability); only suitable for analog/digital input.
RX1GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other
Cannot be used as output; only suitable for input (e.g., analog read).
All 11 pins on the OLIMEX ESP32-EVB are usable GPIO, spaced at the standard 2.54 mm pitch.
Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO13 and SCL on GPIO16; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO1 and GPIO3 cover serial logging and flashing.
8 of the exposed pins carry boot-time or system duties on the ESP32 (TX, MOSI, RX and 5 more) - check the guidance above before wiring anything to them. TX1, SCL and SS are free of any such role - the safest first picks.
Getting started
flash your first firmware in ~2 minutesBoard: ESP32 Dev Module Flash Size: 4MB (32Mb) Flash Mode: DIO Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS) Upload Speed: 921600
// toggle GPIO4 - wire an LED and resistor to it
void setup() {
pinMode(4, OUTPUT);
}
void loop() {
digitalWrite(4, HIGH); delay(500);
digitalWrite(4, LOW); delay(500);
}[env:esp32-evb]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600esp32dev - or type it after board =.esp32:
board: esp32dev
variant: esp32
framework:
type: esp-idf
# blink - GPIO4
output:
- platform: gpio
pin: 4
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32dev (same ids as PlatformIO).esptool.py --chip esp32 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x1000 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Specifications
ESP32 · 75 × 75 mm · vs other ESP32 chips →Dimensions
About this board
Inside sits the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.
At $23.23 it's on the expensive side for an ESP32 board - most land around $20.
Only 11 GPIO are broken out, where most ESP32 boards manage about 24 - worth checking the pinout covers what you need.
Around the module: a microSD slot, an IR transceiver, a CAN bus interface (MCP2562-E), 2 relays, wired Ethernet (LAN8710A), battery charging (BL4054B) and Reset/User buttons.
- UEXT connector for Olimex sensors/modules
- External u.FL antenna on -EA variants (ESP32-WROOM-32UE)
- Industrial temperature variants (-40 to +85°C)
- Battery-only mode disables relays, CAN and USB (no step-up converter)
