OLIMEX ESP32-PoE-ISO

PoE-enabled ESP32 with electrical isolation - designed for industrial and secure Ethernet IoT.

Micro-USB

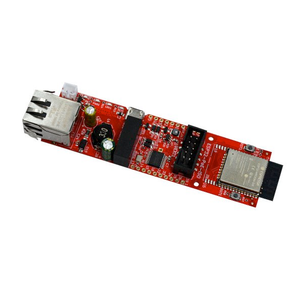

OLIMEX ESP32-PoE-ISO board
98.15 × 28 mm
ESP32
MCU
240MHz
clock
4MB
flash
520KB
SRAM
32· 16 ADC
GPIO
BLE 4.2+ WiFi
radio
On this page

OLIMEX ESP32-PoE-ISO Pinout

38 pins · 2.54 mm pitch

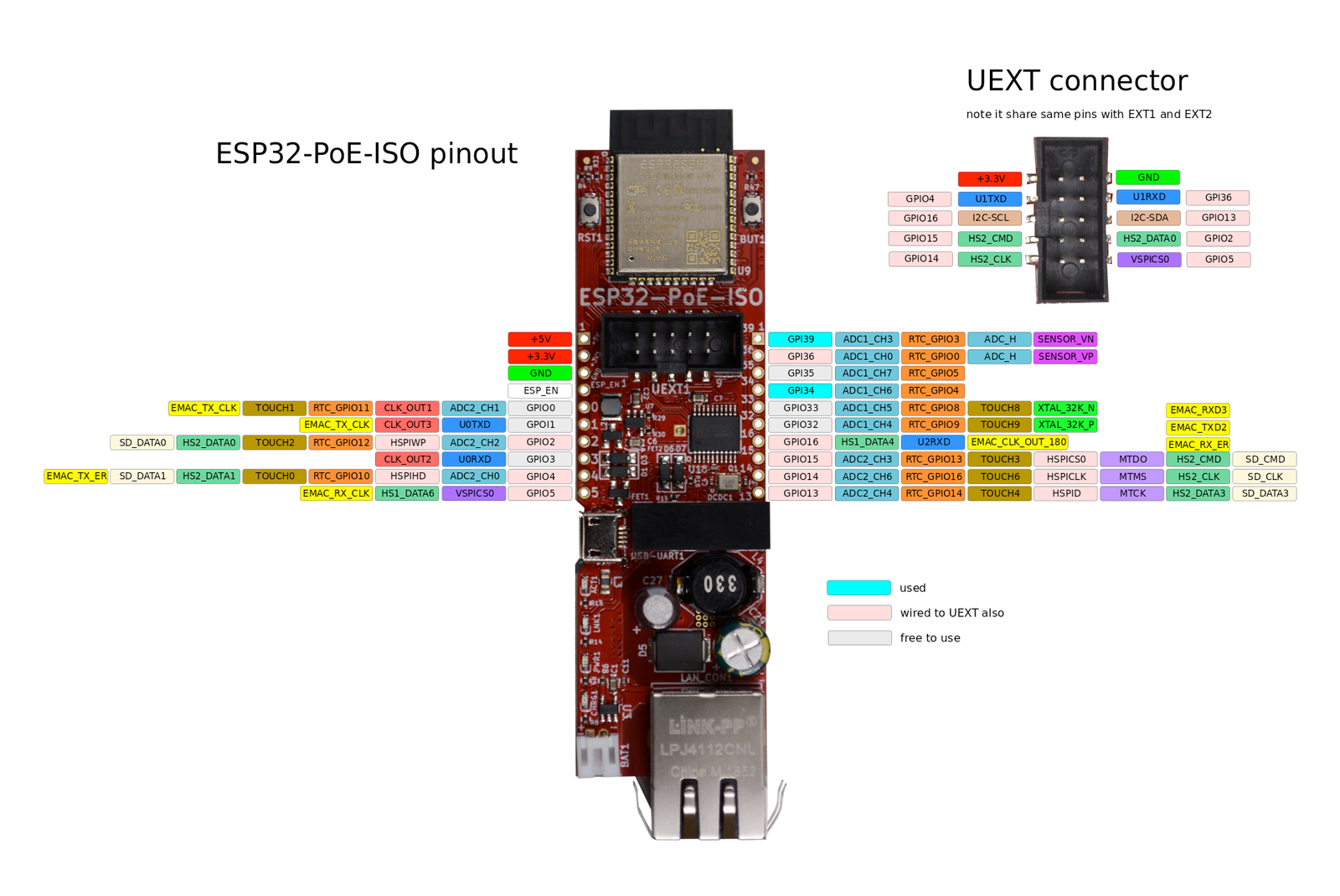

OLIMEX ESP32-PoE-ISO pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
1-GNDground-BAT1 pin 2: battery negative
2-VBATBAT+power-BAT1 pin 1: LiPo positive, charged by the TP4054 (U3) from USB or PoE 5V; check the lead polarity before plugging in
35GPIO5SPI_CSstrappingspi · pwmEXT1 pin 10 and UEXT pin 10 (SSEL); 10k pull-up (R36); strapping pin
44GPIO4U1TXDuartadc · touch · uart · pwmEXT1 pin 9 and UEXT pin 3 (TXD)
53GPIO3U0RXDuartuart · pwmEXT1 pin 8: UART0 RX from the CH340X USB bridge (through D6)
62GPIO2SD_DATA0strappingadc · touch · pwmEXT1 pin 7 and UEXT pin 8 (MOSI): microSD DATA0 (1-bit mode, on the back); also reaches the auto-program diode D2; strapping pin
71GPIO1U0TXDuartuart · pwmEXT1 pin 6: UART0 TX to the CH340X USB bridge (through D7)
80GPIO0strappingadc · touch · pwmEXT1 pin 5: pulled low through D2 by the CH340X auto-program circuit; not the Ethernet clock on the WROOM board (that is GPIO17); strapping pin
9-ESP_ENRSTcontrol-EXT1 pin 4: the ESP32 enable / reset line, shared with the RST1 button
10-GNDground-EXT1 pin 3, and UEXT pin 2
11-+3.3V3V3power-EXT1 pin 2 and UEXT pin 1: the 3.3 V rail
12-+5Vpower-EXT1 pin 1: the 5 V rail - an output on USB or PoE power, or an input to power the board (never with USB connected)
1313GPIO13I2C_SDAstrappingadc · touch · i2c · pwmEXT2 pin 10 and UEXT pin 6 (SDA); 2.2k pull-up (R35)
1414GPIO14SD_CLKstrappingadc · touch · pwmEXT2 pin 9 and UEXT pin 9 (SCK): microSD CLK
1515GPIO15SD_CMDstrappingadc · touch · pwmEXT2 pin 8 and UEXT pin 7 (MISO): microSD CMD; strapping pin (MTDO)
1616GPIO16I2C_SCLuartuart · i2c · pwmEXT2 pin 7 and UEXT pin 5 (SCL); 2.2k pull-up (R31). The WROOM board uses GPIO16 itself; only a WROVER build would reroute SCL to GPIO33
1732GPIO32safeadc · touch · pwmEXT2 pin 6
1833GPIO33safeadc · touch · pwmEXT2 pin 5
1934GPI34BUT1strappingadcEXT2 pin 4: the user button BUT1 (to GND through R47 220R), 10k pull-up (R48); input-only
2035GPI35BAT_SENSEstrappingadcEXT2 pin 3: battery voltage through the R7 / R16 470k:470k divider (half of VBAT), fitted by default on the ISO; input-only
2136GPI36U1RXDstrappingadc · uartEXT2 pin 2, and UEXT pin 4 (RXD) through diode D4; 10k pull-up (R37); input-only
2239GPI39EXT_PWR_SENSEstrappingadcEXT2 pin 1: senses the 5 V rail through the R4 47k / R9 100k divider (external power present); input-only
2318GPIO18MDIOsafepwmRMII management data to the LAN8710A Ethernet PHY (not brought out)
2423GPIO23MDCsafepwmRMII management clock to the LAN8710A Ethernet PHY (not brought out)
2519GPIO19EMAC_TXD0safepwmRMII TXD0 to the LAN8710A Ethernet PHY (not brought out)
2622GPIO22EMAC_TXD1safepwmRMII TXD1 to the LAN8710A Ethernet PHY (not brought out)
2721GPIO21EMAC_TX_ENsafepwmRMII TX enable to the LAN8710A Ethernet PHY (not brought out)
2825GPIO25EMAC_RXD0safeadc · dac · pwmRMII RXD0 to the LAN8710A Ethernet PHY (not brought out)
2926GPIO26EMAC_RXD1safeadc · dac · pwmRMII RXD1 to the LAN8710A Ethernet PHY (not brought out)
3027GPIO27EMAC_CRS_DVsafeadc · touch · pwmRMII CRS_DV to the LAN8710A Ethernet PHY (not brought out)
3117GPIO17EMAC_CLKsafepwmthe 50 MHz RMII clock OUT to the LAN8710A XTAL1 (EMAC_CLK_OUT_180; ETH_CLOCK_GPIO17_OUT in Arduino) - not brought out
3212GPIO12PHY_PWRstrappingadc · touch · pwmswitches the Ethernet PHY power through T1 - using it breaks Ethernet; not brought out; strapping pin (MTDI)
336GPIO6FLASH_CLKstrapping-wired to the module's SPI flash inside the WROOM-32E - never usable
347GPIO7FLASH_D0strapping-wired to the module's SPI flash inside the WROOM-32E - never usable
358GPIO8FLASH_D1strapping-wired to the module's SPI flash inside the WROOM-32E - never usable
369GPIO9FLASH_D2strapping-wired to the module's SPI flash inside the WROOM-32E - never usable
3710GPIO10FLASH_D3strapping-wired to the module's SPI flash inside the WROOM-32E - never usable
3811GPIO11FLASH_CMDstrapping-wired to the module's SPI flash inside the WROOM-32E - never usable
32 GPIOs broken out 4 free · 12 need care · 16 to avoid

Start with these

4 pins with no boot or system involvement
GPIO4GPIO16GPIO32GPIO33

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

12 pins · 9 things to know
GPIO5 Bootstrapping pin; internal pull-up; VSPI CS0 (default SPI chip-select); acts as FSPIWP (flash write-protect) on internal-flash variants. Strapping

Sampled at reset (internal pull-up) with MTDO to set the SDIO slave timing; this only matters when the ESP32 runs as an SDIO slave.

GPIO3GPIO1 Used by the CH340X USB serial bridge onboard hardware

Wired to the CH340X USB serial bridge on this board. The pin is yours if you give that up, but nothing else can share it.

  • GPIO3EXT1 pin 8: UART0 RX from the CH340X USB bridge (through D6)
  • GPIO1EXT1 pin 6: UART0 TX to the CH340X USB bridge (through D7)
GPIO2GPIO14GPIO15 Used by the microSD card slot onboard hardware

Wired to the microSD card slot on this board. The pin is yours if you give that up, but nothing else can share it.

  • GPIO2EXT1 pin 7 and UEXT pin 8 (MOSI): microSD DATA0 (1-bit mode, on the back); also reaches the auto-program diode D2; strapping pin
  • GPIO14EXT2 pin 9 and UEXT pin 9 (SCK): microSD CLK
  • GPIO15EXT2 pin 8 and UEXT pin 7 (MISO): microSD CMD; strapping pin (MTDO)
GPIO0 Bootstrapping pin (enter bootloader when low); internal pull-up. Strapping

Must be HIGH during boot for normal startup; if held LOW on reset, forces flash programming mode.

GPIO13 JTAG clock pin (TCK); also ADC2 channel 4 / Touch4 input. JTAG

Used for JTAG debugging (TCK); avoid using as GPIO if JTAG is needed.

GPI34GPIO34 EXT2 pin 4: the user button BUT1 (to GND through R47 220R), 10k pull-up (R48); input-only onboard hardware

Wired to the user button on this board. The pin is yours if you give that up, but nothing else can share it.

GPI35GPIO35 EXT2 pin 3: battery voltage through the R7 / R16 470k:470k divider (half of VBAT), fitted by default on the ISO; input-only onboard hardware

Wired to the battery sense divider on this board. The pin is yours if you give that up, but nothing else can share it.

GPI36GPIO36 Input-only GPIO (no output); ADC1 channel 0, Hall sensor VP. Other

Cannot be used as output; only suitable for input (e.g., analog read).

GPI39GPIO39 EXT2 pin 1: senses the 5 V rail through the R4 47k / R9 100k divider (external power present); input-only onboard hardware

Wired to the external-power sense divider on this board. The pin is yours if you give that up, but nothing else can share it.

Only if you know the tricks

16 pins · 3 things to know
GPIO18GPIO23GPIO19GPIO22GPIO21GPIO25GPIO26GPIO27GPIO17 Used by the LAN8710A Ethernet PHY onboard hardware

Wired to the LAN8710A Ethernet PHY on this board, which is soldered down. Driving it from your own code breaks that function.

  • GPIO18RMII management data to the LAN8710A Ethernet PHY (not brought out)
  • GPIO23RMII management clock to the LAN8710A Ethernet PHY (not brought out)
  • GPIO19RMII TXD0 to the LAN8710A Ethernet PHY (not brought out)
  • GPIO22RMII TXD1 to the LAN8710A Ethernet PHY (not brought out)
  • GPIO21RMII TX enable to the LAN8710A Ethernet PHY (not brought out)
  • GPIO25RMII RXD0 to the LAN8710A Ethernet PHY (not brought out)
  • GPIO26RMII RXD1 to the LAN8710A Ethernet PHY (not brought out)
  • GPIO27RMII CRS_DV to the LAN8710A Ethernet PHY (not brought out)
  • GPIO17the 50 MHz RMII clock OUT to the LAN8710A XTAL1 (EMAC_CLK_OUT_180; ETH_CLOCK_GPIO17_OUT in Arduino) - not brought out
GPIO12 switches the Ethernet PHY power through T1 - using it breaks Ethernet; not brought out; strapping pin (MTDI) onboard hardware

Wired to the Ethernet PHY power switch on this board, which is soldered down. Driving it from your own code breaks that function.

GPIO6GPIO7GPIO8GPIO9GPIO10GPIO11 wired to the module's SPI flash inside the WROOM-32E - never usable onboard hardware

Wired to the module's SPI flash on this board, which is soldered down. Driving it from your own code breaks that function.

  • GPIO6wired to the module's SPI flash inside the WROOM-32E - never usable
  • GPIO7wired to the module's SPI flash inside the WROOM-32E - never usable
  • GPIO8wired to the module's SPI flash inside the WROOM-32E - never usable
  • GPIO9wired to the module's SPI flash inside the WROOM-32E - never usable
  • GPIO10wired to the module's SPI flash inside the WROOM-32E - never usable
  • GPIO11wired to the module's SPI flash inside the WROOM-32E - never usable
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The OLIMEX ESP32-PoE-ISO pinout brings out 38 pins at a 2.54 mm pitch - 32 usable GPIO alongside the GND, VBAT, +3.3V and +5V power rails.

On the analog side there are 16 ADC-capable pins for sensors and battery monitoring, PWM on 22 pins, 10 capacitive-touch inputs and 2 true DAC outputs.

If you want zero surprises, GPIO4, GPIO16, GPIO32 and GPIO33 are free of any such role - the safest first picks. 12 of the exposed pins carry boot-time or system duties on the ESP32 (GPIO5, GPIO3, GPIO2 and 9 more).

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO32 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32 Dev Module"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32 Dev Module
Flash Size: 4MB (32Mb)
Flash Mode: DIO
Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32 Dev Module
blink.ino Copy
// toggle GPIO32 - wire an LED and resistor to it
void setup() {
  pinMode(32, OUTPUT);
}
void loop() {
  digitalWrite(32, HIGH); delay(500);
  digitalWrite(32, LOW);  delay(500);
}
board to selectesp32dev⧉ copy
platformio.ini Copy
[env:esp32-poe-iso]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32dev - or type it after board =.
board to selectesp32dev⧉ copy
device.yaml Copy
esp32:
  board: esp32dev
  variant: esp32
  framework:
    type: esp-idf

# blink - GPIO32
output:
  - platform: gpio
    pin: 32
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32dev (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x1000 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32 · 98.15 × 28 mm · vs other ESP32 chips →
Compute
MCU
ESP32
Clock
240 MHz
SRAM · Flash
520 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
4.2 Classic + LE
Antenna
PCB
I/O
GPIO · ADC
32 · 16
UART · I²C · SPI
3 · 2 · 2
PWM
16 channels
Power
USB
Micro-USB
Serial
CH340T
Boot address
0x1000
Electrical
Input
PoE (802.3af) · 5V Micro-USB · Li-Po battery
Consumption
200µA sleep
Regulator
-
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

28 mm98.15 mm
98.15 × 28 mm · pin pitch 2.54 mm
The OLIMEX ESP32-PoE-ISO uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

At its core is the ESP32 - a dual-core Xtensa with both Bluetooth Classic and BLE.

Expect to pay about $29.06 - above the ~$20 typical for ESP32 boards.

32 GPIO are broken out - more than most ESP32 boards, so the pin budget is rarely the constraint.

Onboard you'll find a microSD slot, Power over Ethernet (PoE), wired Ethernet (LAN8710A), battery charging and Reset/User buttons.

  • 3000VDC galvanic isolation between PoE and board circuitry
  • IEEE 802.3af PoE (Si3402-B controller)
  • UEXT connector for Olimex modules
  • External antenna (u.FL) available on -EA variant
