KY-024 Linear Magnetic Hall Sensor Module
View on Amazon
Overview

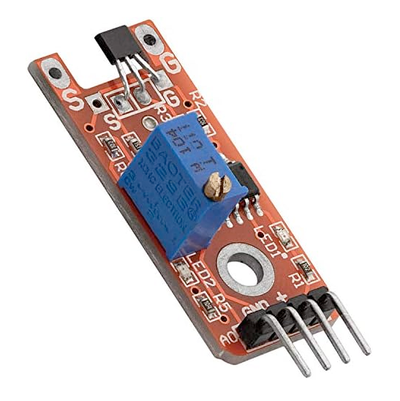

About KY-024 Linear Magnetic Hall Sensor Module
The KY-024 Linear Magnetic Hall Sensor Module is designed to detect magnetic fields. It features both analog and digital outputs: the analog output provides a voltage proportional to the magnetic field strength, while the digital output activates when the magnetic field exceeds a user-defined threshold, adjustable via an onboard potentiometer. This module is commonly used in applications such as speed sensing, position detection, and magnetic field measurement.
Get Your KY-024
Starting from
$2 per unit
Prices are subject to change. We earn from qualifying purchases as an Amazon Associate.
KY-024 Specifications
Complete technical specification details for KY-024 Linear Magnetic Hall Sensor Module
📊 Technical Parameters
KY-024 Pinout
The **KY-024** is a 4-pin linear magnetic Hall sensor module with dual outputs:

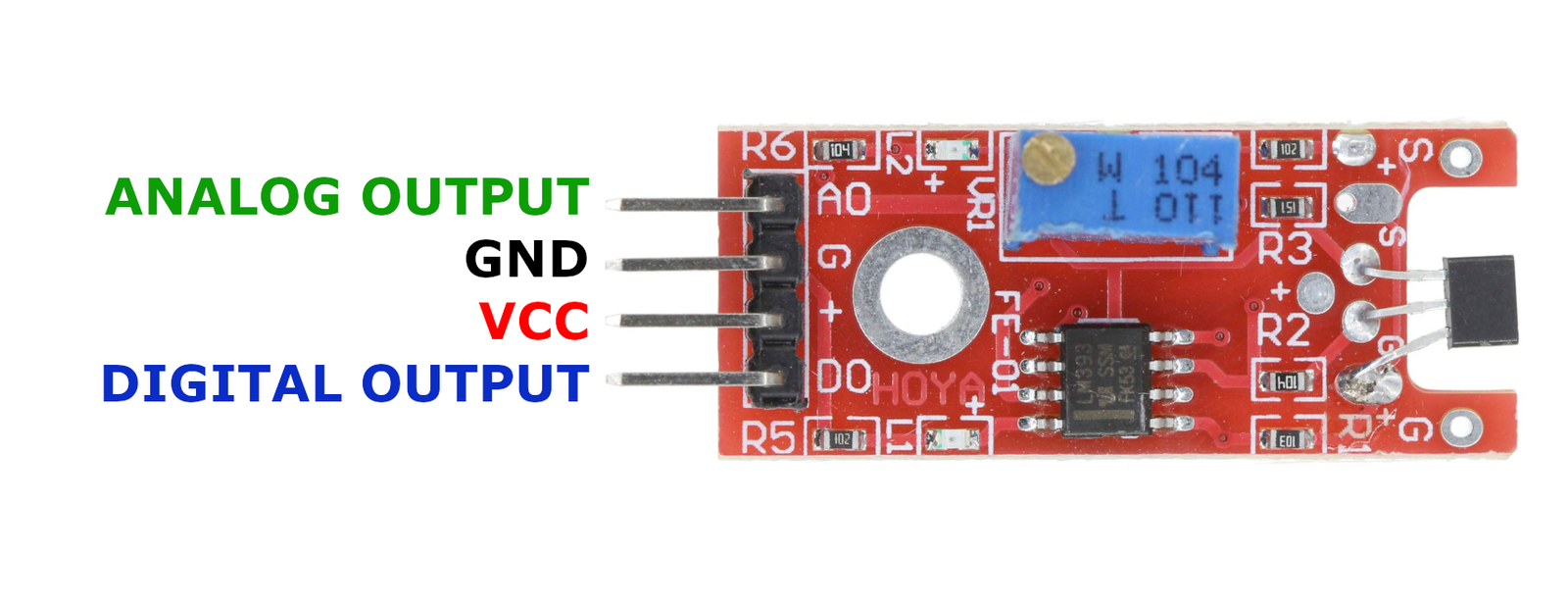

Visual Pinout Diagram
Pin Types
Quick Tips
**Interface**: Dual output (analog + digital with comparator),🧲 **Sensor**: Linear Hall effect sensor
**Analog Output**: Continuous voltage reading proportional to field strength,🚨 **Digital Output**: Threshold-based trigger (adjustable via potentiometer)
**Power**: 3.3V or 5V operation,🎯 **Applications**: Speed sensing, position detection, magnetic field measurement, proximity detection
Pin Descriptions
| Pin Name | Type | Description | Notes |
|---|---|---|---|
1 GND | Power | Ground connection | |
2 +V | Power | Power supply | 3.3V or 5V |
3 D0 | Communication | Digital output | HIGH when magnetic field exceeds threshold |
4 A0 | Communication | Analog output | Voltage proportional to magnetic field strength |
Wiring KY-024 to ESP32
To interface the **KY-024** with an **ESP32** for magnetic field detection:

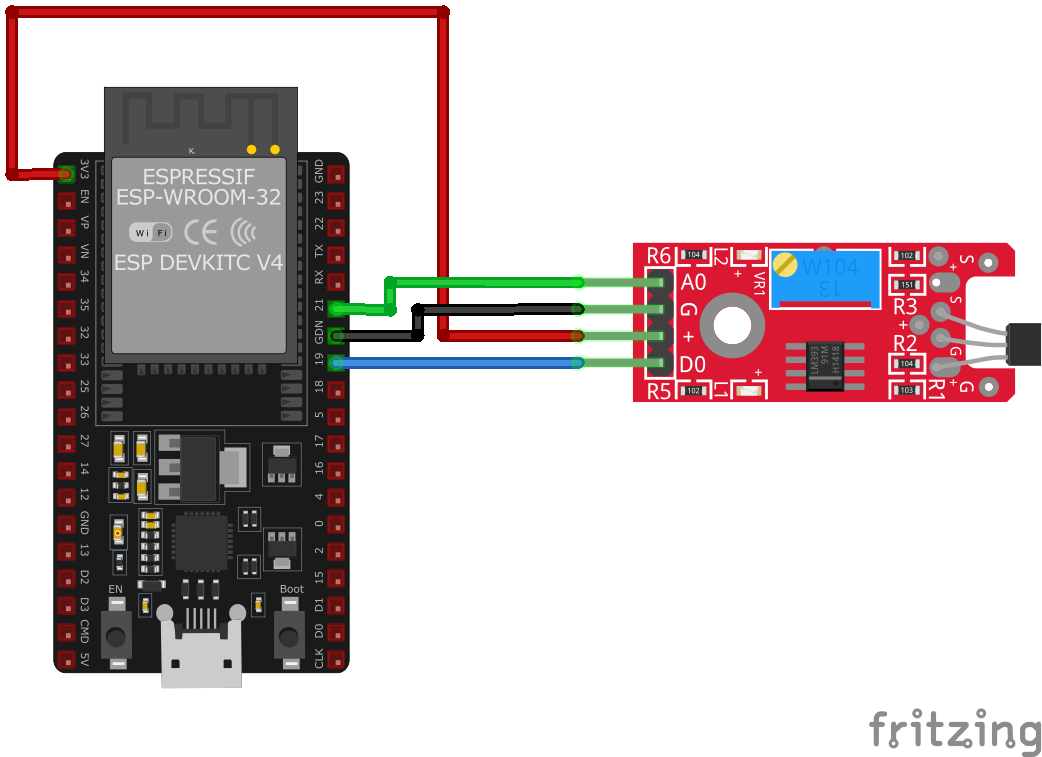

Visual Wiring Diagram
Connection Status
Protocol
Pin Connections
| KY-024 Pin | Connection | ESP32 Pin | Description |
|---|---|---|---|
1 GND Required | GND | Ground | |
2 +V Required | 3.3V or 5V | Power supply | |
3 D0 Optional | GPIO17 | Digital input (any GPIO) | |
4 A0 Optional | GPIO36 | Analog input (ADC pin) |
**Dual Use**: Use analog for precise field strength or digital for threshold detection
**ADC Pins**: Use GPIO32-39 for analog input on ESP32
**Voltage**: 3.3V recommended for ESP32 ADC compatibility
**Adjustment**: Turn onboard potentiometer to set digital trigger threshold
**Linear**: Output voltage varies proportionally with magnetic field strength
KY-024 Troubleshooting
Common issues and solutions to help you get your sensor working
Common Issues
Issue: The sensor does not provide any output when exposed to a magnetic field.
Solutions:
- Verify all connections are secure and correctly placed.
- Ensure the module is receiving the appropriate voltage (3.3V or 5V).
- Adjust the potentiometer to set the correct sensitivity threshold.
- Test the sensor with a known magnetic source to confirm functionality.
Issue: The analog output fluctuates without any change in the magnetic field.
Solutions:
- Check for electromagnetic interference from nearby devices.
- Ensure that the power supply is stable and free from noise.
- Use shielded cables for analog signal transmission if necessary.
Debugging Tips
Use the Serial Monitor to check for error messages and verify the sensor's output. Add debug prints in your code to track the sensor's state.
Use a multimeter to verify voltage levels and check for continuity in your connections. Ensure the power supply is stable and within the sensor's requirements.
Additional Resources
KY-024 Programming Examples
Ready-to-use code examples for different platforms and frameworks
// Declaration and initialization of the input pins
int analog_input = A0; // Analog output of the sensor
int digital_input = 3; // Digital output of the sensor
void setup() {
pinMode(analog_input, INPUT);
pinMode(digital_input, INPUT);
Serial.begin(9600); // Serial output with 9600 bps
Serial.println("KY-024 Magnetic field detection");
}
void loop() {
float analog_value;
int digital_value;
// Current values are read out, converted to the voltage value...
analog_value = analogRead(analog_input) * (5.0 / 1023.0);
digital_value = digitalRead(digital_input);
//... and printed at this point
Serial.print("Analog voltage value: ");
Serial.print(analog_value, 4);
Serial.print(" V, Threshold value: ");
if (digital_value == 1) {
Serial.println("reached");
} else {
Serial.println("not reached");
}
Serial.println("-------------------------------");
delay(1000);
}This Arduino code reads the analog voltage from the KY-024 sensor's analog output and checks the digital output to determine if the magnetic field strength has surpassed the set threshold. The results are printed to the serial monitor every second.
#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/adc.h"
#include "driver/gpio.h"
#define HALL_SENSOR_ANALOG_PIN ADC1_CHANNEL_0 // GPIO36
#define HALL_SENSOR_DIGITAL_PIN GPIO_NUM_17
void app_main(void) {
adc1_config_width(ADC_WIDTH_BIT_12);
adc1_config_channel_atten(HALL_SENSOR_ANALOG_PIN, ADC_ATTEN_DB_11);
gpio_set_direction(HALL_SENSOR_DIGITAL_PIN, GPIO_MODE_INPUT);
printf("KY-024 Magnetic Field Detection\n");
while (1) {
int analog_value = adc1_get_raw(HALL_SENSOR_ANALOG_PIN);
int digital_value = gpio_get_level(HALL_SENSOR_DIGITAL_PIN);
printf("Analog Value: %d, Digital Threshold: %s\n", analog_value, digital_value ? "Reached" : "Not Reached");
vTaskDelay(pdMS_TO_TICKS(1000));
}
}This ESP-IDF code reads the analog value from the KY-024 sensor using ADC on GPIO36 and monitors the digital output on GPIO17 to determine if the magnetic field threshold is exceeded. The results are printed every second.
sensor:
- platform: adc
pin: GPIO36
name: "KY-024 Magnetic Field Strength"
update_interval: 1s
binary_sensor:
- platform: gpio
pin:
number: GPIO17
mode: INPUT_PULLUP
name: "KY-024 Magnetic Threshold Trigger"This ESPHome configuration reads the KY-024 sensor's analog output on GPIO36 and detects the threshold trigger using GPIO17 as a binary sensor. Updates are logged every second.
platformio.ini
[env:esp32]
platform = espressif32
board = esp32dev
framework = arduinomain.cpp
#include <Arduino.h>
#define HALL_SENSOR_ANALOG_PIN A0
#define HALL_SENSOR_DIGITAL_PIN 17
void setup() {
pinMode(HALL_SENSOR_DIGITAL_PIN, INPUT);
Serial.begin(115200);
Serial.println("KY-024 Magnetic Sensor Test");
}
void loop() {
int analog_value = analogRead(HALL_SENSOR_ANALOG_PIN);
int digital_value = digitalRead(HALL_SENSOR_DIGITAL_PIN);
Serial.printf("Analog: %d, Digital: %s\n", analog_value, digital_value ? "Threshold Reached" : "Not Reached");
delay(1000);
}This PlatformIO code reads the KY-024 sensor's analog output and monitors the digital threshold trigger. The values are printed every second.
import machine
import time
HALL_SENSOR_ANALOG_PIN = machine.ADC(machine.Pin(36))
HALL_SENSOR_ANALOG_PIN.atten(machine.ADC.ATTN_11DB)
HALL_SENSOR_DIGITAL_PIN = machine.Pin(17, machine.Pin.IN, machine.Pin.PULL_UP)
while True:
analog_value = HALL_SENSOR_ANALOG_PIN.read()
digital_value = HALL_SENSOR_DIGITAL_PIN.value()
print("Analog:", analog_value, "Digital:", "Threshold Reached" if digital_value else "Not Reached")
time.sleep(1)This MicroPython script reads the KY-024 sensor's analog signal using ADC on GPIO36 and monitors the digital output on GPIO17. The readings are printed every second.
Wrapping Up KY-024
The ESP32 KY-024 Linear Magnetic Hall Sensor Module is a powerful KY-0xx module sensor that offers excellent performance and reliability. With support for multiple development platforms including Arduino, ESP-IDF, ESPHome, PlatformIO, and MicroPython, it's a versatile choice for your IoT projects.
Best Practices
For optimal performance, ensure proper wiring and follow the recommended configuration for your chosen development platform.
Safety First
Always verify power supply requirements and pin connections before powering up your project to avoid potential damage.
Ready to Start Building?
Now that you have all the information you need, it's time to integrate the KY-024 into your ESP32 project and bring your ideas to life!
