BPI-Leaf-S3

A development board by Banana Pi featuring the ESP32-S3, designed for IoT and embedded applications.

USB-C Native USB

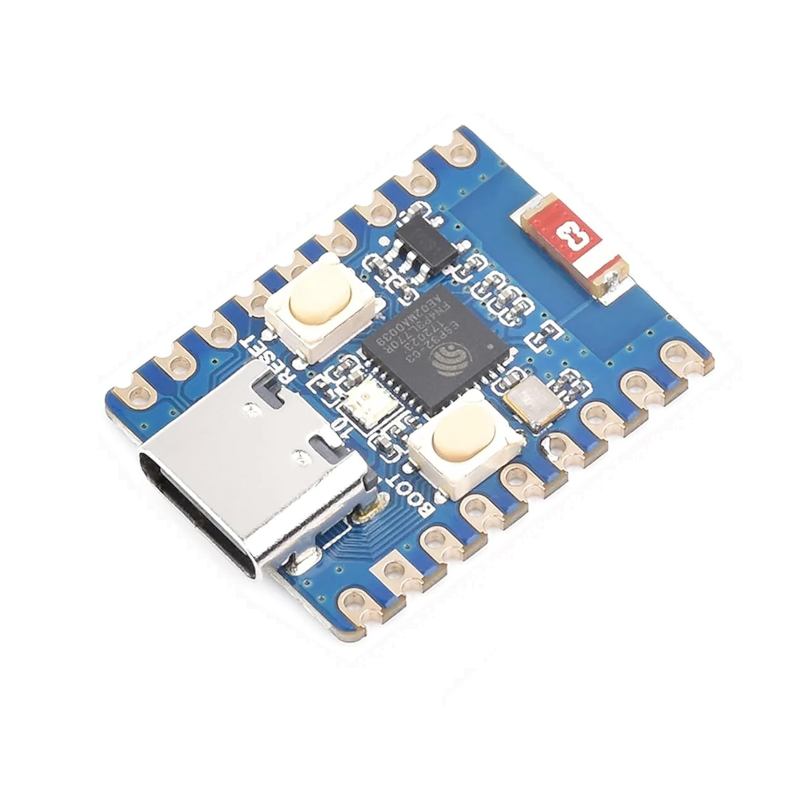

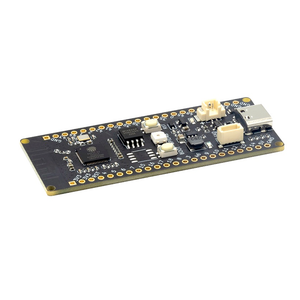

BPI-Leaf-S3 board
65.25 × 26 mm
ESP32-S3
MCU
240MHz
clock
8MB
flash
512KB
SRAM
23· 20 ADC
GPIO
BLE 5.0+ WiFi
radio
On this page

Pinout

23 pins · 2.54 mm pitch
View:

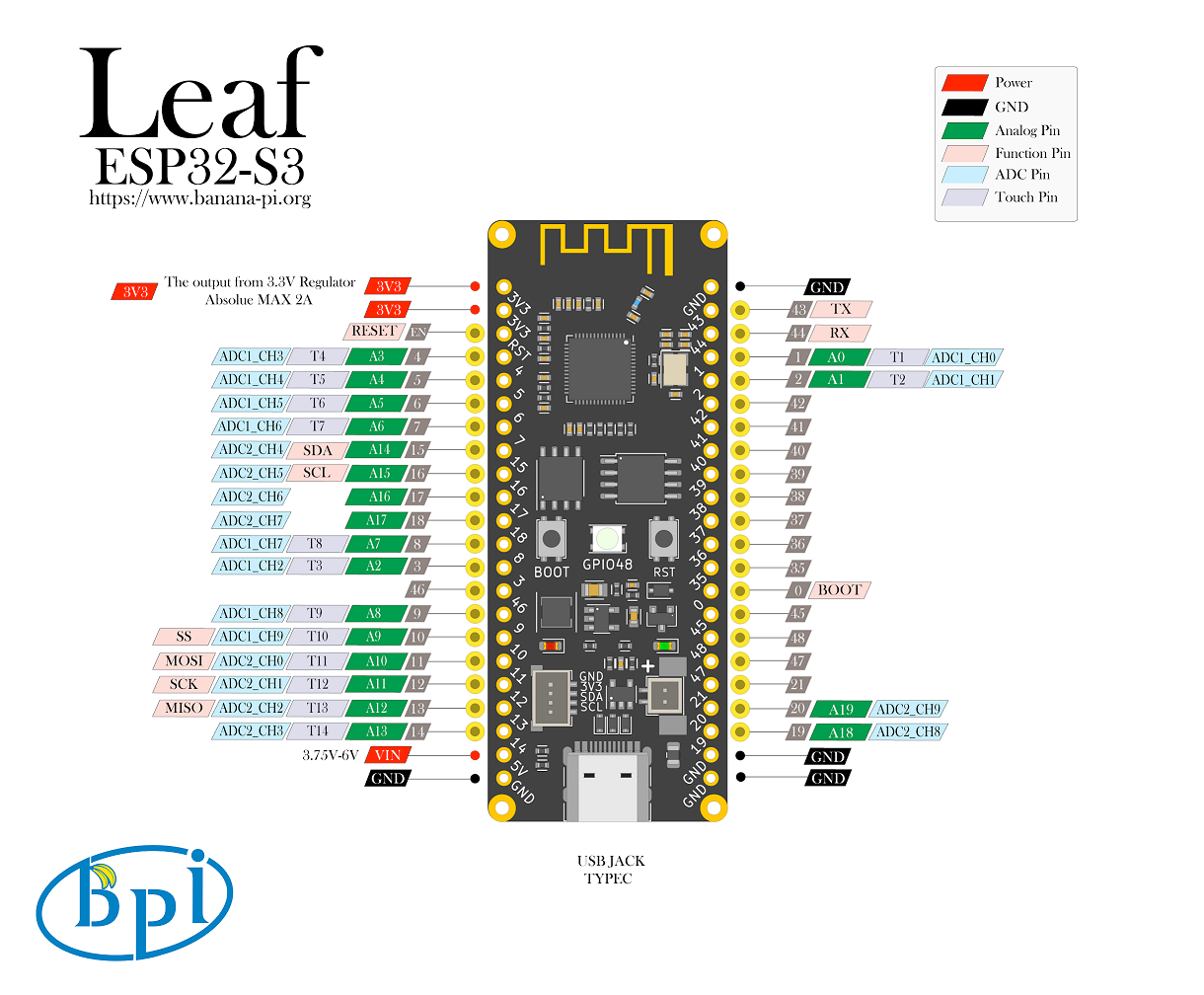

BPI-Leaf-S3 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
11A0T1PWMsafeadc · touch
22A1T2PWMsafeadc · touch
33A2T3PWMstrappingadc · touch
44A3T4PWMsafeadc · touch
55A4T5PWMsafeadc · touch
66A5T6PWMsafeadc · touch
77A6T7PWMsafeadc · touch
88A7T8PWMsafeadc · touch
99A8T9PWMstrappingadc · touch
1010SSA9T10PWMstrappingadc · touch · spi
1111MOSIA10T11PWMstrappingadc · touch · spi
1212SCKA11T12PWMstrappingadc · touch · spi
1313MISOA12T13PWMstrappingadc · touch · spi
1414A13T14PWMstrappingadc · touch
1515SDAA14PWMsafeadc · i2c
1616SCLA15PWMsafeadc · i2c
1717A16PWMsafeadc
1818A17PWMsafeadc
1919A18PWMuartadc
2020A19PWMuartadc
2143TXPWMstrappinguart
2244RXPWMstrappinguart
2348LED_BUILTINstrapping-

Start with these

11 pins with no boot or system involvement
A0T1A1T2A3T4A4T5A5T6A6T7A7T8SDAA14SCLA15A16PWMA17PWM

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

sampled at boot or shared with debug/serial
PinLabelWhat to knowRole
A2GPIO3Sampled at reset to select JTAG interface (USB Serial/JTAG controller vs. external pins). Improper use can disable external JTAG or alter debug interface.Strapping
TXU0TXD (GPIO43)Used for bootloader output and UART console logs. If repurposed, you will lose the default serial output (and programming via UART0).Other
RXU0RXD (GPIO44)Used for bootloader input (download mode via serial). If repurposed, you cannot use the default UART0 download mode for programming the chip.Other

Only if you know the tricks

wired to flash or USB - expect a fight
PinLabelWhat to knowRole
A8FSPIHDConnected to external flash (data/hold signal) on most modules. Not recommended for use as GPIO, since it must remain dedicated to flash communication.Flash
SSFSPICS0Used to select the external flash chip. It is required for flash access and cannot be repurposed without losing flash connectivityFlash
MOSIFSPIDUsed as a data line for flash (and in-package PSRAM). It should not be used as GPIO when the flash/PSRAM is in use.Flash
SCKFSPICLKDrives the flash (and PSRAM) clock. This critical signal must be reserved for memory and not used as general GPIO.Flash
MISOFSPIQUsed as a data line for flash/PSRAM transfers. Not available for other uses when flash/PSRAM is connected.Flash
A13FSPIWPConnected to external flash (data/write-protect signal). Not recommended as GPIO because it’s reserved for flash operations.Flash
A18USB_D-By default connected to the on-chip USB Serial/JTAG controller. Using it as general GPIO without reconfiguring IO MUX will interfere with USB functionality.USB
A19USB_D+By default connected to the on-chip USB Serial/JTAG controller. Using it as general GPIO without reconfiguring IO MUX will interfere with USB functionality.USB
LED_BUILTINSPICLK_NUsed only on variants with Octal SPI interface, as the negative leg of the differential clock&. On such chips it operates at 1.8 V; it should be avoided for GPIO to prevent conflicts with the octal flash/PSRAM clock.Flash
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.
Pinout notes All 23 pins on the BPI-Leaf-S3 are usable GPIO, spaced at the standard 2.54 mm pitch. Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO15 and…

All 23 pins on the BPI-Leaf-S3 are usable GPIO, spaced at the standard 2.54 mm pitch.

Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO15 and SCL on GPIO16; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO43 and GPIO44 cover serial logging and flashing.

Beyond plain digital I/O you get 20 ADC-capable pins for sensors and battery monitoring and 14 capacitive-touch inputs.

3 of the exposed pins carry boot-time or system duties on the ESP32-S3 (A2, TX and RX) - check the guidance above before wiring anything to them. A0, A1, A3, A4 and 7 more are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Native USB - shows up as a port right away, no driver needed. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
The onboard LED on GPIO1 blinks - swap the pin if your board's LED differs.
Set these in Tools · leave everything else at default
Arduino IDE 2.x — Tools Copy
Board: "ESP32S3 Dev Module"
USB CDC On Boot: "Enabled"
Flash Size: "8MB (64Mb)"
Flash Mode: "DIO"
PSRAM: "QSPI PSRAM"
Partition Scheme: "8M with spiffs (3MB APP / 1.5MB SPIFFS)" (default)
Upload Speed: "921600"
▸ every other Tools option — leave at default
Board: ESP32S3 Dev Module
USB CDC On Boot: Enabled
Flash Size: 8MB (64Mb)
Flash Mode: DIO
PSRAM: QSPI PSRAM
Partition Scheme: 8M with spiffs (3MB APP / 1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32S3 Dev Module
blink.ino Copy
// blink the onboard LED
void setup() {
  pinMode(1, OUTPUT);
}
void loop() {
  digitalWrite(1, HIGH); delay(500);
  digitalWrite(1, LOW);  delay(500);
}
board to selectesp32-s3-devkitc-1⧉ copy
platformio.ini Copy
[env:bpi_leaf_s3]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_qspi
build_flags = -DBOARD_HAS_PSRAM
Find it: PlatformIO Home ▸ Boards, search esp32-s3-devkitc-1 — or type it after board =.
board to selectesp32-s3-devkitc-1⧉ copy
device.yaml Copy
esp32:
  board: esp32-s3-devkitc-1
  variant: bpi_leaf_s3
  framework:
    type: esp-idf
psram:
  mode: quad
  speed: 80MHz

# blink - GPIO1
output:
  - platform: gpio
    pin: 1
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32-s3-devkitc-1 (same ids as PlatformIO).
esptool doesn't pick board settings — a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32s3 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x0 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Specifications

ESP32-S3 · 65.25 × 26 mm
Compute
MCU
ESP32-S3
Clock
240 MHz
SRAM · Flash
512 KB · 8MB · 2MB (QSPI) PSRAM
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.0 LE
Antenna
PCB
I/O
GPIO · ADC
23 · 20
UART · I²C · SPI
3 · 2 · 4
PWM
8 channels
Power
USB
USB-C
Serial
Native (CDC)
Boot address
0x0
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · QIO
Sketch · Data
1.25 MB · 320 KB
26 mm65.25 mm
65.25 × 26 mm · pin pitch 2.54 mm
The BPI-Leaf-S3 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with QIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads.

At $7.50 it's cheaper than most ESP32-S3 boards, which usually run around $30.

Around the module: 2MB (QSPI) PSRAM, a Qwiic/STEMMA QT connector, an addressable RGB LED (GPIO48), battery charging (MCP73831) and Reset/Boot buttons.

It flashes over native USB - no serial-converter driver needed, which isn't a given among ESP32-S3 boards.
