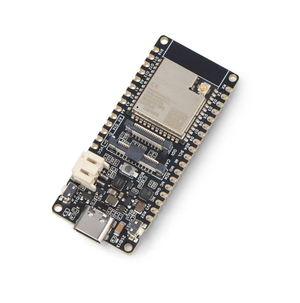

DFRobot Firebeetle 2 ESP32-S3
by DFRobot
An ESP32-S3 board with an onboard camera interface and independent power supply circuit, designed for image recognition applications.

On this page
Pinout
25 pins · 2.54 mm pitch| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 0 | D9 | strapping | - | |
| 2 | 1 | SDAT1PWM | safe | touch · i2c | |
| 3 | 2 | SCLT2PWM | safe | touch · i2c | |
| 4 | 3 | D2T3GDI_DCPWM | strapping | touch | |
| 5 | 4 | A0T4PWM | safe | adc · touch | |
| 6 | 5 | A1T5PWM | safe | adc · touch | |
| 7 | 6 | A2T6PWM | safe | adc · touch | |
| 8 | 7 | D5T7GDI_FCSPWM | safe | touch | |
| 9 | 8 | A3T8PWM | safe | adc · touch | |
| 10 | 9 | D7T9GDI_SDCSPWM | strapping | touch | |
| 11 | 10 | SSA4T10PWM | strapping | adc · touch · spi | |
| 12 | 11 | A5T11PWM | strapping | adc · touch | |
| 13 | 12 | D12T12GDI_TCSPWM | strapping | touch | |
| 14 | 13 | D11T13GDI_INTPWM | strapping | touch | |
| 15 | 14 | D10T14GDI_BUSY_TEPWM | strapping | touch | |
| 16 | 15 | MOSIPWM | safe | spi | |
| 17 | 16 | MISOPWM | safe | spi | |
| 18 | 17 | SCKPWM | safe | spi | |
| 19 | 18 | D6GDI_CSPWM | safe | - | |
| 20 | 21 | D13GDI_BLKPWM | safe | - | |
| 21 | 38 | D3GDI_RESPWM | strapping | - | |
| 22 | 43 | TXPWM | strapping | uart | |
| 23 | 44 | RXPWM | strapping | uart | |
| 24 | 47 | D14 | strapping | - | |
| 25 | - | LED_BUILTIN | safe | - |
Start with these
12 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
sampled at boot or shared with debug/serial| Pin | Label | What to know | Role |
|---|---|---|---|
| D9 | GPIO0 | Must be pulled high (default) or low (to enter UART download mode) at reset. Using it for other functions can interfere with boot mode configuration. | Strapping |
| D2 | GPIO3 | Sampled at reset to select JTAG interface (USB Serial/JTAG controller vs. external pins). Improper use can disable external JTAG or alter debug interface. | Strapping |
| TX | U0TXD (GPIO43) | Used for bootloader output and UART console logs. If repurposed, you will lose the default serial output (and programming via UART0). | Other |
| RX | U0RXD (GPIO44) | Used for bootloader input (download mode via serial). If repurposed, you cannot use the default UART0 download mode for programming the chip. | Other |
Only if you know the tricks
wired to flash or USB - expect a fight| Pin | Label | What to know | Role |
|---|---|---|---|
| D7 | FSPIHD | Connected to external flash (data/hold signal) on most modules. Not recommended for use as GPIO, since it must remain dedicated to flash communication. | Flash |
| SS | FSPICS0 | Used to select the external flash chip. It is required for flash access and cannot be repurposed without losing flash connectivity | Flash |
| A5 | FSPID | Used as a data line for flash (and in-package PSRAM). It should not be used as GPIO when the flash/PSRAM is in use. | Flash |
| D12 | FSPICLK | Drives the flash (and PSRAM) clock. This critical signal must be reserved for memory and not used as general GPIO. | Flash |
| D11 | FSPIQ | Used as a data line for flash/PSRAM transfers. Not available for other uses when flash/PSRAM is connected. | Flash |
| D10 | FSPIWP | Connected to external flash (data/write-protect signal). Not recommended as GPIO because it’s reserved for flash operations. | Flash |
| D3 | FSPIWP | On flash-equipped chips, this pin is tied to the flash’s WP# (or D3) line. It should be avoided for other use, as it’s needed for flash operations. | Flash |
| D14 | SPICLK_P | Used only on variants with Octal SPI interface (e.g. ESP32-S3R16V) as part of the differential clock pair. On such chips it operates at 1.8 V and is reserved for the high-speed octal SPI clock, not for general GPIO use. | Flash |
Pinout notes The DFRobot Firebeetle 2 ESP32-S3 pinout brings out 25 pins at a 2.54 mm pitch - 24 usable GPIO. For peripherals, I²C is mapped to SDA on GPIO1 and SCL on…
The DFRobot Firebeetle 2 ESP32-S3 pinout brings out 25 pins at a 2.54 mm pitch - 24 usable GPIO.
For peripherals, I²C is mapped to SDA on GPIO1 and SCL on GPIO2; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO43 and GPIO44 cover serial logging and flashing.
On the analog side there are 6 ADC-capable pins for sensors and battery monitoring and 14 capacitive-touch inputs.
If you want zero surprises, SDA, SCL, A0, A1 and 8 more are free of any such role - the safest first picks. 4 of the exposed pins carry boot-time or system duties on the ESP32-S3 (D9, D2, TX and 1 more).
Getting started
flash your first firmware in ~2 minutesBoard: ESP32S3 Dev Module USB CDC On Boot: Enabled Flash Size: 16MB (128Mb) Flash Mode: DIO PSRAM: OPI PSRAM Partition Scheme: 16M Flash (3MB APP / 9.9MB FATFS) Upload Speed: 921600
// blink the onboard LED
void setup() {
pinMode(1, OUTPUT);
}
void loop() {
digitalWrite(1, HIGH); delay(500);
digitalWrite(1, LOW); delay(500);
}[env:dfrobot_firebeetle2_esp32s3]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_opi
build_flags = -DBOARD_HAS_PSRAMesp32-s3-devkitc-1 — or type it after board =.esp32:
board: esp32-s3-devkitc-1
variant: dfrobot_firebeetle2_esp32s3
framework:
type: esp-idf
psram:
mode: octal
speed: 80MHz
# blink - GPIO1
output:
- platform: gpio
pin: 1
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32-s3-devkitc-1 (same ids as PlatformIO).esptool.py --chip esp32s3 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x0 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Specifications
ESP32-S3 · 60 × 25.4 mmAbout this board
At its core is the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads.
Expect to pay about $19.90 - less than the ~$30 most ESP32-S3 boards go for.
Onboard you'll find 8MB (OPI) PSRAM, battery charging (ETA6003) and Reset/Boot buttons.
It flashes over native USB - no serial-converter driver needed, which isn't a given among ESP32-S3 boards.
- OV2640 (2MP, 1600x1200) camera interface via an onboard DVP connector with independent power supply
- 16MB flash and 8MB octal PSRAM (ESP32-S3-WROOM-1-N16R8 module)
- Independent RF, camera and system power circuits to reduce interference for low-noise, low-power use
- GDI display interface connector for compatible screens
- ETA6003 Li-ion charger (up to 1A) with on/off power control
- AI acceleration for speech and image recognition
- DFR0975-U variant adds an external IPEX/u.FL antenna (ESP32-S3-WROOM-1U-N16R8)
