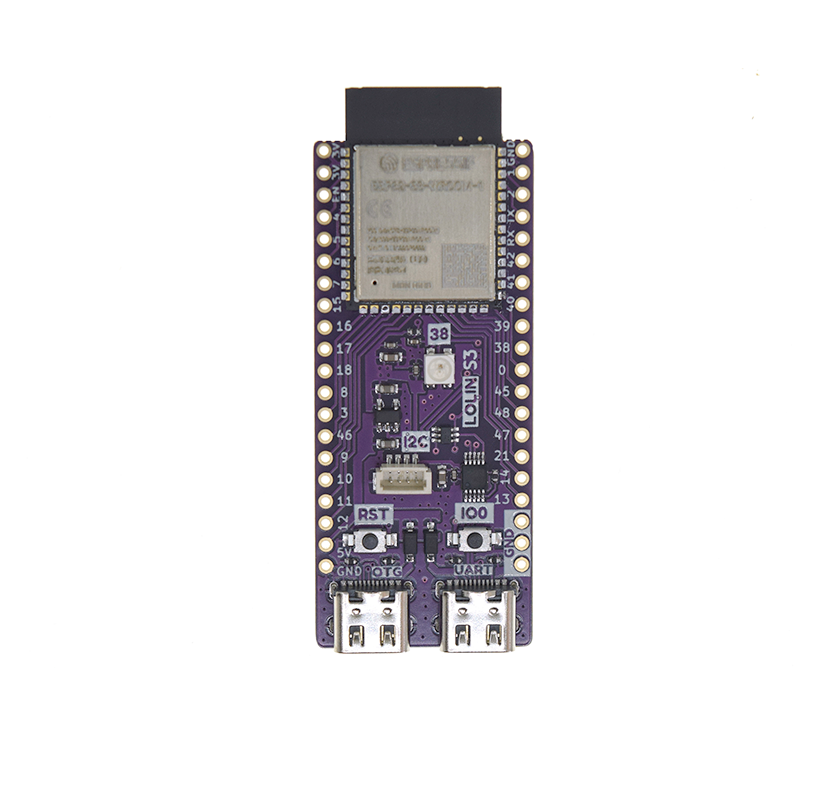

LOLIN S3
A development board by Wemos based on the ESP32-S3-WROOM-1, featuring dual USB-C ports and compatibility with MicroPython and Arduino.
65.3 × 25.4 mm
ESP32-S3
MCU
240MHz
clock
16MB
flash
512KB
SRAM
23· 18 ADC
GPIO
BLE 5.0+ WiFi
radio

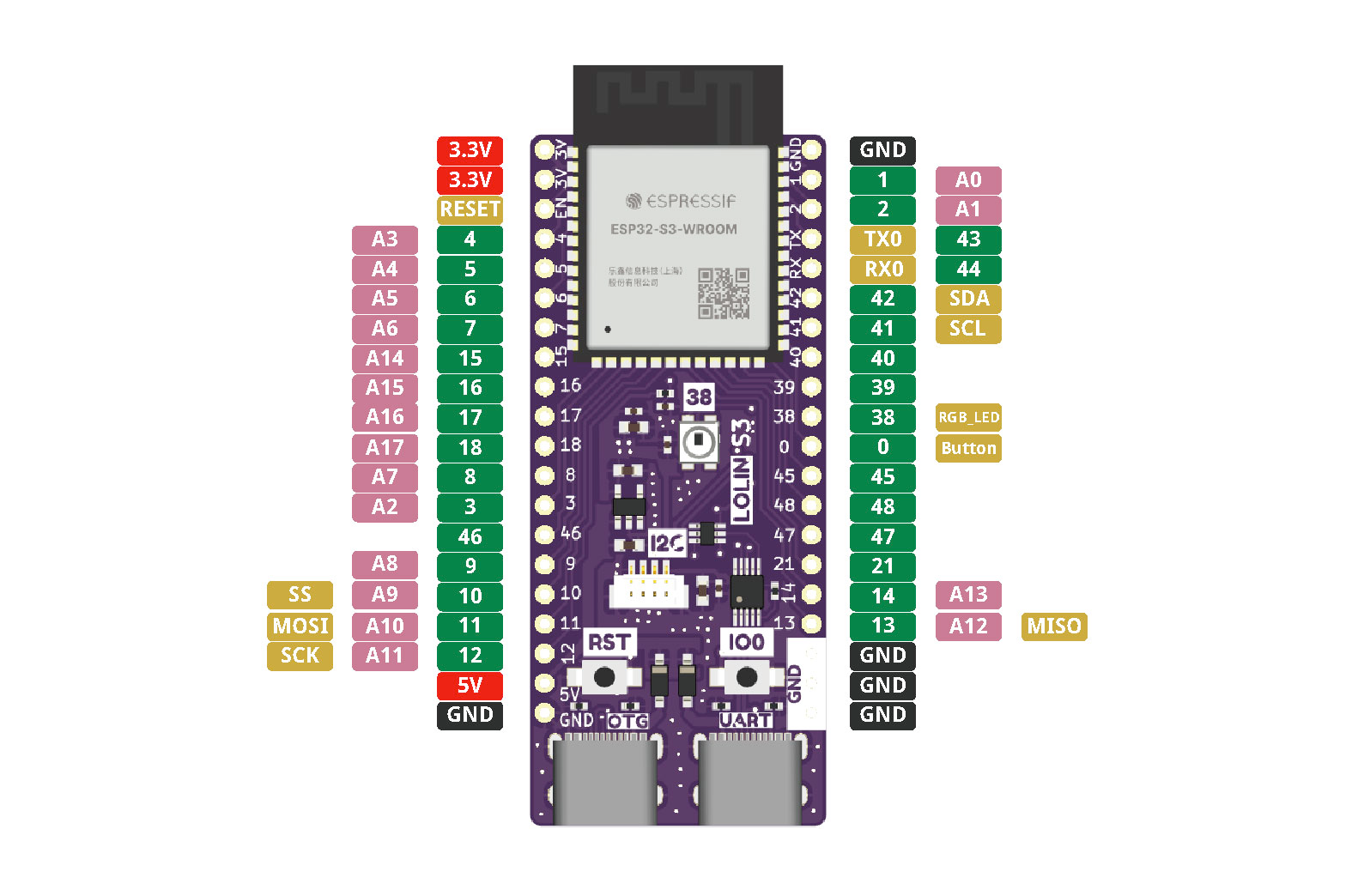

Pinout
23 pins · 2.54 mm pitch
| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 1 | A0T1PWM | safe | adc · touch | |
| 2 | 2 | A1T2PWM | safe | adc · touch | |
| 3 | 3 | A2T3PWM | strapping | adc · touch | |
| 4 | 4 | A3T4PWM | safe | adc · touch | |
| 5 | 5 | A4T5PWM | safe | adc · touch | |
| 6 | 6 | A5T6PWM | safe | adc · touch | |
| 7 | 7 | A6T7PWM | safe | adc · touch | |
| 8 | 8 | A7T8PWM | safe | adc · touch | |
| 9 | 9 | A8T9PWM | strapping | adc · touch | |
| 10 | 10 | SSA9T10PWM | strapping | adc · touch · spi | |
| 11 | 11 | MOSIA10T11PWM | strapping | adc · touch · spi | |
| 12 | 12 | SCKA11T12PWM | strapping | adc · touch · spi | |
| 13 | 13 | MISOA12T13PWM | strapping | adc · touch · spi | |
| 14 | 14 | A13T14PWM | strapping | adc · touch | |
| 15 | 15 | A14PWM | safe | adc | |
| 16 | 16 | A15PWM | safe | adc | |
| 17 | 17 | A16PWM | safe | adc | |
| 18 | 18 | A17PWM | safe | adc | |
| 19 | 38 | LED_BUILTINPWM | safe | - | |
| 20 | 41 | SCLPWM | strapping | i2c | |
| 21 | 42 | SDAPWM | strapping | i2c | |
| 22 | 43 | TXPWM | strapping | uart | |
| 23 | 44 | RXPWM | strapping | uart |
Start with these
12 pins with no boot or system involvementA0T1A1T2A3T4A4T5A5T6A6T7A7T8A14PWMA15PWMA16PWMA17PWMLED_BUILTINPWM
Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
sampled at boot or shared with debug/serial| Pin | Label | What to know | Role |
|---|---|---|---|
| A2 | GPIO3 | Sampled at reset to select JTAG interface (USB Serial/JTAG controller vs. external pins). Improper use can disable external JTAG or alter debug interface. | Strapping |
| A8 | FSPIHD | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| SS | FSPICS0 | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| MOSI | FSPID | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| SCK | FSPICLK | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| MISO | FSPIQ | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| A13 | FSPIWP | IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI. | Other |
| SCL | MTDI (GPIO41) | Default JTAG TDI input for debugging. Should be reserved for JTAG or left unused if JTAG is to remain available. | Other |
| SDA | MTMS (GPIO42) | Default JTAG TMS signal for debugging. Using this pin for other purposes will disable the JTAG interface (unless JTAG is rerouted to USB). | Other |
| TX | U0TXD (GPIO43) | Used for bootloader output and UART console logs. If repurposed, you will lose the default serial output (and programming via UART0). | Other |
| RX | U0RXD (GPIO44) | Used for bootloader input (download mode via serial). If repurposed, you cannot use the default UART0 download mode for programming the chip. | Other |
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.
Pinout notes All 23 pins on the LOLIN S3 are usable GPIO, spaced at the standard 2.54 mm pitch. Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO42 and SCL…
All 23 pins on the LOLIN S3 are usable GPIO, spaced at the standard 2.54 mm pitch.
Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO42 and SCL on GPIO41; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO43 and GPIO44 cover serial logging and flashing.
Beyond plain digital I/O you get 18 ADC-capable pins for sensors and battery monitoring and 14 capacitive-touch inputs.
11 of the exposed pins carry boot-time or system duties on the ESP32-S3 (A2, A8, SS and 8 more) - check the guidance above before wiring anything to them. A0, A1, A3, A4 and 8 more are free of any such role - the safest first picks.
Getting started
flash your first firmware in ~2 minutes1
Connect over USB
Native USB - shows up as a port right away, no driver needed. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO1 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32S3 Dev Module"▸
USB CDC On Boot: "Enabled"▸
Flash Size: "16MB (128Mb)"▸
Flash Mode: "DIO"▸
PSRAM: "OPI PSRAM"▸
Partition Scheme: "16M Flash (3MB APP/9.9MB FATFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32S3 Dev Module USB CDC On Boot: Enabled Flash Size: 16MB (128Mb) Flash Mode: DIO PSRAM: OPI PSRAM Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS) Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32S3 Dev Module
// toggle GPIO1 - wire an LED and resistor to it
void setup() {
pinMode(1, OUTPUT);
}
void loop() {
digitalWrite(1, HIGH); delay(500);
digitalWrite(1, LOW); delay(500);
}board to selectesp32-s3-devkitc-1⧉ copy
[env:lolin_s3]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_opi
build_flags = -DBOARD_HAS_PSRAMFind it: PlatformIO Home ▸ Boards, search
esp32-s3-devkitc-1 - or type it after board =.board to selectesp32-s3-devkitc-1⧉ copy
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: esp-idf
psram:
mode: octal
speed: 80MHz
# blink - GPIO1
output:
- platform: gpio
pin: 1
id: led_out
light:
- platform: binary
name: "LED"
output: led_outFind it: search ESPHome's board list for
esp32-s3-devkitc-1 (same ids as PlatformIO).esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
esptool.py --chip esp32s3 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x0 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Build details: sketch space 1310720 B · data 327680 B · DIO
Specifications
ESP32-S3 · 65.3 × 25.4 mm · vs other ESP32 chips →Compute
MCU
ESP32-S3
Clock
240 MHz
SRAM · Flash
512 KB · 16MB · 8MB (OPI) PSRAM
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.0 LE
Antenna
PCB
I/O
GPIO · ADC
23 · 18
UART · I²C · SPI
3 · 2 · 2
PWM
8 channels
Power
USB
USB-C (UART) · USB-C (native)
Serial
CH340X
Boot address
0x0
Electrical
Input
-
Consumption
-
Regulator
ME6211C33
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · QIO
Sketch · Data
1.25 MB · 320 KB
65.3 × 25.4 mm · pin pitch 2.54 mm
The LOLIN S3 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with QIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.
About this board
Inside sits the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads.
At $6.90 it's cheaper than most ESP32-S3 boards, which usually run around $29.
Around the module: 8MB (OPI) PSRAM, an addressable RGB LED (GPIO38) and Reset/Boot buttons.
