ESP32-C3-MINI-1

ACTIVE MINI

ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth LE module. This module features a rich set of peripherals and a small size, which makes it an ideal choice for smart home, industrial automation, health care, consumer electronics, etc.

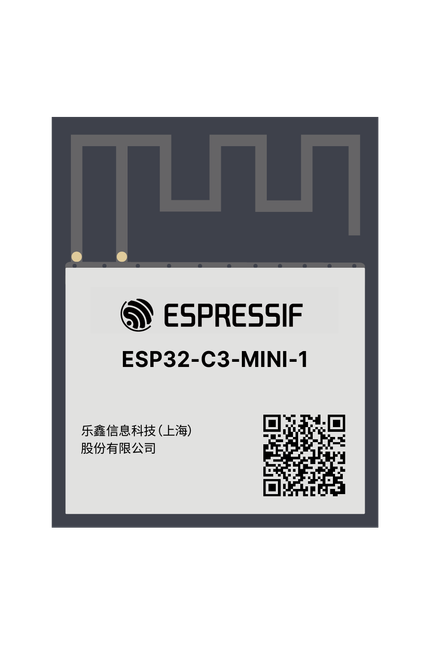

ESP32-C3-MINI-1 module
13.2 × 16.6 mm
8MB
Flash
None
PSRAM
15
GPIOs
13.2×16.6mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-C3FH4, ESP32-C3FH4X, ESP32-C3FH8X, ESP32-C3FH4AZ
GPIOs15
Module pins53
AntennaPCB antenna
Dev boardESP32-C3-DevKitM-1, ESP32-C3-AWS-ExpressLink-DevKit, ESP32-C3-DevKit-RUST-1
Operating temp-40°C ~ 85°C (H variants: -40°C ~ 105°C)
Dimensions13.2 × 16.6 × 2.4 mm

Memory

Flash4 / 8 MB
PSRAMNone

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth5.4 LE only

Module variants

6 variants
Base lowest-cost config Top highest spec High-temp extended temperature range NRND not recommended for new designs
VariantFlashPSRAMTags
ESP32-C3-MINI-1-N4X4 MB-Base
ESP32-C3-MINI-1-H4X4 MB-High-temp
ESP32-C3-MINI-1-H8X8 MB-Top High-temp
ESP32-C3-MINI-1-N44 MB-NRND
ESP32-C3-MINI-1-H44 MB-High-temp NRND
ESP32-C3-MINI-1-H4-AZ4 MB-High-temp NRND

About the ESP32-C3-MINI-1

ESP32-C3-MINI-1 is a small Wi-Fi + Bluetooth LE module built around the single-core RISC-V ESP32-C3, with the flash inside the chip package and an on-board PCB antenna.

  • Small size: 13.2 x 16.6 x 2.4 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • 15 GPIOs on a 53-pin footprint
  • 4 MB or 8 MB flash in the chip package, no PSRAM
  • Operating temperature: -40°C ~ 85°C (N variants) or -40°C ~ 105°C (H variants)
  • Integrated PCB antenna

The ESP32-C3-MINI-1 variants differ in flash size, temperature rating and chip revision. "N" parts are rated -40°C ~ 85°C and "H" parts -40°C ~ 105°C. The "X" suffix marks the newer ESP32-C3 chip revision v1.1, which has about 10 KB more SRAM available to applications than v0.4 and needs a recent ESP-IDF version.

  • ESP32-C3-MINI-1-N4X (recommended): 4 MB flash, -40°C ~ 85°C, chip revision v1.1.
  • ESP32-C3-MINI-1-H4X (recommended): 4 MB flash, -40°C ~ 105°C, chip revision v1.1.
  • ESP32-C3-MINI-1-H8X: 8 MB flash, -40°C ~ 105°C, chip revision v1.1.
  • ESP32-C3-MINI-1-N4 and -H4 (NRND): the v0.4 chip revision predecessors of N4X and H4X.
  • ESP32-C3-MINI-1-H4-AZ (NRND): uses the ESP32-C3FH4AZ chip, whose SPI0/SPI1 flash pins are not bonded out.

Any variant can be ordered with AWS IoT ExpressLink firmware pre-installed ("-A" suffix, e.g. ESP32-C3-MINI-1-N4-A). Those modules ship with flash encryption and secure boot enabled, so they cannot be reflashed over UART or USB.
