ESP32-C3-WROOM-02U

ACTIVE WROOM

ESP32-C3-WROOM-02U is a general-purpose Wi-Fi and Bluetooth LE module based on the ESP32-C3, with 15 GPIOs, 4 MB or 8 MB external SPI flash and an external antenna connector (U.FL / MHF I compatible) in place of the PCB antenna.

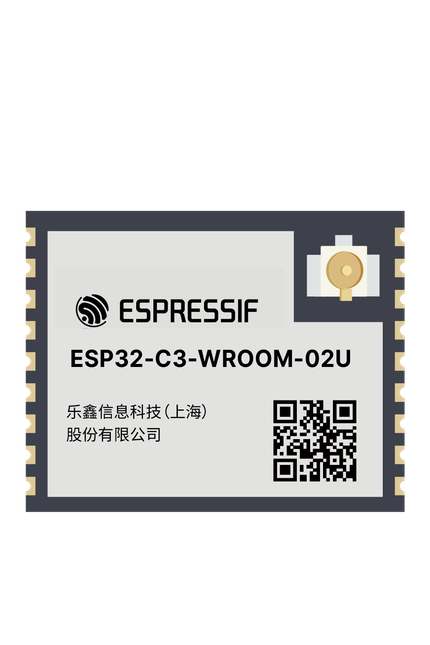

ESP32-C3-WROOM-02U module
18 × 14.3 mm
8MB
Flash
None
PSRAM
15
GPIOs
18×14.3mm
Size

Specifications

Datasheet ↗

Module

FamilyWROOM
Embedded chipESP32-C3
GPIOs15
Module pins19
AntennaExternal antenna connector (U.FL / MHF I compatible)
Dev boardESP32-C3-DevKitC-02
Operating temp-40°C ~ 85°C (H4: -40°C ~ 105°C)
Dimensions18 × 14.3 × 3.2 mm

Memory

Flash4 / 8 MB
PSRAMNone

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth5.4 LE only

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-C3-WROOM-02U-N44 MB-Base
ESP32-C3-WROOM-02U-H44 MB-High-temp
ESP32-C3-WROOM-02U-N88 MB-Top

About the ESP32-C3-WROOM-02U

ESP32-C3-WROOM-02U is the external-antenna version of the ESP32-C3-WROOM-02: the same ESP32-C3 Wi-Fi and Bluetooth LE module with an antenna connector instead of the PCB antenna, on a shorter 18 x 14.3 mm board.

  • Size: 18 x 14.3 x 3.2 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • 15 GPIOs on a 19-pin footprint
  • 4 MB or 8 MB external SPI flash, no PSRAM
  • Operating temperature: -40°C ~ 85°C (N4, N8) or -40°C ~ 105°C (H4)
  • First-generation antenna connector, compatible with Hirose U.FL, I-PEX MHF I and Amphenol AMC

The ESP32-C3-WROOM-02U comes in three variants. All use the same ESP32-C3 chip with external Quad SPI flash and differ only in flash size and temperature rating.

  • ESP32-C3-WROOM-02U-N4: 4 MB flash, -40°C ~ 85°C.
  • ESP32-C3-WROOM-02U-H4: 4 MB flash, -40°C ~ 105°C.
  • ESP32-C3-WROOM-02U-N8: 8 MB flash, -40°C ~ 85°C. It was dropped from the datasheet in v1.4 and listed again in v1.7 (March 2026).

Espressif can also fit 16 MB flash on request through its sales team.
