ESP32-C6-MINI-1

ACTIVE MINI

ESP32-C6-MINI-1 is an ESP32-C6 based module supporting Wi-Fi 6 in the 2.4 GHz band, Bluetooth 5, Zigbee 3.0, and Thread. Small-sized and pin-to-pin compatible with the ESP32-C3-MINI series.

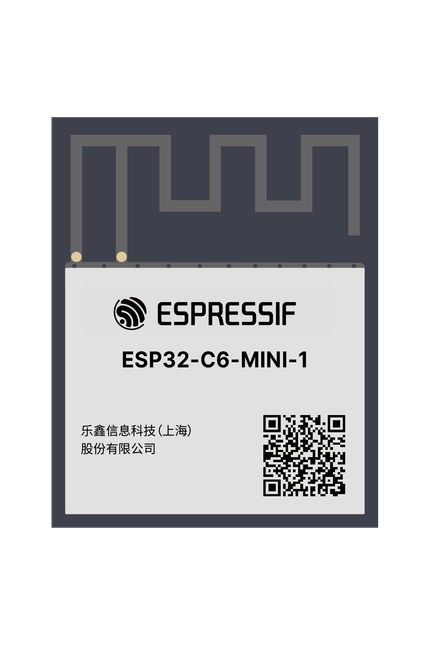

ESP32-C6-MINI-1 module
13.2 × 16.6 mm
8MB
Flash
None
PSRAM
22
GPIOs
13.2×16.6mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-C6FH4, ESP32-C6FH8
GPIOs22
Module pins53
AntennaPCB antenna
Dev boardESP32-C6-DevKitM-1
Operating temp-40°C ~ 85°C (H variants: -40°C ~ 105°C)
Dimensions13.2 × 16.6 × 2.4 mm

Memory

Flash4 / 8 MB
PSRAMNone

Connectivity

Wi-Fi802.11 ax b/g/n (2.4 GHz)
Bluetooth5.3 LE only

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-C6-MINI-1-N44 MB-Base
ESP32-C6-MINI-1-H44 MB-High-temp
ESP32-C6-MINI-1-H88 MB-Top High-temp

About the ESP32-C6-MINI-1

ESP32-C6-MINI-1 is a small module built around the ESP32-C6FH4 or ESP32-C6FH8 (32-bit RISC-V single core, up to 160 MHz) with 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE), Zigbee and Thread.

  • Small size: 13.2 x 16.6 x 2.4 mm
  • Wi-Fi 6 (802.11ax, 2.4 GHz), Bluetooth 5 (LE), Zigbee 3.0, Thread 1.3
  • 22 GPIOs on a 53-pin footprint
  • 4 MB or 8 MB flash in the chip package, no PSRAM
  • Pin-to-pin compatible with the ESP32-C3-MINI series (per Espressif)
  • Operating temperature: -40°C ~ 85°C (N4) or -40°C ~ 105°C (H variants)
  • Integrated PCB antenna

The ESP32-C6-MINI-1 variants differ in flash size and temperature rating. "N" parts are rated -40°C ~ 85°C and "H" parts -40°C ~ 105°C. The flash sits inside the chip package (ESP32-C6FH4 or ESP32-C6FH8); no variant has PSRAM.

  • ESP32-C6-MINI-1-N4: 4 MB flash, -40°C ~ 85°C.
  • ESP32-C6-MINI-1-H4: 4 MB flash, -40°C ~ 105°C.
  • ESP32-C6-MINI-1-H8: 8 MB flash, -40°C ~ 105°C.
