ESP32-C6-WROOM-1

ACTIVE WROOM

ESP32-C6-WROOM-1 is an ESP32-C6 based module supporting Wi-Fi 6 in the 2.4 GHz band, Bluetooth 5, Zigbee 3.0, and Thread. Pin-to-pin compatible with the ESP32-WROOM series.

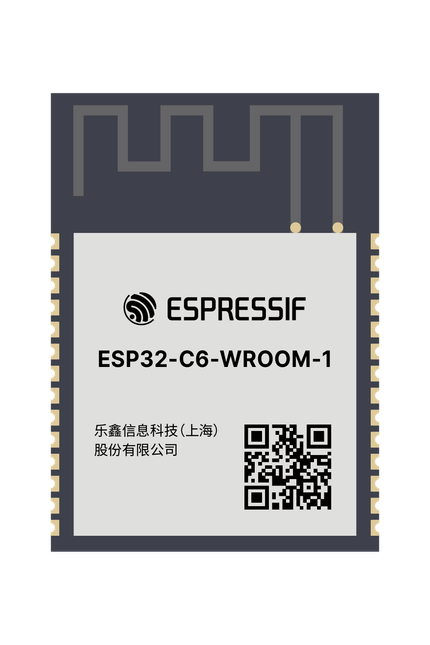

ESP32-C6-WROOM-1 module
18 × 25.5 mm
16MB
Flash
None
PSRAM
23
GPIOs
18×25.5mm
Size

Specifications

Datasheet ↗

Module

FamilyWROOM
Embedded chipESP32-C6
GPIOs23
Module pins29
AntennaPCB antenna
Dev boardESP32-C6-DevKitC-1
Operating temp-40°C ~ 85°C
Dimensions18 × 25.5 × 3.1 mm

Memory

Flash4 / 8 / 16 MB
PSRAMNone

Connectivity

Wi-Fi802.11 ax b/g/n (2.4 GHz)
Bluetooth5.3 LE only

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-C6-WROOM-1-N44 MB-Base
ESP32-C6-WROOM-1-N88 MB-
ESP32-C6-WROOM-1-N1616 MB-Top

About the ESP32-C6-WROOM-1

ESP32-C6-WROOM-1 is a general-purpose module built around the ESP32-C6 (32-bit RISC-V single core, up to 160 MHz) with 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE), Zigbee and Thread.

  • Size: 18.0 x 25.5 x 3.1 mm
  • Wi-Fi 6 (802.11ax, 2.4 GHz), Bluetooth 5 (LE), Zigbee 3.0, Thread 1.3
  • 23 GPIOs on a 29-pin footprint
  • 4, 8 or 16 MB external SPI flash, no PSRAM
  • Pin-to-pin compatible with the ESP32-WROOM series (per Espressif)
  • Operating temperature: -40°C ~ 85°C
  • Integrated PCB antenna

The ESP32-C6-WROOM-1 variants differ only in the size of the external quad SPI flash. All are rated -40°C ~ 85°C and none has PSRAM.

  • ESP32-C6-WROOM-1-N4: 4 MB flash.
  • ESP32-C6-WROOM-1-N8: 8 MB flash.
  • ESP32-C6-WROOM-1-N16: 16 MB flash.

Espressif makes a 4 MB version rated to 105°C ambient on request.
