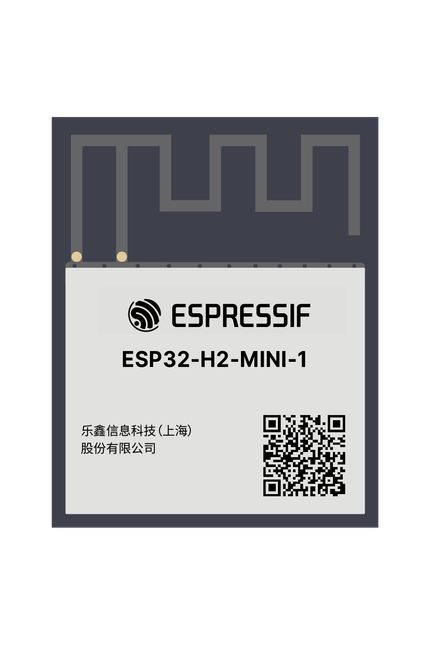

ESP32-H2-MINI-1
ESP32-H2-MINI-1 is a powerful, generic Bluetooth® Low Energy and IEEE 802.15.4 combo module with ESP32-H2 chip at its core. This module is ideal for building IoT applications with high requirement on power consumption. For example, you can use this module to build Matter based smart home devices, allowing interoperability between different eco systems, or Thread Border Routers together with other Espressif Wi-Fi products. This module is very small-sized and pin-to-pin compatible with ESP32-C3-MINI, ESP32-C6-MINI modules.
13.2 × 16.6 mm
4MB
Flash
None
PSRAM
53
GPIO pins
13.2×16.6mm
Size
Specifications
Datasheet ↗Module
FamilyMINI
Embedded chipESP32-H2FH2S, ESP32-H2FH4S
GPIO pins53
AntennaPCB antenna
Dev boardESP32-H2-DevKitM-1
Operating temp-40°C ~ 85°C
Dimensions13.2 × 16.6 × 2.4 mm
Memory
Flash2 / 4 MB
PSRAMNone
Connectivity
Bluetooth5.0
BLE5.0
Module variants
6 variantsBase lowest-cost config Top highest spec High-temp extended temperature range
| Variant | Flash | PSRAM | Tags |
|---|---|---|---|
| ESP32-H2-MINI-1-N2 | 2 MB | - | Base |
| ESP32-H2-MINI-1-N4 | 4 MB | - | |
| ESP32-H2-MINI-1-H2 | 2 MB | - | High-temp |
| ESP32-H2-MINI-1-H4 | 4 MB | - | High-temp |
| ESP32-H2-MINI-1-H2S | 4 MB | - | High-temp |
| ESP32-H2-MINI-1-H4S | 4 MB | - | Top High-temp |
About the ESP32-H2-MINI-1
The ESP32-H2-MINI-1 module comes in several variants:
- ESP32-H2-MINI-1-N2: This is the basic variant with 2MB of flash memory, suitable for most applications.
- ESP32-H2-MINI-1-N4: This variant features 4MB of flash memory and is designed for enhanced performance, making it ideal for applications requiring more memory.
- ESP32-H2-MINI-1-H2: This variant is designed for high-temperature environments, featuring 2MB of flash memory, making it suitable for industrial applications.
- ESP32-H2-MINI-1-H4: This is the high-temperature variant with 4MB of flash memory, designed for high-temperature environments and enhanced performance, making it ideal for demanding applications.
- ESP32-H2-MINI-1-H2S: This variant is designed for high-temperature environments, featuring 4MB of flash memory, making it suitable for industrial applications.
- ESP32-H2-MINI-1-H4S: This is the top variant with 4MB of flash memory, designed for high-temperature environments and enhanced performance, making it ideal for demanding applications.
