ESP32-H2-MINI-1U

ACTIVE MINI

ESP32-H2-MINI-1U is a Bluetooth LE and IEEE 802.15.4 (Thread, Zigbee, Matter) module built around the ESP32-H2 RISC-V chip, with 2 MB or 4 MB flash in the chip package and an external antenna connector (W.FL / MHF III compatible). It has no Wi-Fi radio.

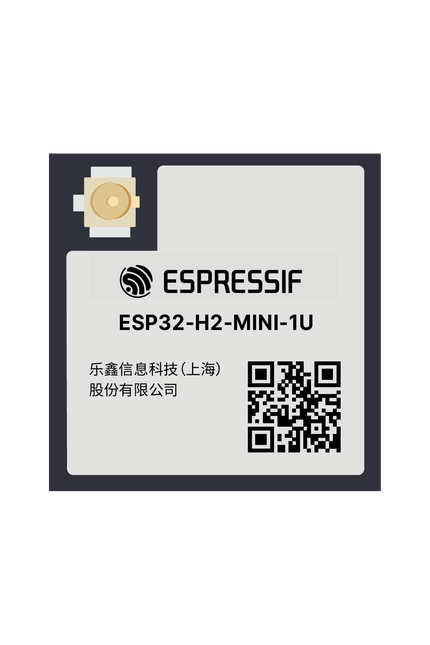

ESP32-H2-MINI-1U module
13.2 × 12.5 mm
4MB
Flash
None
PSRAM
19
GPIOs
13.2×12.5mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-H2FH2S, ESP32-H2FH4S, ESP32-H2FH2, ESP32-H2FH4
GPIOs19
Module pins53
AntennaExternal antenna connector (W.FL / MHF III compatible, not U.FL)
Dev boardESP32-H2-DevKitM-1
Operating temp-40°C ~ 105°C (EOL N4: -40°C ~ 85°C)
Dimensions13.2 × 12.5 × 2.4 mm

Memory

Flash2 / 4 MB
PSRAMNone

Connectivity

Bluetooth5.3 LE only

Module variants

5 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-H2-MINI-1U-H2S2 MB-Base
ESP32-H2-MINI-1U-H4S4 MB-Top
ESP32-H2-MINI-1U-H22 MB-EOL
ESP32-H2-MINI-1U-H44 MB-EOL
ESP32-H2-MINI-1U-N44 MB-EOL

About the ESP32-H2-MINI-1U

ESP32-H2-MINI-1U is the external-antenna version of the ESP32-H2-MINI-1: the same ESP32-H2 Bluetooth LE and IEEE 802.15.4 module with an antenna connector instead of the PCB antenna. It has no Wi-Fi radio.

  • Small size: 13.2 x 12.5 x 2.4 mm
  • Bluetooth LE (Bluetooth 5.3 certified) and IEEE 802.15.4 (Thread 1.4, Zigbee 3.0, Matter)
  • 19 GPIOs on a 53-pin footprint
  • 2 MB or 4 MB flash in the chip package, no PSRAM
  • Operating temperature: -40°C ~ 105°C
  • Third-generation antenna connector, compatible with Hirose W.FL, I-PEX MHF III and Amphenol AMC (not U.FL / MHF I)
  • Espressif's product page lists it as pin-to-pin compatible with the ESP32-C3-MINI and ESP32-C6-MINI modules

The two current ESP32-H2-MINI-1U variants differ only in flash size and are both rated -40°C ~ 105°C. The "S" suffix does not mean more flash: it marks the ESP32-H2 chip revision v1.2 parts (ESP32-H2FH2S / ESP32-H2FH4S) that replaced the revision v0.1 modules under PCN20250104. Revision v1.2 adds a power glitch detector, an anti-DPA/CPA pseudo-round mode for AES and a constant-time/power mode for ECC. It needs ESP-IDF v5.1.6, v5.2.5, v5.3.3, v5.4.1, v5.5 or later in each branch; firmware built with older ESP-IDF versions may not run on it.

  • ESP32-H2-MINI-1U-H2S: 2 MB flash, -40°C ~ 105°C, chip revision v1.2.
  • ESP32-H2-MINI-1U-H4S: 4 MB flash, -40°C ~ 105°C, chip revision v1.2.
  • ESP32-H2-MINI-1U-H2 and -H4 (EOL): the chip revision v0.1 predecessors of H2S and H4S (2 MB / 4 MB flash, -40°C ~ 105°C).
  • ESP32-H2-MINI-1U-N4 (EOL): 4 MB flash, -40°C ~ 85°C, chip revision v0.1. Its replacement is H4S.

Espressif has no further supply plans for the chip revision v0.1 modules (PCN20250104).
