ESP32-S3-MINI-1U

ACTIVE MINI

ESP32-S3-MINI-1U is a general-purpose Wi-Fi + Bluetooth LE module with a rich set of peripherals in a small footprint, for IoT applications such as embedded systems, smart home and wearable electronics. Its external antenna connector is the third-generation W.FL / MHF III type, not U.FL.

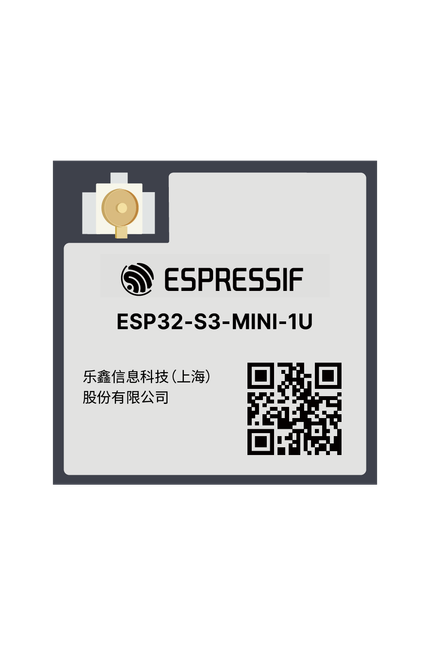

ESP32-S3-MINI-1U module
15.4 × 15.4 mm
8MB
Flash
2MB
PSRAM
39
GPIOs
15.4×15.4mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-S3FN8, ESP32-S3FH4R2
GPIOs39 (38 on N4R2; IO26 goes to the in-package PSRAM)
Module pins65
AntennaExternal antenna connector (W.FL / MHF III compatible, not U.FL)
Dev boardESP32-S3-DevKitM-1
Operating temp-40°C ~ 85°C
Dimensions15.4 × 15.4 × 2.4 mm

Memory

Flash4 / 8 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth5.4 LE only

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-S3-MINI-1U-N88 MB-Base
ESP32-S3-MINI-1U-N4R24 MB2 MBTop

About the ESP32-S3-MINI-1U

ESP32-S3-MINI-1U is the external-antenna version of ESP32-S3-MINI-1, with a shorter body. It uses a third-generation antenna connector (compatible with Hirose W.FL and I-PEX MHF III), not the first-generation U.FL / MHF I type used on ESP32-S3-WROOM-1U, so it needs a W.FL / MHF III antenna cable rather than a U.FL one.

  • Size: 15.4 x 15.4 x 2.4 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • 39 GPIOs on a 65-pin footprint (38 on N4R2)
  • 8 MB flash (N8) or 4 MB flash + 2 MB PSRAM (N4R2), in the chip package
  • Operating temperature: -40°C ~ 85°C
  • External antenna connector (W.FL / MHF III compatible, not U.FL)

ESP32-S3-MINI-1U comes in two variants that differ only in flash and PSRAM size. Both are rated -40°C ~ 85°C.

  • ESP32-S3-MINI-1U-N8: 8 MB Quad SPI flash, no PSRAM (ESP32-S3FN8 chip), 39 GPIOs.
  • ESP32-S3-MINI-1U-N4R2: 4 MB Quad SPI flash and 2 MB Quad SPI PSRAM (ESP32-S3FH4R2 chip). IO26 is connected to the PSRAM, leaving 38 GPIOs.

A 105°C variant, ESP32-S3-MINI-1U-H4R2, was removed from the datasheet in v1.1 (March 2023).
