TAMC Termod S3
An ESP32-S3-based board designed for temperature monitoring and control applications, featuring relevant sensors and interfaces.

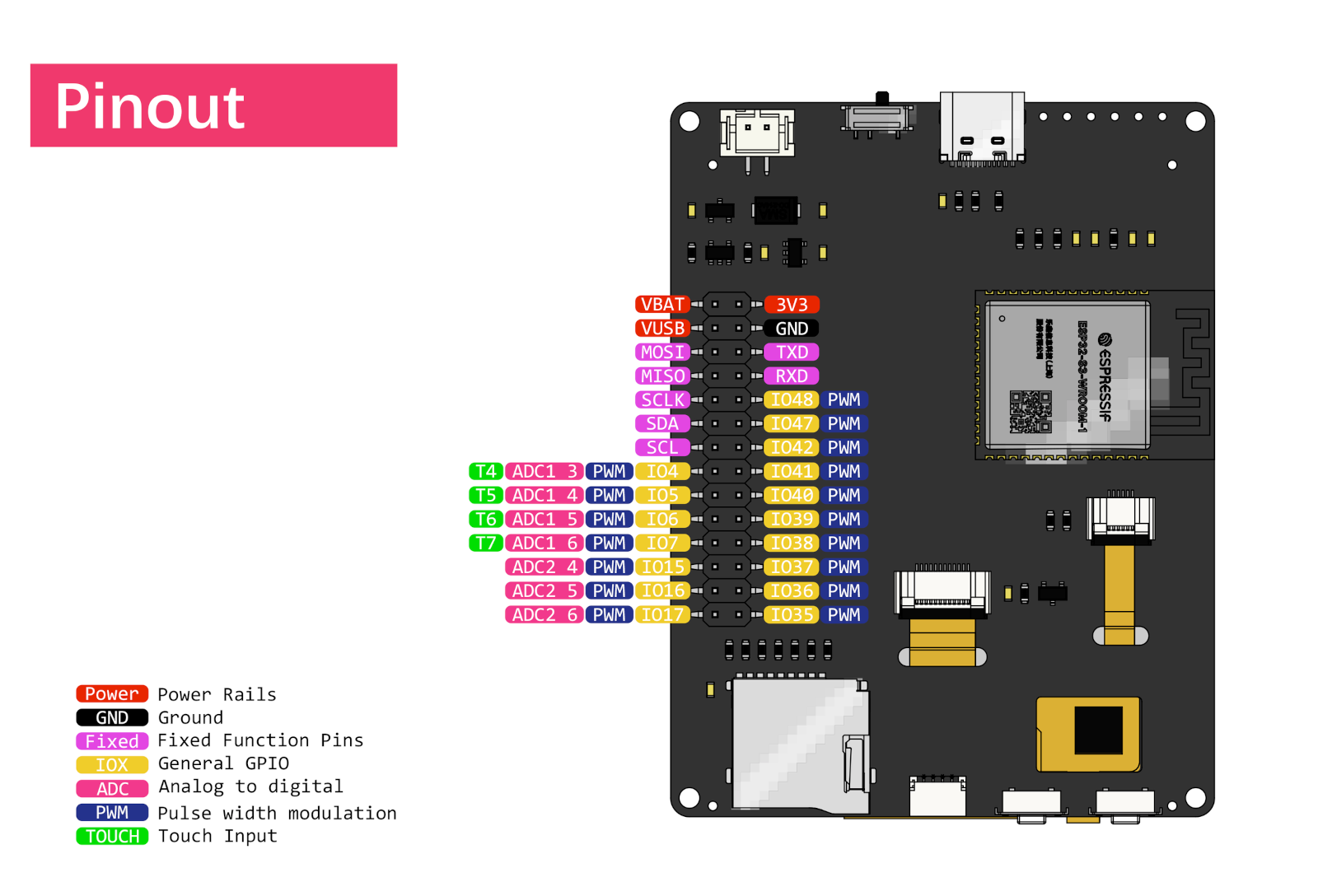

TAMC Termod S3 Pinout
26 pins · 2.54 mm pitch
| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 0 | DISPLAY_PORTRAIT_FLIP | strapping | - | |
| 2 | 1 | A0T1BAT_LVDISPLAY_LANDSCAPE_FLIPPWM | safe | adc · touch | |
| 3 | 2 | A1T2CHGDISPLAY_PORTRAITPWM | safe | adc · touch | |
| 4 | 3 | A2T3DISPLAY_LANDSCAPEPWM | strapping | adc · touch | |
| 5 | 4 | A3T4PWM | safe | adc · touch | |
| 6 | 5 | A4T5PWM | safe | adc · touch | |
| 7 | 6 | A5T6PWM | safe | adc · touch | |
| 8 | 7 | A6T7PWM | safe | adc · touch | |
| 9 | 8 | SDAA7T8PWM | safe | adc · touch · i2c | |
| 10 | 9 | SCLA8T9PWM | strapping | adc · touch · i2c | |
| 11 | 10 | SSA9T10TFT_CSPWM | strapping | adc · touch · spi | |
| 12 | 11 | MOSIA10T11PWM | strapping | adc · touch · spi | |
| 13 | 12 | SCKA11T12PWM | strapping | adc · touch · spi | |
| 14 | 13 | MISOA12T13PWM | strapping | adc · touch · spi | |
| 15 | 14 | A13T14TFT_RSTPWM | strapping | adc · touch | |
| 16 | 15 | A14PWM | safe | adc | |
| 17 | 16 | A15PWM | safe | adc | |
| 18 | 17 | A16PWM | safe | adc | |
| 19 | 18 | A17TFT_DCPWM | safe | adc | |
| 20 | 19 | A18PWM | uart | adc | |
| 21 | 20 | A19PWM | uart | adc | |
| 22 | 21 | SD_CSPWM | safe | - | |
| 23 | 43 | TXPWM | uart | uart | |
| 24 | 44 | RXPWM | uart | uart | |
| 25 | 47 | SD_CD | strapping | - | |
| 26 | 48 | TFT_BCKL | strapping | - |
Start with these
12 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
12 pins · 6 things to knowDISPLAY_PORTRAIT_FLIPGPIO0 Bootstrapping pin (Chip boot mode selection) Strapping
Must be pulled high (default) or low (to enter UART download mode) at reset. Using it for other functions can interfere with boot mode configuration.
A2GPIO3 Bootstrapping pin (controls JTAG signal source) Strapping
Sampled at reset to select JTAG interface (USB Serial/JTAG controller vs. external pins). Improper use can disable external JTAG or alter debug interface.
SCLGPIO9SSGPIO10MOSIGPIO11SCKGPIO12MISOGPIO13A13GPIO14 General-purpose SPI2 (FSPI) IO MUX pins Other
IO MUX pin of the general-purpose SPI2 (FSPI) bus, not of the in-package flash - that sits on GPIO26-32. The datasheet lists it as a priority-2 pin ("can be freely used without restrictions"), so it is only taken if your board wires flash, an SD card or a display to FSPI.
- SCLGeneral-purpose SPI2 (FSPI) IO MUX pin - hold/data line (FSPIHD)
- SSGeneral-purpose SPI2 (FSPI) IO MUX pin - chip select (FSPICS0)
- MOSIGeneral-purpose SPI2 (FSPI) IO MUX pin - data in (FSPID)
- SCKGeneral-purpose SPI2 (FSPI) IO MUX pin - clock (FSPICLK)
- MISOGeneral-purpose SPI2 (FSPI) IO MUX pin - data out (FSPIQ)
- A13General-purpose SPI2 (FSPI) IO MUX pin - write-protect/data line (FSPIWP)
TXGPIO43 UART0 transmit pin (U0TXD), default serial console TX UART
Used for bootloader output and UART console logs. If repurposed, you will lose the default serial output (and programming via UART0).
RXGPIO44 UART0 receive pin (U0RXD), default serial console RX UART
Used for bootloader input (download mode via serial). If repurposed, you cannot use the default UART0 download mode for programming the chip.
SD_CDGPIO47TFT_BCKLGPIO48 Octal SPI differential clock legs (SPICLK_P/N_DIFF), used only by the 1.8 V octal flash/PSRAM variants Other
Only the 1.8 V octal parts (ESP32-S3R8V, ESP32-S3R16V) run the differential memory clock here, and on those the pin works at 1.8 V instead of 3.3 V. On the common 3.3 V modules it is a normal GPIO - several devkits drive their RGB LED from GPIO48.
- SD_CDOctal SPI differential clock positive leg (SPICLK_P_DIFF), used only by the 1.8 V octal flash/PSRAM variants
- TFT_BCKLOctal SPI differential clock negative leg (SPICLK_N_DIFF), used only by the 1.8 V octal flash/PSRAM variants
Only if you know the tricks
2 pins · 1 thing to knowA18GPIO19A19GPIO20 USB OTG differential data pair (D- and D+) USB
By default connected to the on-chip USB Serial/JTAG controller. Using it as general GPIO without reconfiguring IO MUX will interfere with USB functionality.
- A18USB OTG negative differential data line (USB_D-)
- A19USB OTG positive differential data line (USB_D+)
The TAMC Termod S3 pinout brings out 26 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.
For peripherals, I²C is mapped to SDA on GPIO8 and SCL on GPIO9; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO43 and GPIO44 cover serial logging and flashing.
On the analog side there are 20 ADC-capable pins for sensors and battery monitoring and 14 capacitive-touch inputs.
If you want zero surprises, A0, A1, A3, A4 and 8 more are free of any such role - the safest first picks. 12 of the exposed pins carry boot-time or system duties on the ESP32-S3 (DISPLAY_PORTRAIT_FLIP, A2, SCL and 9 more).
Getting started
flash your first firmware in ~2 minutesBoard: ESP32S3 Dev Module USB CDC On Boot: Enabled Flash Size: 8MB (64Mb) Flash Mode: DIO PSRAM: QSPI PSRAM Partition Scheme: 8M with spiffs (3MB APP/1.5MB SPIFFS) Upload Speed: 921600
// toggle GPIO1 - wire an LED and resistor to it
void setup() {
pinMode(1, OUTPUT);
}
void loop() {
digitalWrite(1, HIGH); delay(500);
digitalWrite(1, LOW); delay(500);
}[env:tamc_termod_s3]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_qspi
build_flags = -DBOARD_HAS_PSRAMesp32-s3-devkitc-1 - or type it after board =.esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: esp-idf
psram:
mode: quad
speed: 80MHz
# blink - GPIO1
output:
- platform: gpio
pin: 1
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32-s3-devkitc-1 (same ids as PlatformIO).esptool.py --chip esp32s3 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x0 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Specifications
ESP32-S3 · 76 × 58 mm · vs other ESP32 chips →Dimensions
About this board

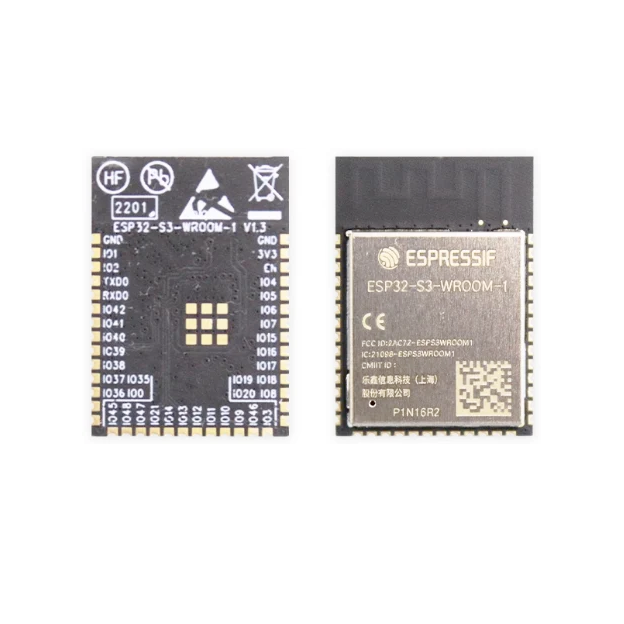

At its core is the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads.
Expect to pay about $49.00 - above the ~$29 typical for ESP32-S3 boards.

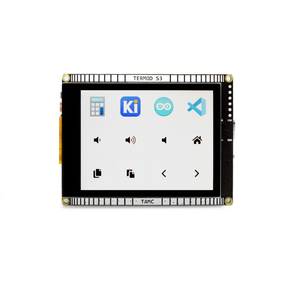

Onboard you'll find 2MB (QSPI) PSRAM, an IPS LCD 2.8" 320x240 display with touch, a microSD slot, a Qwiic connector, battery charging via JST-PH 2.0 and IO0/Reset buttons.
It flashes over native USB - no serial-converter driver needed, which isn't a given among ESP32-S3 boards.
