ESP32 1-Wire Sensors

3 sensors · wiring diagrams, specs and code examples

Every 1-Wire sensor in the catalog, all wired and coded for the ESP32.

3 sensors Wiring diagrams Code for 5 frameworks

All 1-Wire sensors

3 sensors

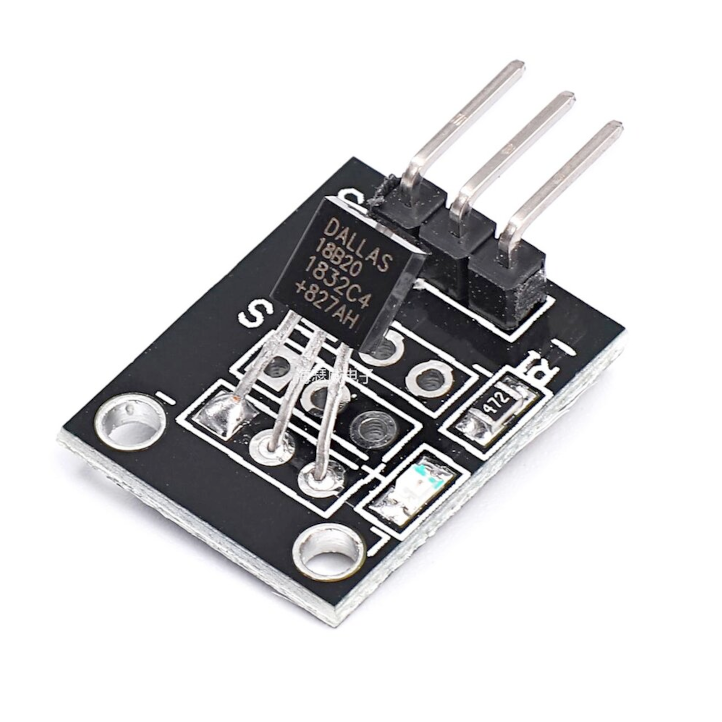

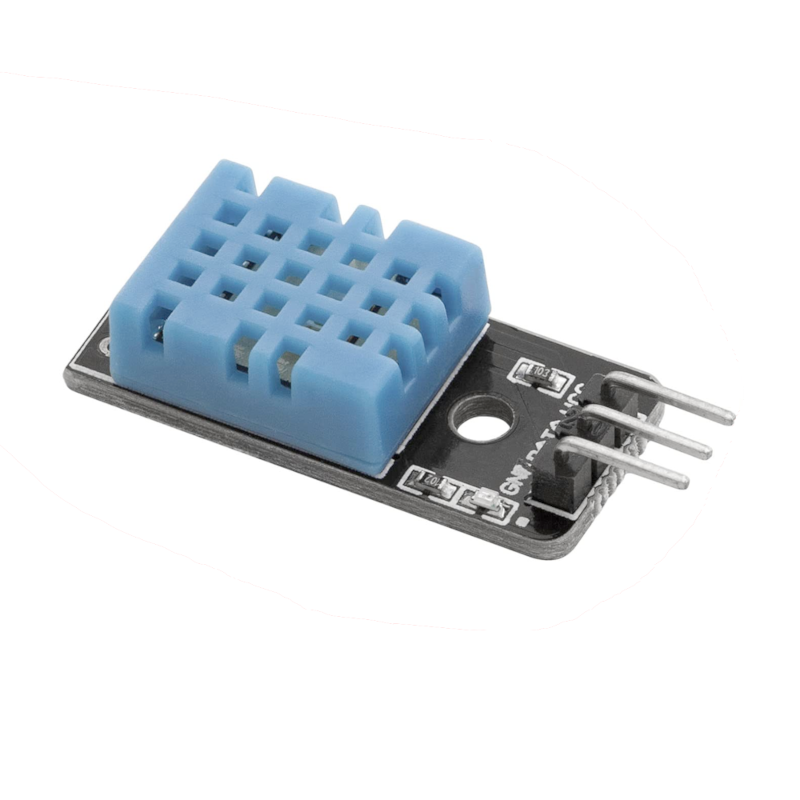

DS18B20 Dallas Temperature SensorDS18B20 Dallas Temperature Sensor Environment$2 → KY-001 Temperature Sensor ModuleKY-001 Temperature Sensor Module KY-0xx module$3 → KY-015 Temperature and Humidity Sensor ModuleKY-015 Temperature and Humidity Sensor Module KY-0xx module$2 →

1-Wire on the ESP32

The 1-Wire protocol allows digital data communication over a single data line, making it highly efficient for minimal wiring applications. It’s most commonly used with sensors like the DS18B20 digital temperature sensor.

With only one data pin and a ground connection, this protocol is ideal for low-cost temperature sensing with ESP32 or Arduino. Libraries like OneWire and DallasTemperature simplify integration into the Arduino IDE.

1-Wire also supports multiple devices on a single bus, thanks to unique addresses assigned to each sensor.

At a glance
In the catalog3 sensors
Top categoryKY-0xx module (2)
