AirM2M_CORE_ESP32C3
Compact ESP32-C3 core board - suitable for integrating Wi-Fi and BLE into custom embedded designs.
51 × 21 mm
ESP32-C3
RISC-V MCU
160MHz
clock
4MB
flash
400KB
SRAM
12· 6 ADC
GPIO
BLE 5.0+ WiFi
radio
Pinout
12 pins · 2.54 mm pitch
| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | 0 | A0 | safe | adc | |
| 2 | 1 | A1 | safe | adc | |
| 3 | 2 | SCKA2 | strapping | adc · spi | |
| 4 | 3 | MOSIA3 | safe | adc · spi | |
| 5 | 4 | SDAA4 | strapping | adc · i2c | |
| 6 | 5 | SCLA5 | strapping | adc · i2c | |
| 7 | 7 | SS | strapping | spi | |
| 8 | 10 | MISO | safe | spi | |
| 9 | 12 | LED_BUILTIN | strapping | - | |
| 10 | 13 | LED_BUILTIN_AUX | strapping | - | |
| 11 | 20 | RX | uart | uart | |
| 12 | 21 | TX | uart | uart |
Start with these
4 pins with no boot or system involvementA0A1MOSIA3MISO
Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
sampled at boot or shared with debug/serial| Pin | Label | What to know | Role |
|---|---|---|---|
| SCK | GPIO2 | Must be held high during boot (if low on reset, normal flash boot may fail) | Strapping |
| SDA | MTMS | Used during boot; JTAG TMS for debugging; acts as Quad-SPI flash IO (hold data line) in internal-flash variants | JTAG |
| SCL | MTDI | Used during boot; JTAG TDI for debugging; acts as Quad-SPI flash IO (write-protect data line) in internal-flash variants | JTAG |
| SS | MTDO | Used during boot; JTAG TDO for debugging; acts as Quad-SPI flash IO (data line) in internal-flash variants | JTAG |
| RX | U0RXD | Used as UART0 receive (console/bootloader); repurposing may disable serial programming and debug logs | UART |
| TX | U0TXD | Used as UART0 transmit (console/bootloader); repurposing may disable serial console output and printing | UART |
Only if you know the tricks
wired to flash or USB - expect a fight| Pin | Label | What to know | Role |
|---|---|---|---|
| LED_BUILTIN | SPIHD | Connected to flash HOLD#; not recommended for other use as it’s reserved for flash communication | Flash |
| LED_BUILTIN_AUX | SPIWP | Connected to flash WP#; not recommended for other use (used to interface with SPI flash) | Flash |
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

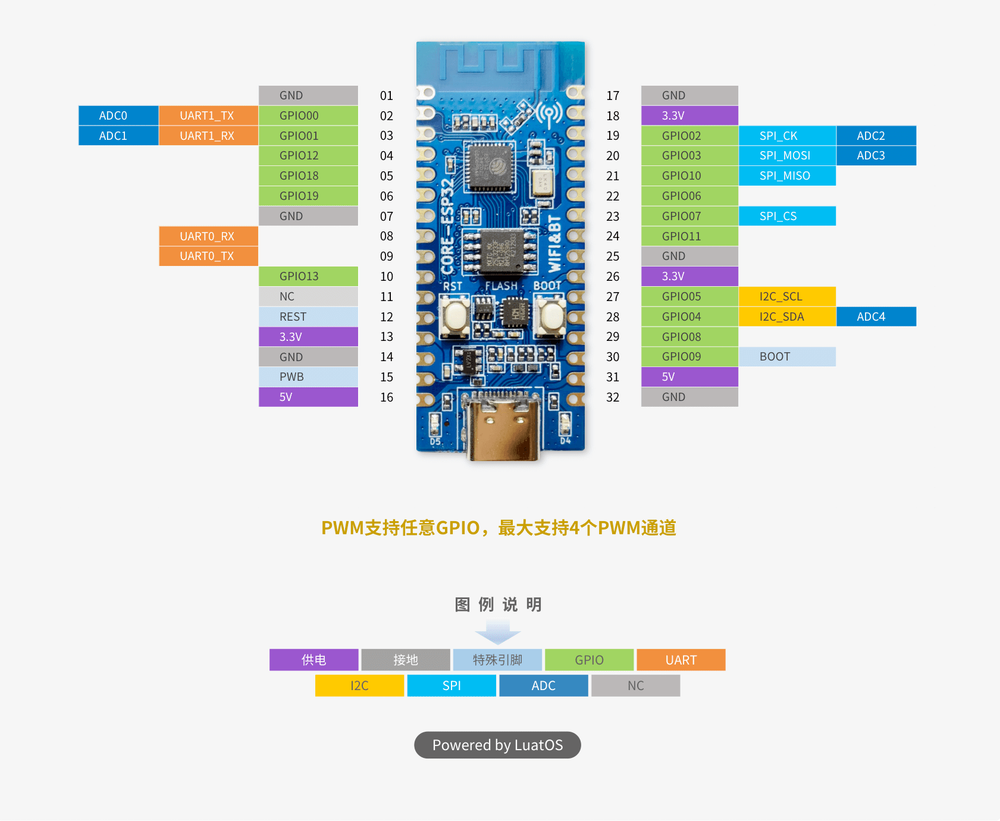

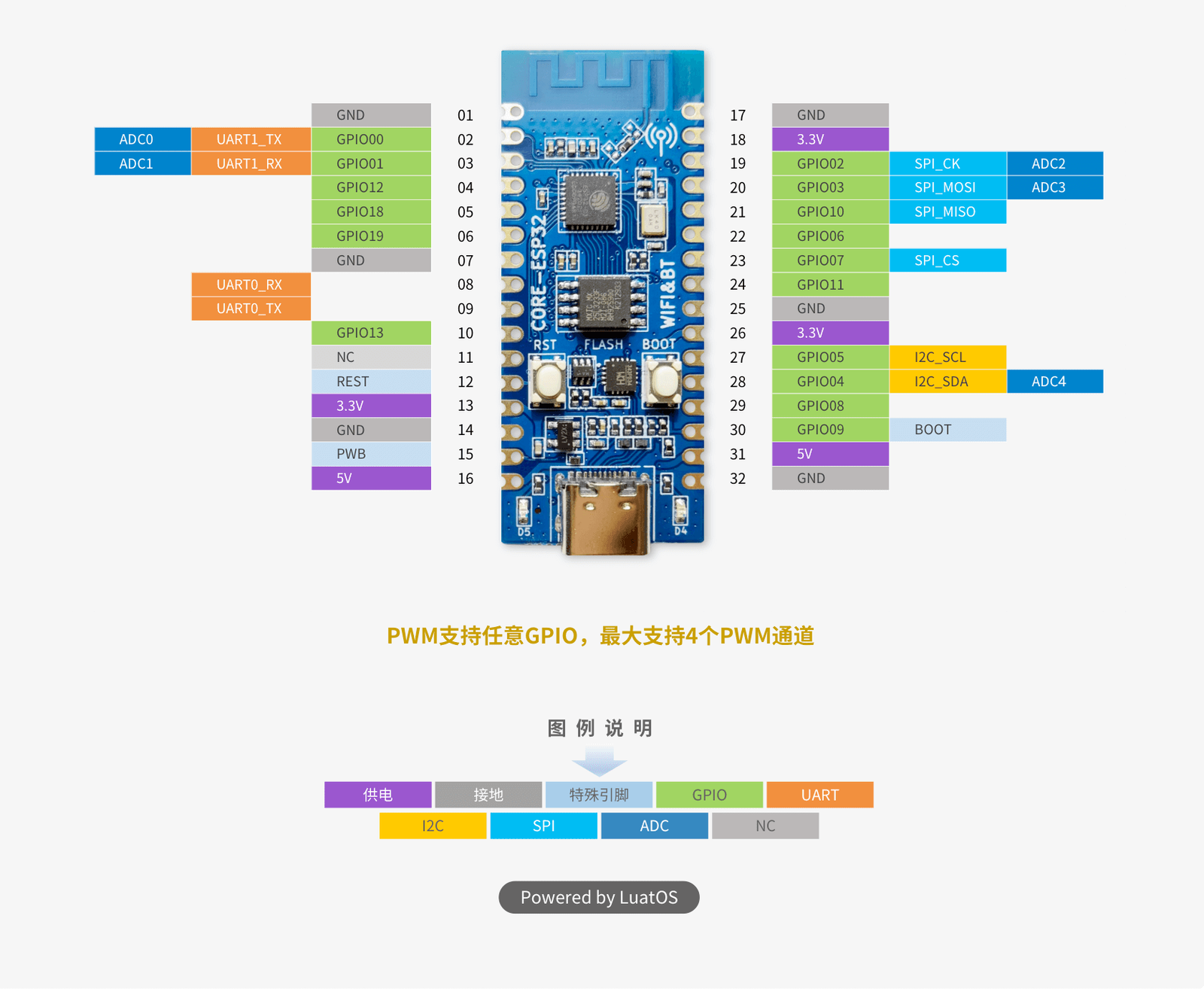

Pinout notes The AirM2M_CORE_ESP32C3 pinout brings out 12 GPIO pins at a 2.54 mm pitch - every one of them usable in your project. For peripherals, I²C is mapped to SDA on…
The AirM2M_CORE_ESP32C3 pinout brings out 12 GPIO pins at a 2.54 mm pitch - every one of them usable in your project.
For peripherals, I²C is mapped to SDA on GPIO4 and SCL on GPIO5; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO21 and GPIO20 cover serial logging and flashing.
On the analog side there are 6 ADC-capable pins for sensors and battery monitoring.
If you want zero surprises, A0, A1, MOSI and MISO are free of any such role - the safest first picks. 6 of the exposed pins carry boot-time or system duties on the ESP32-C3 (SCK, SDA, SCL and 3 more).
Getting started
flash your first firmware in ~2 minutes1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
The onboard LED on GPIO0 blinks - swap the pin if your board's LED differs.
Set these in Tools · leave everything else at default
Arduino IDE 2.x — Tools Copy
Board: "ESP32C3 Dev Module"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP / 1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option — leave at default
Board: ESP32C3 Dev Module Flash Size: 4MB (32Mb) Flash Mode: DIO Partition Scheme: Default 4MB with spiffs (1.2MB APP / 1.5MB SPIFFS) Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32C3 Dev Module
// blink the onboard LED
void setup() {
pinMode(0, OUTPUT);
}
void loop() {
digitalWrite(0, HIGH); delay(500);
digitalWrite(0, LOW); delay(500);
}board to selectesp32-c3-devkitm-1⧉ copy
[env:AirM2M_CORE_ESP32C3]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600Find it: PlatformIO Home ▸ Boards, search
esp32-c3-devkitm-1 — or type it after board =.board to selectesp32-c3-devkitm-1⧉ copy
esp32:
board: esp32-c3-devkitm-1
variant: AirM2M_CORE_ESP32C3
framework:
type: esp-idf
# blink - GPIO0
output:
- platform: gpio
pin: 0
id: led_out
light:
- platform: binary
name: "LED"
output: led_outFind it: search ESPHome's board list for
esp32-c3-devkitm-1 (same ids as PlatformIO).esptool doesn't pick board settings — a prebuilt .bin already has them baked in. This is just the raw flash command.
esptool.py --chip esp32c3 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x0 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Build details: sketch space 1310720 B · data 327680 B · DIO
Specifications
ESP32-C3 · 51 × 21 mmCompute
MCU
ESP32-C3 · RISC-V
Clock
160 MHz
SRAM · Flash
400 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.0 LE
Antenna
PCB
I/O
GPIO · ADC
12 · 6
UART · I²C · SPI
2 · 1 · 3
PWM
6 channels
Power
USB
USB-C
Serial
CH343
Boot address
0x0
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB
51 × 21 mm · pin pitch 2.54 mm
The AirM2M_CORE_ESP32C3 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.
