CYD ESP32-8048S043

ESP32-S3 board with high-res 4.3" screen - best for complex visual interfaces, monitoring dashboards, and smart appliances.

USB-C

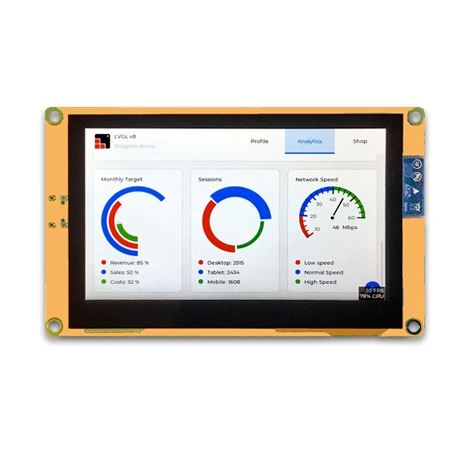

CYD ESP32-8048S043 board
123 × 74 mm
ESP32-S3
MCU
240MHz
clock
16MB
flash
512KB
SRAM
32· 7 ADC
GPIO
BLE 5.4+ WiFi
radio
On this page

CYD ESP32-8048S043 Pinout

36 pins

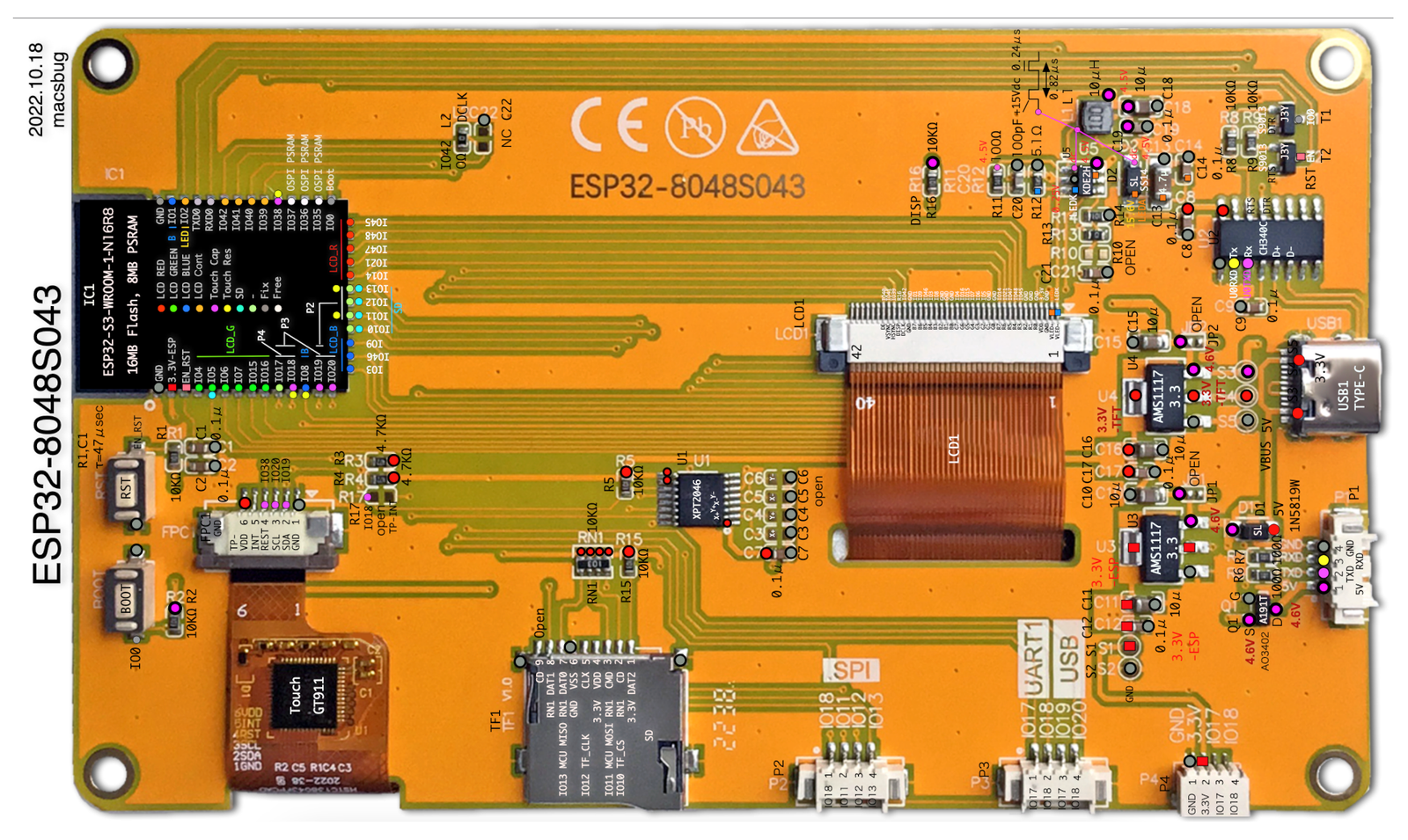

CYD ESP32-8048S043 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
1-5VVINpower-P1 socket pin 1 - 5V input, switched onto the 5V rail through Q1 (AO3401)
2-3V33.3Vpower-P4 socket pin 2 - the 3.3V-ESP rail (U3 AMS1117)
3-GNDground-Ground - P1 pin 4 and P4 pin 1
443TXIO43U0TXDuartuartP1 socket pin 2 (silk TXD) - U0TXD through a 100 ohm resistor, shared with the CH340C USB-serial bridge
544RXIO44U0RXDuartuartP1 socket pin 3 (silk RXD) - U0RXD through a 100 ohm resistor, shared with the CH340C USB-serial bridge
619IO19SDAuartadc · i2cP2 pin 1 and P3 pin 3. GT911 touch SDA with a 4.7k pull-up, so usable as a shared I2C bus; also the S3 native USB D-. The board silk prints IO18 over P2 pin 1 - the schematic, macsbug and esp3d all say IO19
711IO11MOSIstrappingadc · spiP2 pin 2 - the microSD MOSI, so only usable as another device on that SPI bus
812IO12SCLKstrappingadc · spiP2 pin 3 - the microSD clock, so only usable as another device on that SPI bus
913IO13MISOstrappingadc · spiP2 pin 4 - the microSD MISO, so only usable as another device on that SPI bus
1017IO17GPIO17uartadc · uartP3 pin 1 and P4 pin 3 (the same net) - free; the silk calls P3 UART1
1118IO18GPIO18uartadc · uartP3 pin 2 and P4 pin 4 (the same net), with a 10k pull-up (R5). Free as shipped - R17, the 0R link to the GT911 INT, is left open; where U1 (XPT2046) is fitted this is also its PENIRQ
1220IO20SCLuartadc · i2cP3 pin 4 - GT911 touch SCL with a 4.7k pull-up, so usable as a shared I2C bus; also the S3 native USB D+
130BOOTIO0GPIO0control-BOOT button - GPIO0 strapping pin (hold low at reset to enter the bootloader); on no socket
1438safe-GT911 touch reset (and the XPT2046 chip select where U1 is fitted); not on any socket
1510strapping-microSD chip select; not on any socket
162safe-Backlight enable into the boost LED driver (U5 EN through R13); PWM it to dim. Not on any socket
1745strapping-RGB panel data R3, and a strapping pin; not free
1848strapping-RGB panel data R4; not free
1947strapping-RGB panel data R5; not free
2021safe-RGB panel data R6; not free
2114strapping-RGB panel data R7; not free
225safe-RGB panel data G2; not free
236safe-RGB panel data G3; not free
247safe-RGB panel data G4; not free
2515safe-RGB panel data G5; not free
2616safe-RGB panel data G6; not free
274safe-RGB panel data G7; not free
288safe-RGB panel data B3; not free
293strapping-RGB panel data B4, and a strapping pin; not free
3046strapping-RGB panel data B5, and a strapping pin; not free
319strapping-RGB panel data B6; not free
321safe-RGB panel data B7; not free
3339strapping-RGB panel HSYNC; not free
3441strapping-RGB panel VSYNC; not free
3540strapping-RGB panel DE (data enable); not free
3642strapping-RGB panel PCLK (pixel clock, through L2); not free
33 GPIOs broken out 2 free · 9 need care · 22 to avoid

Start with these

2 pins with no boot or system involvement
IO17IO18

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

9 pins · 6 things to know
TXGPIO43 UART0 transmit pin (U0TXD), default serial console TX UART

Used for bootloader output and UART console logs. If repurposed, you will lose the default serial output (and programming via UART0).

RXGPIO44 UART0 receive pin (U0RXD), default serial console RX UART

Used for bootloader input (download mode via serial). If repurposed, you cannot use the default UART0 download mode for programming the chip.

IO19IO20 Used by the touch controller (GT911) onboard hardware

Wired to the touch controller (GT911) on this board. The pin is yours if you give that up, but nothing else can share it.

  • IO19P2 pin 1 and P3 pin 3. GT911 touch SDA with a 4.7k pull-up, so usable as a shared I2C bus; also the S3 native USB D-. The board silk prints IO18 over P2 pin 1 - the schematic, macsbug and esp3d all say IO19
  • IO20P3 pin 4 - GT911 touch SCL with a 4.7k pull-up, so usable as a shared I2C bus; also the S3 native USB D+
IO11IO12IO13 Used by the microSD card slot onboard hardware

Wired to the microSD card slot on this board. The pin is yours if you give that up, but nothing else can share it.

  • IO11P2 pin 2 - the microSD MOSI, so only usable as another device on that SPI bus
  • IO12P2 pin 3 - the microSD clock, so only usable as another device on that SPI bus
  • IO13P2 pin 4 - the microSD MISO, so only usable as another device on that SPI bus
BOOTGPIO0 Bootstrapping pin (Chip boot mode selection) Strapping

Must be pulled high (default) or low (to enter UART download mode) at reset. Using it for other functions can interfere with boot mode configuration.

GPIO2 Backlight enable into the boost LED driver (U5 EN through R13); PWM it to dim. Not on any socket onboard hardware

Wired to the display backlight on this board. The pin is yours if you give that up, but nothing else can share it.

Only if you know the tricks

22 pins · 3 things to know
GPIO38 GT911 touch reset (and the XPT2046 chip select where U1 is fitted); not on any socket onboard hardware

Wired to the touch controller (GT911) on this board, which is soldered down. Driving it from your own code breaks that function.

GPIO10 microSD chip select; not on any socket onboard hardware

Wired to the microSD card slot on this board, which is soldered down. Driving it from your own code breaks that function.

GPIO45GPIO48GPIO47GPIO21GPIO14GPIO5GPIO6GPIO7GPIO15GPIO16GPIO4GPIO8GPIO3GPIO46GPIO9GPIO1GPIO39GPIO41GPIO40GPIO42 Used by Display (ST7262 RGB) onboard hardware

Wired to Display (ST7262 RGB) on this board, which is soldered down. Driving it from your own code breaks that function.

  • RGB panel data R3, and a strapping pin; not free
  • RGB panel data R4; not free
  • RGB panel data R5; not free
  • RGB panel data R6; not free
  • RGB panel data R7; not free
  • RGB panel data G2; not free
  • RGB panel data G3; not free
  • RGB panel data G4; not free
  • RGB panel data G5; not free
  • RGB panel data G6; not free
  • RGB panel data G7; not free
  • RGB panel data B3; not free
  • RGB panel data B4, and a strapping pin; not free
  • RGB panel data B5, and a strapping pin; not free
  • RGB panel data B6; not free
  • RGB panel data B7; not free
  • RGB panel HSYNC; not free
  • RGB panel VSYNC; not free
  • RGB panel DE (data enable); not free
  • RGB panel PCLK (pixel clock, through L2); not free
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

The CYD ESP32-8048S043 pinout brings out 36 pins - 32 usable GPIO alongside the 5V, 3V3 and GND power rails.

Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO19 and SCL on GPIO20, while TX/RX on GPIO43 and GPIO44 cover serial logging and flashing.

Beyond plain digital I/O you get 7 ADC-capable pins for sensors and battery monitoring.

9 of the exposed pins carry boot-time or system duties on the ESP32-S3 (TX, RX, IO19 and 6 more) - check the guidance above before wiring anything to them. IO17 and IO18 are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Install your USB-serial driver (CH340 / CP210x) if no port appears. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO38 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32S3 Dev Module"▸
Flash Size: "16MB (128Mb)"▸
Flash Mode: "QIO"▸
PSRAM: "OPI PSRAM"▸
Partition Scheme: "16M Flash (3MB APP/9.9MB FATFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32S3 Dev Module
Flash Size: 16MB (128Mb)
Flash Mode: QIO
PSRAM: OPI PSRAM
Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32S3 Dev Module
blink.ino Copy
// toggle GPIO38 - wire an LED and resistor to it
void setup() {
  pinMode(38, OUTPUT);
}
void loop() {
  digitalWrite(38, HIGH); delay(500);
  digitalWrite(38, LOW);  delay(500);
}
board to selectesp32-s3-devkitc-1⧉ copy
platformio.ini Copy
[env:cyd-esp32-8048s043]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
board_build.arduino.memory_type = qio_opi
build_flags = -DBOARD_HAS_PSRAM
Find it: PlatformIO Home ▸ Boards, search esp32-s3-devkitc-1 - or type it after board =.
board to selectesp32-s3-devkitc-1⧉ copy
device.yaml Copy
esp32:
  board: esp32-s3-devkitc-1
  variant: esp32s3
  framework:
    type: esp-idf
psram:
  mode: octal
  speed: 80MHz

# blink - GPIO38
output:
  - platform: gpio
    pin: 38
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32-s3-devkitc-1 (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32s3 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x0 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 6553600 B · data 327680 B · QIO

Specifications

ESP32-S3 · 123 × 74 mm · vs other ESP32 chips →
Compute
MCU
ESP32-S3
Clock
240 MHz
SRAM · Flash
512 KB · 16MB · 8MB (OPI) PSRAM
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.4 LE
Antenna
PCB
I/O
GPIO · ADC
32 · 7
UART · I²C · SPI
3 · 2 · 2
PWM
8 channels
Power
USB
USB-C
Serial
CH340C
Boot address
0x0
Display
Screen
IPS LCD · 4.3" · 800x480
Driver
ST7262
Touch
GT911
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
QIO · QIO
Sketch · Data
6.25 MB · 320 KB

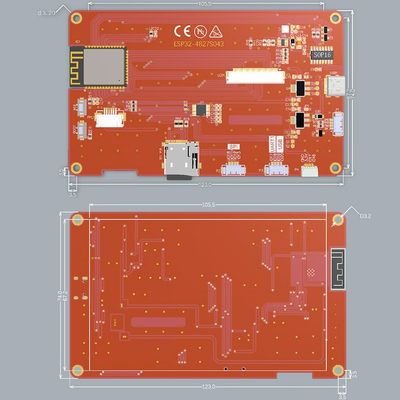

Dimensions

74 mm123 mm
123 × 74 mm
The CYD ESP32-8048S043 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is QIO with QIO boot mode. The maximum sketch size is 6.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32-S3 - a dual-core Xtensa with vector extensions suited to AI workloads. Sibling CYD boards cover the ESP32-C3 and ESP32, so you can change radios or horsepower without changing the footprint.

At $40.00 it's on the expensive side for a CYD board - most land around $22.

Around the module: 8MB (OPI) PSRAM, an IPS LCD 4.3" 800x480 display with touch, a microSD slot and Reset/Boot buttons.
