Espressif ESP32-H2-DevKitM-1

Official ESP32-H2 dev board with 802.15.4 and BLE - perfect for Zigbee, Thread, and secure IoT development.

2× USB-C Native USB

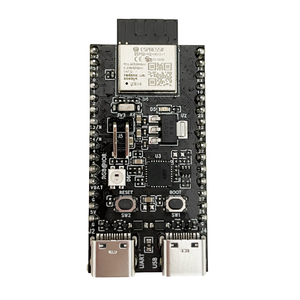

Espressif ESP32-H2-DevKitM-1 board
48.26 × 25.4 mm
ESP32-H2
RISC-V MCU
96MHz
clock
4MB
flash
320KB
SRAM
19· 5 ADC
GPIO
BLE 5.0+ WiFi
radio
On this page

Espressif ESP32-H2-DevKitM-1 Pinout

30 pins · 2.54 mm pitch

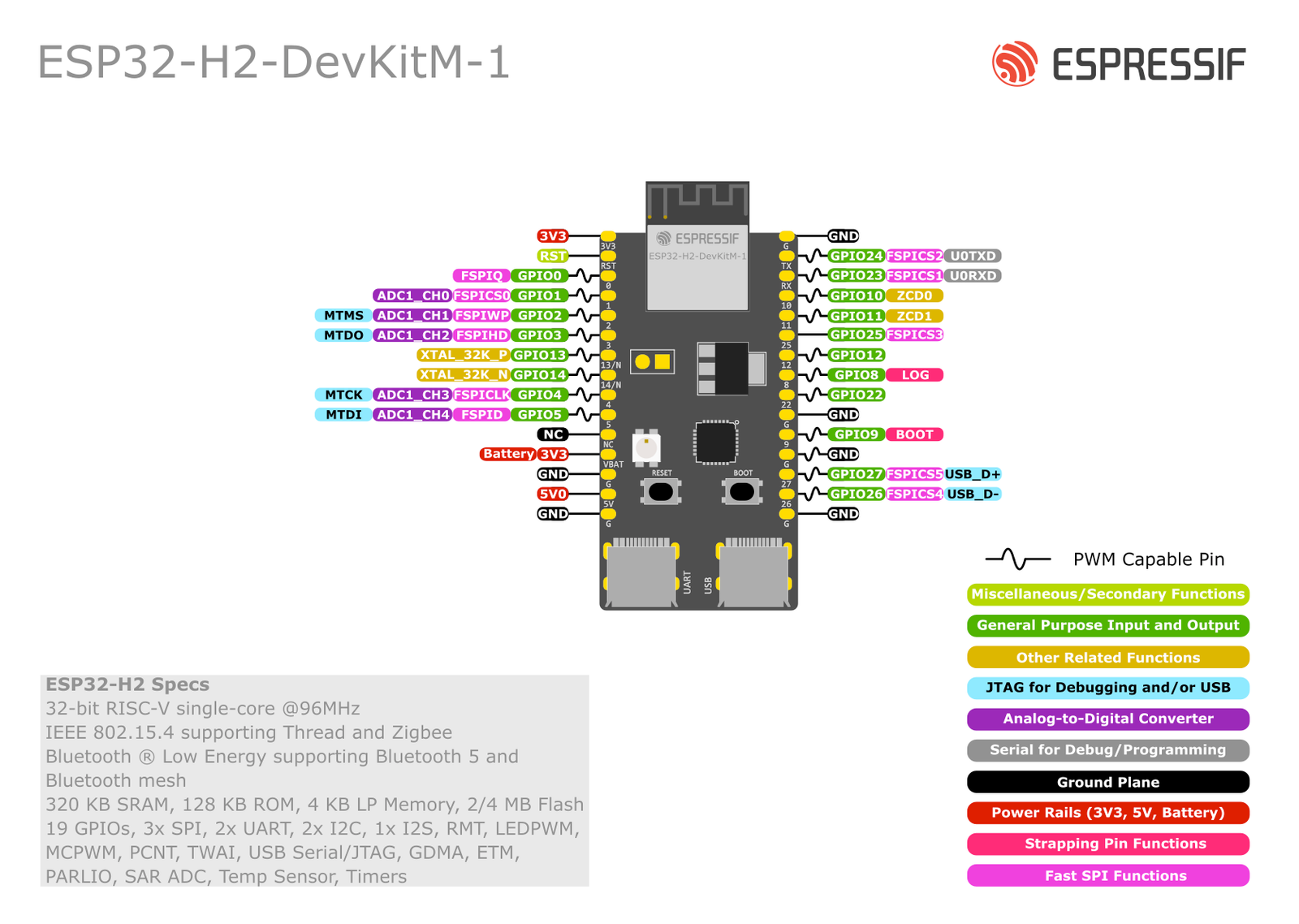

Espressif ESP32-H2-DevKitM-1 pinout diagram, high resolution: all 30 pins, with GPIO numbers, ADC channels and strapping pins
Espressif ESP32-H2-DevKitM-1 pinout, drawn by ESPboards from the ESP32-H2 Series Datasheet v1.3.
Espressif ESP32-H2-DevKitM-1 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
1-3V33.3Vpower-3.3V regulated output
2-RSTENcontrol-Chip reset (active low)
30IO0strappingpwmFast SPI FSPIQ
41IO1A1strappingadc · pwmADC1_CH0; FSPICS0
52IO2A2strappingadc · pwmADC1_CH1; JTAG MTMS; FSPIWP
63IO3A3strappingadc · pwmADC1_CH2; JTAG MTDO; FSPIHD
713IO13safepwm32.768 kHz crystal XTAL_32K_P
814IO14safepwm32.768 kHz crystal XTAL_32K_N
94IO4A4strappingadc · pwmADC1_CH3; JTAG MTCK; FSPICLK
105IO5A5strappingadc · pwmADC1_CH4; JTAG MTDI; FSPID
11-NC-Not connected
12-VBAT3V3power-Battery / RTC 3.3V input
13-GNDground-Ground
14-5Vpower-5V input (from USB) / output
15-GNDground-Ground
16-GNDground-Ground
1724IO24TXuartuart · pwmUART0 TX; FSPICS2
1823IO23RXuartuart · pwmUART0 RX; FSPICS1
1910IO10safepwmZero-crossing detector ZCD0
2011IO11safepwmZero-crossing detector ZCD1
2125IO25strappingpwmFast SPI FSPICS3
2212IO12safepwmGeneral-purpose GPIO
238IO8strappingpwmOnboard RGB LED; ROM boot log (LOG)
2422IO22safepwmGeneral-purpose GPIO
25-GNDground-Ground
269IO9strappingpwmBOOT button
27-GNDground-Ground
2827IO27uartpwmUSB D+ (native USB Serial/JTAG); FSPICS5
2926IO26uartpwmUSB D- (native USB Serial/JTAG); FSPICS4
30-GNDground-Ground
Download the Espressif ESP32-H2-DevKitM-1 pinout Free to use and share for non-commercial work, as long as you credit espboards.dev. License.
19 GPIOs broken out 6 free · 11 need care · 2 to avoid

Start with these

6 pins with no boot or system involvement
IO13IO14IO10IO11IO12IO22

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

11 pins · 10 things to know
IO0IO1 General-purpose SPI2 (FSPI) IO MUX pins Other

IO MUX pin of the general-purpose SPI2 (FSPI) bus. The H2 runs its in-package flash on GPIO15-20, which the QFN32 package does not route out, so this pin is free unless your board wires an SPI peripheral to FSPI.

  • IO0General-purpose SPI2 (FSPI) IO MUX pin - data out (FSPIQ)
  • IO1General-purpose SPI2 (FSPI) IO MUX pin - chip select (FSPICS0)
IO2 JTAG TMS signal; also the general-purpose SPI2 (FSPI) write-protect/data line (FSPIWP) JTAG

Default JTAG TMS line - using it as GPIO disables external JTAG debugging. It is not a flash pin: the H2 keeps its in-package flash on GPIO15-20, which the QFN32 package does not route out.

IO3 JTAG TDO signal; also the general-purpose SPI2 (FSPI) hold/data line (FSPIHD) JTAG

Default JTAG TDO line - using it as GPIO disables external JTAG debugging. It is not a flash pin: the H2 keeps its in-package flash on GPIO15-20, which the QFN32 package does not route out.

IO4 JTAG TCK signal; also the general-purpose SPI2 (FSPI) clock (FSPICLK) JTAG

Default JTAG TCK line - using it as GPIO disables external JTAG debugging. It is not a flash pin: the H2 keeps its in-package flash on GPIO15-20, which the QFN32 package does not route out.

IO5 JTAG TDI signal; also the general-purpose SPI2 (FSPI) data in (FSPID) JTAG

Default JTAG TDI line - using it as GPIO disables external JTAG debugging. It is not a flash pin: the H2 keeps its in-package flash on GPIO15-20, which the QFN32 package does not route out.

IO24 UART0 TXD (transmit) pin, default serial console output. UART

Often used for boot log output and serial debugging; repurposing it can disable serial output of boot messages and interfere with console debugging.

IO23 UART0 RXD (receive) pin, default serial console input. UART

Often used for the serial console and bootloader input; repurposing it may conflict with UART communication for programming or debugging.

IO25 Bootstrapping pin; selects JTAG signal source (USB Serial/JTAG controller vs. external JTAG). Strapping

Used during boot to determine the JTAG interface source; this pin has no internal pull-up/down, so it must not be left floating (an external resistor drives it high/low to avoid unintended JTAG mode selection).

IO8 Bootstrapping pin; controls chip boot mode and ROM debug message printing. Strapping

Must be held at the proper logic level on reset to select the correct boot mode and enable/disable bootloader log output.

IO9 Bootstrapping pin; controls chip boot mode (with GPIO8). Strapping

Must be pulled high on reset for normal SPI flash boot (pulling it low while GPIO8 is high forces the chip into download/programming mode).

Only if you know the tricks

2 pins · 2 things to know
IO27 USB D+ connection pin (with internal USB pull-up). USB

By default, this pin is connected to the internal USB Serial/JTAG controller; using it as a general-purpose IO would disable the USB functionality used for debugging/programming.

IO26 USB D- connection pin (USB Serial/JTAG controller interface). USB

By default, this pin is connected to the chip's internal USB Serial/JTAG peripheral; using it as a general-purpose IO requires disabling or reconfiguring that USB interface.

These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.

Across 30 pins (2.54 mm pitch), the Espressif ESP32-H2-DevKitM-1 exposes 19 GPIO plus 3V3, VBAT, GND and 5V for power.

Peripheral wiring is straightforward: TX/RX on GPIO24 and GPIO23 cover serial logging and flashing.

Beyond plain digital I/O you get 5 ADC-capable pins for sensors and battery monitoring and PWM on every GPIO.

11 of the exposed pins carry boot-time or system duties on the ESP32-H2 (IO0, IO1, IO2 and 8 more) - check the guidance above before wiring anything to them. IO13, IO14, IO10, IO11 and 2 more are free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Native USB - shows up as a port right away, no driver needed. Not detected? Hold BOOT while plugging in.
2
Match & flash
Set the Tools options shown, then click Upload.
3
Verify it runs
GPIO13 toggles - wire an LED and resistor to it, or change the pin to your board's own LED.
Set these in Tools · leave everything else at default
Arduino IDE 2.x - Tools Copy
Board: "ESP32H2 Dev Module"▸
USB CDC On Boot: "Enabled"▸
Flash Size: "4MB (32Mb)"▸
Flash Mode: "DIO"▸
Partition Scheme: "Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)" (default)▸
Upload Speed: "921600"▸
▸ every other Tools option - leave at default
Board: ESP32H2 Dev Module
USB CDC On Boot: Enabled
Flash Size: 4MB (32Mb)
Flash Mode: DIO
Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
Upload Speed: 921600
Find it: Tools ▸ Board ▸ ESP32 Arduino ▸ ESP32H2 Dev Module
blink.ino Copy
// toggle GPIO13 - wire an LED and resistor to it
void setup() {
  pinMode(13, OUTPUT);
}
void loop() {
  digitalWrite(13, HIGH); delay(500);
  digitalWrite(13, LOW);  delay(500);
}
board to selectesp32-h2-devkitm-1⧉ copy
platformio.ini Copy
[env:esp32-h2-devkitm-1]
platform = https://github.com/pioarduino/platform-espressif32/releases/download/stable/platform-espressif32.zip
board = esp32-h2-devkitm-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
Find it: PlatformIO Home ▸ Boards, search esp32-h2-devkitm-1 - or type it after board =.
board to selectesp32-h2-devkitm-1⧉ copy
device.yaml Copy
esp32:
  board: esp32-h2-devkitm-1
  variant: esp32h2
  framework:
    type: esp-idf

# blink - GPIO13
output:
  - platform: gpio
    pin: 13
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
Find it: search ESPHome's board list for esp32-h2-devkitm-1 (same ids as PlatformIO).
esptool doesn't pick board settings - a prebuilt .bin already has them baked in. This is just the raw flash command.
terminal Copy
esptool.py --chip esp32h2 --port /dev/ttyACM0 \
  --baud 921600 write_flash 0x0 firmware.bin
--port = your /dev/tty* (macOS/Linux) or COMx (Windows).
Build details: sketch space 1310720 B · data 327680 B · DIO

Downloads

Free for non-commercial use, credit espboards.dev · License

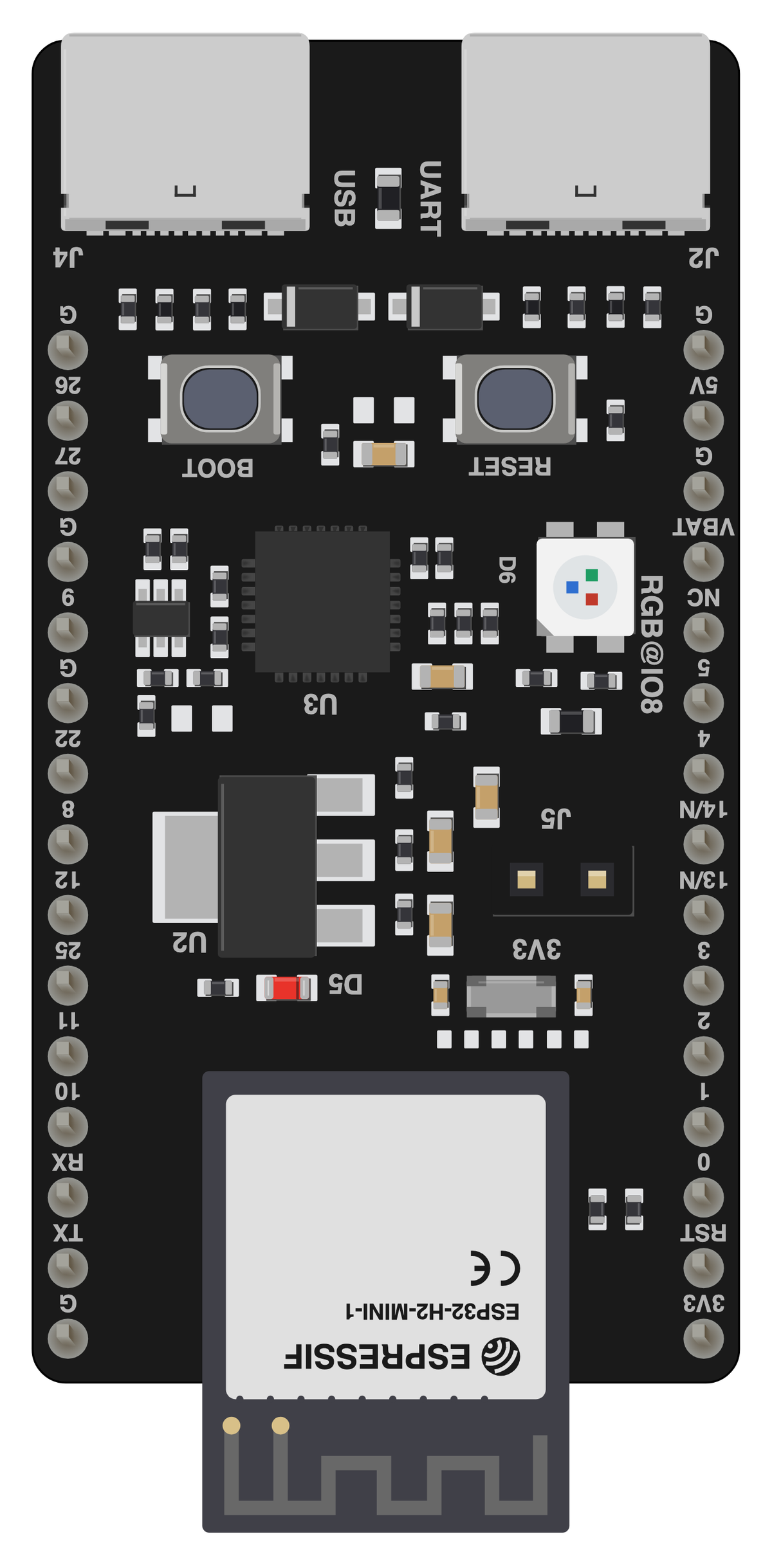

Espressif ESP32-H2-DevKitM-1 board illustration, front

Board illustration

The bare Espressif ESP32-H2-DevKitM-1 board drawn to scale at 48.26 × 25.4 mm, with no pin labels on it. Made for slide decks, wiring diagrams and project write-ups where a photo is too busy. Take the scalable SVG for print or editing, the high-resolution PNG to drop straight in, or the transparent PNG when you need it with no background behind it.

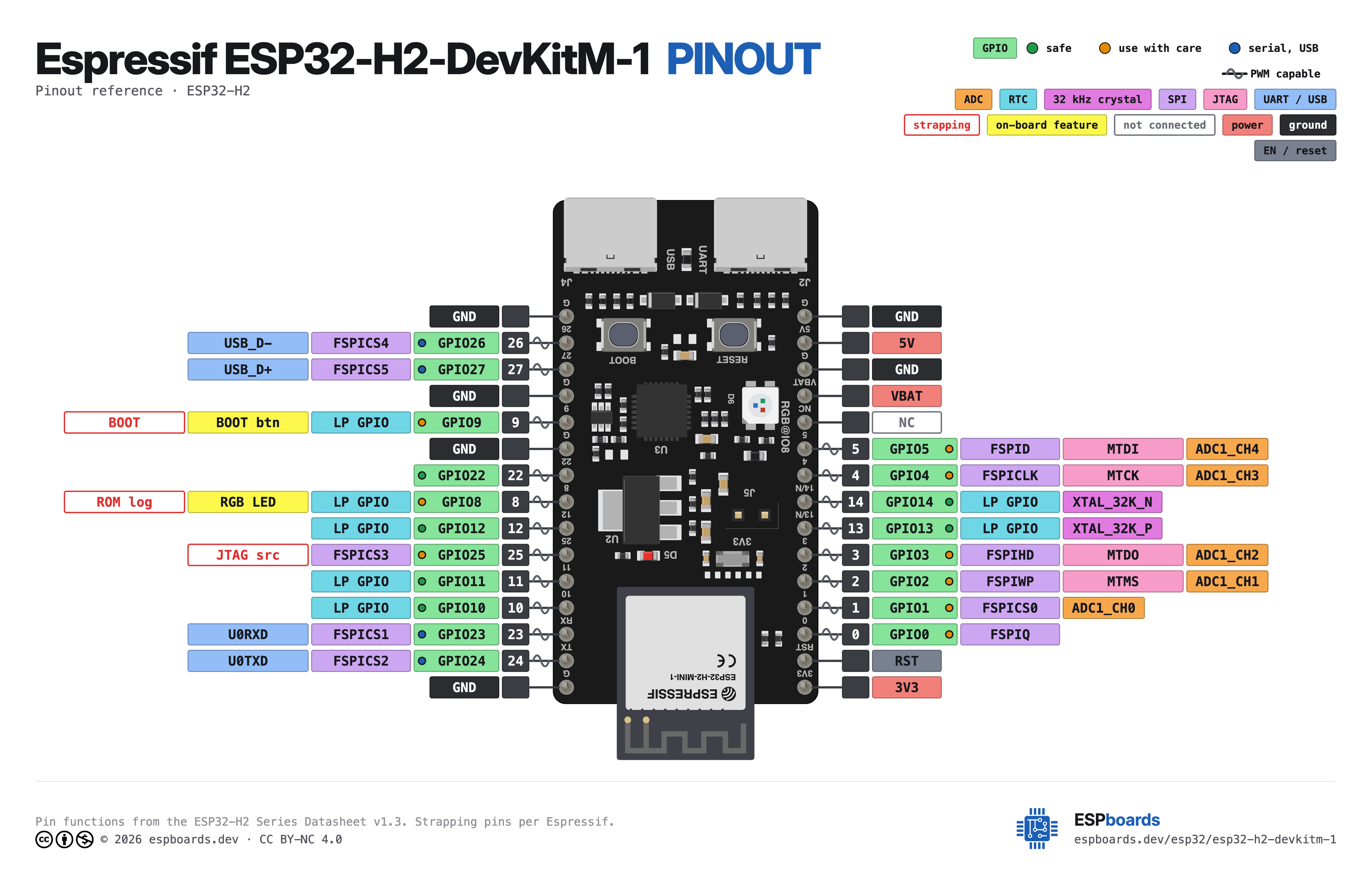

Espressif ESP32-H2-DevKitM-1 pinout diagram

Pinout diagram

Every pin on both sides of the board with its functions, drawn by ESPboards from the ESP32-H2 Series Datasheet v1.3 - the same sheet shown at the top of this page. The PNG is a high-resolution image for screens, the SVG is vector so it stays sharp at any size, and the PDF is laid out to print on A4 or Letter.

Free for non-commercial use, with the credit line kept.

Embed the Espressif ESP32-H2-DevKitM-1 pinout

Paste this where you want the diagram. Keep the credit line - it is what the licence asks for, and it is the only thing we want in return.

<figure>
  <img src="https://cdn.espboards.net/boards/esp32-h2-devkitm-1/diagram-1600.png"
       alt="Espressif ESP32-H2-DevKitM-1 pinout diagram" width="1600" loading="lazy">
  <figcaption>
    Espressif ESP32-H2-DevKitM-1 pinout by
    <a href="https://www.espboards.dev/esp32/esp32-h2-devkitm-1/">ESPboards</a>,
    <a href="https://creativecommons.org/licenses/by-nc/4.0/">CC BY-NC 4.0</a>
  </figcaption>
</figure>

Using it commercially? Ask us first - it takes one email.

Yours to use, share and adapt for non-commercial work, as long as you credit espboards.dev - the full terms and ready-made credit lines are here.

Specifications

ESP32-H2 · 48.26 × 25.4 mm · vs other ESP32 chips →
Compute
MCU
ESP32-H2 · RISC-V
Clock
96 MHz
SRAM · Flash
320 KB · 4MB
Radio
Wi-Fi
-
Bluetooth
5.0 LE
Antenna
PCB
I/O
GPIO · ADC
19 · 5
UART · I²C · SPI
2 · 2 · 1
PWM
6 channels
Power
USB
USB-C (UART) · USB-C (native)
Serial
CP2102N
Boot address
0x0
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
DIO · DIO
Sketch · Data
1.25 MB · 320 KB

Dimensions

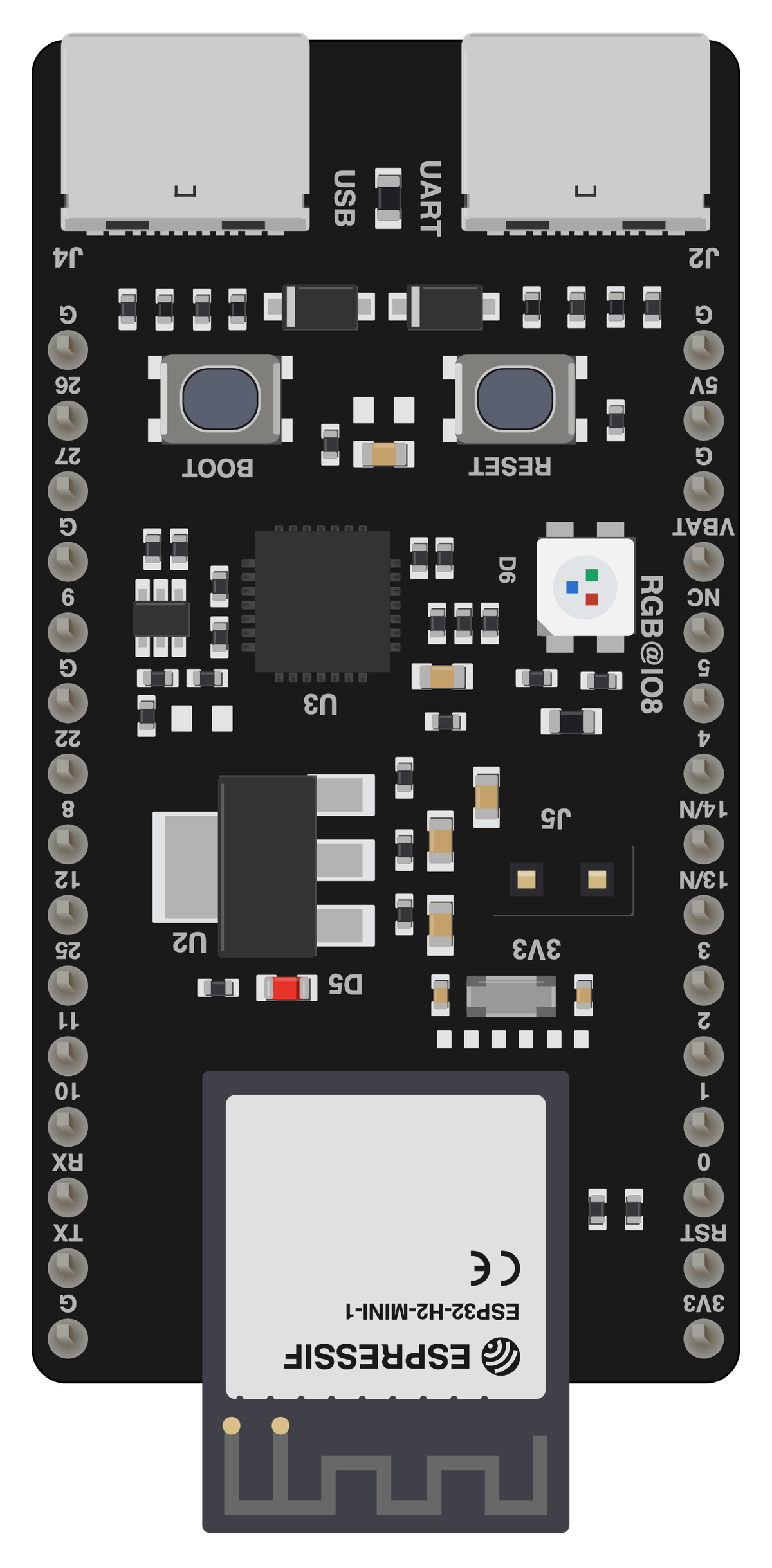

Espressif ESP32-H2-DevKitM-1 board, drawn to scale
25.4 mm48.26 mm
48.26 × 25.4 mm · pin pitch 2.54 mm
The Espressif ESP32-H2-DevKitM-1 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is DIO with DIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32-H2 - a Thread/Zigbee-focused RISC-V with no Wi-Fi at all.

Around the module: an addressable RGB LED (GPIO8) and Boot/Reset buttons.

  • 802.15.4 radio for Thread, Zigbee and Matter plus Bluetooth 5 (LE); no Wi-Fi
  • No PSRAM
