ESP32 SPI Sensors

7 sensors · wiring diagrams, specs and code examples

Every SPI sensor in the catalog, all wired and coded for the ESP32.

7 sensors Wiring diagrams Code for 5 frameworks
ESP32 quick facts SCK GPIO18MISO GPIO19MOSI GPIO23CS GPIO5 (any free GPIO works)

All SPI sensors

7 sensors

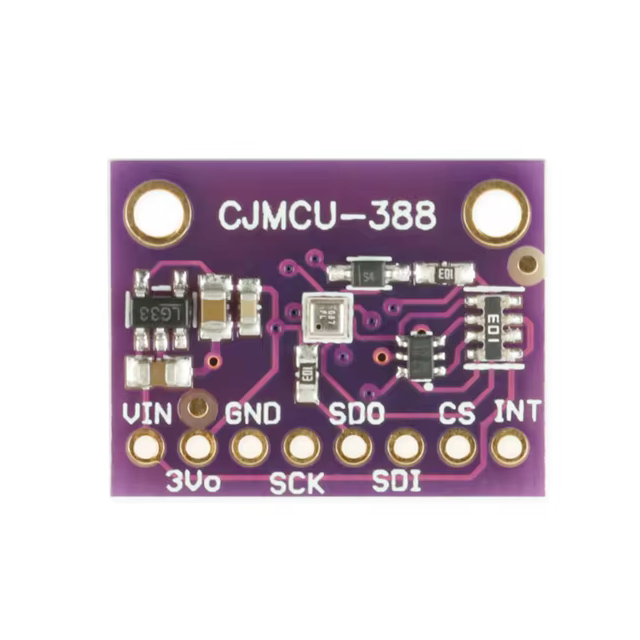

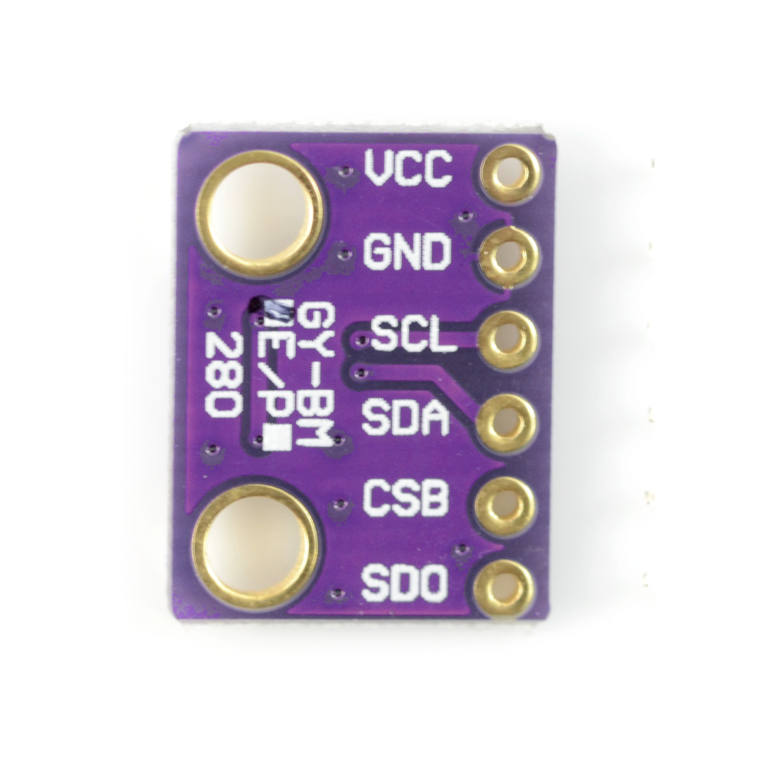

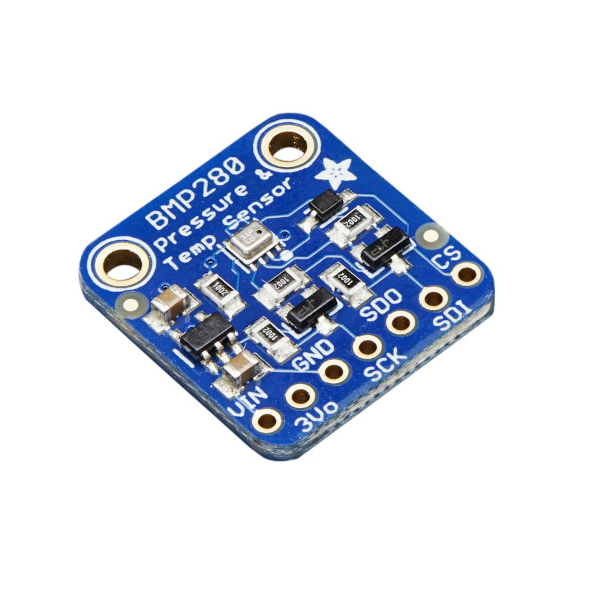

BME280 Temperature and Humidity SensorBME280 Temperature and Humidity Sensor Environment$7 → BME680 Environmental SensorBME680 Environmental Sensor Environment$15 → BME688 Environmental SensorBME688 Environmental Sensor Environment → BMP280 Barometric Pressure and Temperature SensorBMP280 Barometric Pressure and Temperature Sensor Environment$1 → BMP388 / CJMCU-388 Barometric Pressure SensorBMP388 / CJMCU-388 Barometric Pressure Sensor Environment → PN532 NFC ModulePN532 NFC Module NFC$8 → RC522 RFID/NFC ModuleRC522 RFID/NFC Module NFC$3 →

SPI on the ESP32

SPI (Serial Peripheral Interface) is a high-speed communication protocol commonly used in ESP32 and Arduino projects that require fast data transfer rates. It operates over four lines: MOSI, MISO, SCK, and CS/SS (Chip Select).

SPI is ideal for modules like SD card readers, high-resolution displays, ADC/DAC chips, and Wi-Fi transceivers. It offers faster communication than I2C but uses more pins.

Libraries like SPI.h on Arduino and built-in drivers on the ESP32 make SPI setup and integration straightforward.

At a glance
In the catalog7 sensors
Top categoryEnvironment (5)
